Specifications
Brand Name :
Firepower
Model Number :
3LT300-W
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 pcs/5 months
Delivery Time :
5 months
Packaging Details :
Wooden Box
Product Name :
IMU Test Turntable
Load capacity :
30kg
Load Plate Size :
Ø300mm(Customizable)
Angular position range :
±0~±360°
Computer Port :
RS232/RS422
Table height :
400mm
Face runout :
0.05mm
Rotary Accuracy :
±1~3''
Position Accuracy :
±1~3''
Description

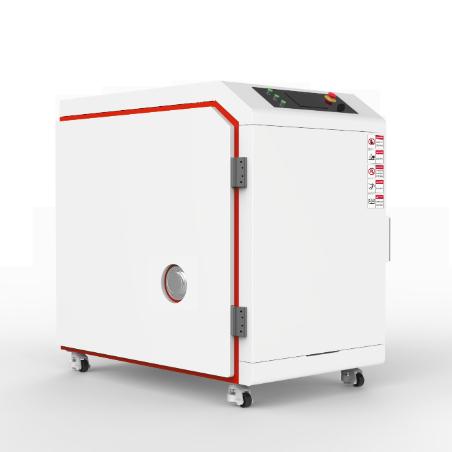

High Performance Temp Controlled Three Axis Rotary Turntables for Gyroscope INS IMU Calibration

Product Description

The three-axis turntable series is a kind of precision test equipment, which can generate motion excitation such as angular position, angular rate and angular acceleration in three directions to realize the test of the measured parts such as gyro, inertial measurement device and accelerometer. It can also realize the motion simulation of the three rotation directions of space, angular vibration, sway and other dynamic movements. The turntable control system is composed of high-performance control unit, high-precision angle measuring system, PWM digital servo amplifier and direct drive servo motor.
Main components: support, drive motor, power amplifier, angle measuring element, AD/DA card, etc. (all imported products). Structure form: The mechanical platform adopts U-O-O or U-U-T structure form. Product category: position turntable, angle shaking table, swaying table.
High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration
High Performance Temp Controlled Three Axis Rotary Turntables For Gyroscope INS IMU Calibration
Technical Parameter
Structural form
Three axis continuous rotation
Mesa material
Stainless steel/aluminum alloy(Optional)
Maximum load weight
40KG
Table size
Φ400mm
Mesa flatness
0.02mm
Table height
540mm
Rotation accuracy
±1~3″ (Optional)
Angular position range
±0〜 ±360°
Angular position accuracy
±1~3″ (Optional)
Angular resolution
0.0001°
Angular rate range
0.001〜4500°/s
Angular rate accuracy
ω＜1°/s
1<ω＜10°/s
10<ω°/s
Speed smoothness
1×10⁻³
1×10⁻⁴
5×10⁻⁵
Maximum angular acceleration
Inner4500°/s²
Middle2000°/s²
Outer1000°/s²
Rate resolution
0.0001°
Slip ring number
10~80(Optional)
System bandwidth
5~80Hz(Optional)
Slip-ring voice
0.03V
Leakage flux
±0.5mT
