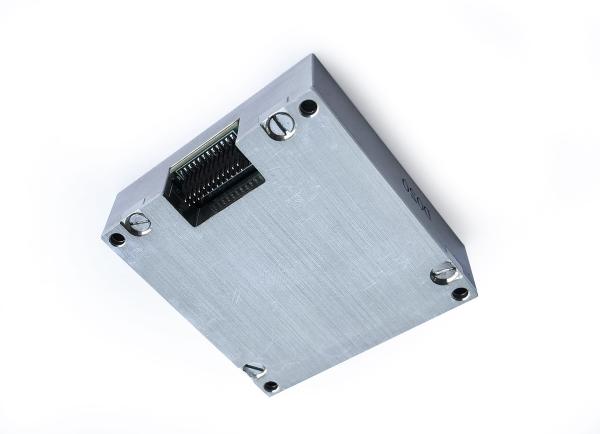

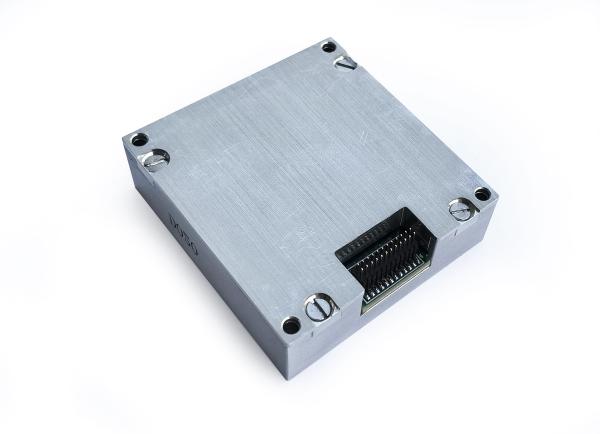

Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit
Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit
Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit
Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit
Specifications
Brand Name :
Firepower
Model Number :
KT-EX 9-1
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500/Month
Delivery Time :
1 week for sample
Packaging Details :
Sponge/Box
Gyro Range :
±500°/s
Gyro Zero Bias Stability :
0.3°/h
Random walk :
0.15°/√h
Acc Range :
±20g
Acc Zero Bias Stability :
2ug
Communication interface :
1-way SPI
Bandwidth (-3dB) :
250Hz
Power consumption :
1W
Description

Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit

Product Description

The KT-EX 9-1 inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope and a three-axis accelerometer, which is used to measure the three-axis angular rate, acceleration and other parameters of the carrier, and output the data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) through SPI according to the communication protocol.

Main Parameters

Parameter Test conditions Minimum value Typical value Maximum value Unit
Gyro Dynamic measuring range ±500 º/s
Bias instability Allan variance, better than 0.3 º/h
Bias stability 1s smooth, RMS, better than 10 º/h
Bias in full temperature range -40 ºC ~ 85 ºC, 10 s smoothing, RMS 0.005 º/s
Random walk 1б 0.15 º/√h
Bias repeatability 1б 10 º/h
Output noise No filtering, RMS 0.05 º/s
Scale factor repeatability 1б 0.01 %
Scale factor nonlinearity 1б 0.01 %
Scale factor FS=450 º/s, 32bits 2621440 LSB/°/sec
Bandwidth (-3dB) 250 Hz
Cross coupling 0.1 %
Acceleration sensitivity 1 °/h/g
Vibration rectification effect 0.5 °/h/g2
Resonant frequency 12k Hz
Accelerometer Dynamic measuring range ±20 g
Bias stability Allan variance 2 ug
Bias in full temperature range -40 ºC ~ 85 ºC, 10 s smoothing, RMS 1 mg
Random walk 1б 0.029 m/s/√h
Bias repeatability 1б 5 mg
Output noise No filtering, RMS 0.5 mg
Scale factor repeatability 1б 0.1 %
Scale factor nonlinearity FS=20g 0.1 %FS
Scale factor ±20, 32bits 65536000 g/LSB
Bandwidth (-3dB) 250 Hz
Cross coupling 0.1 %
Temperature Scale factor 0.0125 °C/LSB
Communication interface 1-way SPI Enter the clock frequency 8 15 MHz
Electrical characteristics Voltage Direct current 3.3 ± 10% V
Power consumption 1 1.5 W
Ripple P-P 48±2 100 mV
Use environment Operating temperature Scalable -40 85 ºC
Storage temperature -55 85 ºC
Vibration 10~2000Hz,6.06g
Impact 1000g,0.1ms

Outline drawing

Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit

Main Applicaion Fields

Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit

Packing& Shipping

Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit

Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit

Stim300 Replacement High Performance 6 Axis Sensor KT-EX9-1 IMU Inertial Measurement Unit
