Precise Navigation Sensor Integrated Navigation System with GPS Accurate Attitude Angle Sensor
Precise Navigation Sensor Integrated Navigation System with GPS Accurate Attitude Angle Sensor
Precise Navigation Sensor Integrated Navigation System with GPS Accurate Attitude Angle Sensor
Precise Navigation Sensor Integrated Navigation System with GPS Accurate Attitude Angle Sensor
Specifications
Brand Name :
Firepower
Model Number :
INS100C-C0
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500/Month
Delivery Time :
1 week for sample
Packaging Details :
Sponge/Box
Heading Accuracy :
0.1 °/L (RMS)
Attitude Accuracy :
0.05°(RMS)
Horizontal velocity accuracy :
0.05m/s
Gyro Range :
±450°/s
Gyro Bias Stability :
≤0.5°/h
Accelerometer Range :
±16g
Accelerometer Bias Stability :
≤100ug
Interface :
RS232/RS422
Weight :
≤200g
Size :
80*60*38mm
Description

Precise Navigation Sensor Integrated Navigation System with GPS Accurate Attitude Angle Sensor

Product Description

INS100C-C0 integrated navigation system has built-in high performance MEMS gyroscope and accelerometer, which can receive internal GNSS data, realize multi-sensor fusion and integrated navigation algorithm, and have short-term inertial navigation capability when GNSS is invalid.

The product has high reliability and strong environmental adaptability. By matching different software, the products can be widely used in the fields of tactical and industrial unmanned aerial vehicles, unmanned vehicles, unmanned ships, aviation guided bombs, intelligent ammunition, rockets, mobile communication, mapping, seeker and stable platform.
Main Function
The integrated navigation system can use the satellite navigation information received internally to carry out integrated navigation, and output the information of the carrier, such as pitch, roll, heading, position, speed, time and the like; After losing the satellite signal, it outputs the position, velocity and attitude information of inertial solution, and has a certain navigation accuracy maintenance function in a short time.
Technical parameters
Project
Metrics (RMS)
Remark
Heading accuracy
Dual GNSS
0.1°
2m baseline
Single GNSS
0.1°
Maintain accuracy
≤0.3°
GNSS failure 0.5h
Attitude accuracy
GNSS is valid
0.05°
Maintain accuracy
≤0.3°
GNSS failure 0.5h
Horizontal positioning accuracy
GNSS is valid
1.2m
Single point L1/L2
2cm+1ppm
RTK
Maintain accuracy
≤1nm
GNSS failure 10min
Horizontal velocity accuracy
GNSS is valid
0.05m/s
Gyroscope
Measuring range
±450°/s
Zero bias stability
≤0.5°/h
10 s average
Accelerometer
Measuring range
±16g
Zero bias stability
≤100µg
10 s average
Communication interface
RS232
Route 1
Optional CAN,
odometer
RS422
Route 1
Electrical characteristics
Voltage
9~36VDC
Power consumption
≤6W
Ripple
100 mV
P-P
Structural characteristics
Size
80 mm×60mm×38mm
Weight
≤200g
Use environment
Operating temperature
-40℃~+60℃
Storage temperature
-45℃~+70℃
Vibration
20~2000Hz,6.06g
Impact
30g,11ms
Reliability
MTBF
30000h
Continuous working time
>24h
Outline Drawing
Precise Navigation Sensor Integrated Navigation System with GPS Accurate Attitude Angle Sensor

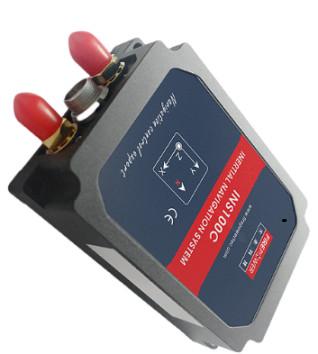

Detail Photo
Precise Navigation Sensor Integrated Navigation System with GPS Accurate Attitude Angle Sensor
Precise Navigation Sensor Integrated Navigation System with GPS Accurate Attitude Angle Sensor
