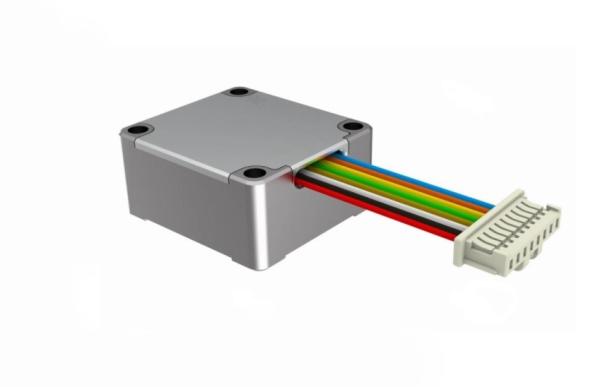

Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor for Drone
Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor for Drone
Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor for Drone
Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor for Drone
Specifications
Brand Name :
Firepower
Model Number :
IMU103
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500/Month
Delivery Time :
1 week for sample
Packaging Details :
Sponge/Box
Gyro Range :
±500°/s
Gyro Zero Bias Stability :
1°/h
Acc Range :
±16g
Accelerometer Bias Stability :
0.07mg (ALLAN)
Communication interface :
1-channel SPI/UART/CAN
Bandwidth :
150Hz
Weight :
≤40g
Dimension :
30mm*30mm*16mm
Description

Inertial Measurement Unit Accelerometer Gyroscope 6-axis sensor for Drone Low Price

Product Description

IMU has high reliability and strong environmental adaptability. By matching different software, the product can be widely used in intelligent driving, tactical and industrial UAV, intelligent ammunition, seeker, mobile communication, mapping, stable platform and other fields.


1. Three-axis digital gyroscope:
①Dynamic measuring range:± 500º/s
②. Zero-bias stability: 1°/h
2. Triaxial digital accelerometer:
① Dynamic measuring range: ± 16 g
② Zero-bias stability: 0.07mg (ALLAN);
3. High reliability: MTBF > 20000h;
4. Guaranteed accuracy within the full temperature range (-40 ºC ~ 70 ºC):
built-in high-performance temperature calibration and compensation algorithm;
5. Suitable for working under strong vibration conditions;
6. Interface 1 channel UART, 1 channel SPI, 1 channel CAN.

Technical parameters
Model
IMU115
IMU103
 IMU109
Axis No.
6axis
6axis
 6axis
Gyro
Range / º/s
*±250 /±500
±500

*±250 /±500
Bias instability /Allan,º/h
≤8.0
≤1
 ≤3.5~4.5
Bias stability in full temp. /10s/ º/h
≤13
≤2.5

≤6.0~8.0
Bias range / º/s
±0.15
±0.03
±0.1
Bias change in full temp. / º/s
±0.08
±0.01
±0.1
Scale factor accuracy / %
0.2
0.15
0.15
Scale factor nonlinearity /%FS
0.02
0.005
0.015
Bandwidth /Hz
150
150
150
Acc.
Range / g
*4 / 16
16
*4 / 16
Bias stability /Allan / mg
0.065
0.02
0.055
Bias stability in full temp. /10s/ mg
0.12
0.035
0.12
Bias range / mg
±3
±0.75
±1.5
Bias change in full temp. /10s/ mg
±3
±1
±1.5
Scale factor accuracy / %
0.3
0.2
0.3
Scale factor nonlinearity / %FS
0.03
0.03
0.03
Bandwidth /Hz
150
150
150
Interface
1-way UART / Kbps
Baud rate(115.2~460.8)
Sampling frequency / Hz
UART (100~1000)
Electrical
Voltage / V
4.5~5.5
Power consumption / W
≤0.35
Environment
Working temperature / ºC
-40 ~ 85ºC
Vibration / Hz/g
20~2000Hz,3g
Impact
1000g,0.5ms
