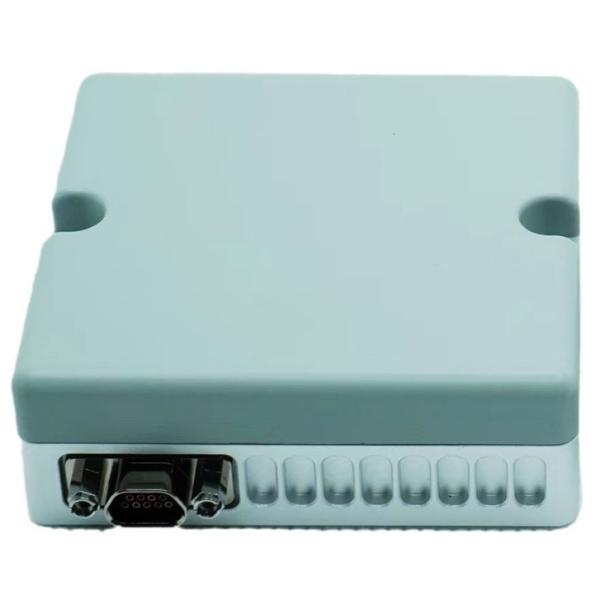

Anti-jamming Receiver GNSS Antenna For UAV Application Anti-Interference Antenna
Anti-jamming Receiver GNSS Antenna For UAV Application Anti-Interference Antenna
Anti-jamming Receiver GNSS Antenna For UAV Application Anti-Interference Antenna
Anti-jamming Receiver GNSS Antenna For UAV Application Anti-Interference Antenna
Specifications
Brand Name :
Firepower
Model Number :
FPD24005-66
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500/month
Delivery Time :
1 week
Product name :
Antenna Receiver
Unidirectional interference :
better than 85dBc
Multi-directional interference :
better than 65dBc
Anti-jamming airspace :
azimuth: 0 ° ~ 360 °, elevation: -90 ° ~ 90 °
Dimension :
(66 ± 0.5) mm x (66 ± 0.5) mm x (22 ± 0.5) mm
Power consumption :
7W
Weight :
<150g
Description
Products Description
The product model is FPD24005-66-GNSS-12V. It serves the reliable navigation of small UAVs and other fields, protects the platform from all kinds of unintentional interference and malicious attacks, and greatly improves the information security of PNT.
Specification

1 Product features
* It has the function of anti-deception.
* It has the function of jamming power detection, which is convenient for jamming calibration and joint test of the whole
machine.
* Support secondary development and further spectrum monitoring, histogram analysis and other processing
* Support 4-array element single-frequency anti-jamming, with working frequency points B1, L1 and E1.
* Built-in navigation and positioning module outputs positioning information according to NEMA0183 protocol.

2 Key indicators
* Anti-interference ability:
* Unidirectional interference: better than 85dBc
* Multi-directional interference: better than 65dBc
* Type of interference:
* Decoy jamming;
* Band-limited white Gaussian interference, spread spectrum matched spectrum interference;
* Pulse jamming and sweep jamming;
* Mixed interference;
* Anti-jamming airspace: azimuth: 0 ° ~ 360 °, elevation: -90 ° ~ 90 °
* Volume: (66 ± 0.5) mm × (66 ± 0.5) mm × (22 ± 0.5) mm
* Power consumption: 7 W (normal temperature, including positioning module)
* Weight: < 150g

Interface description J30J-9ZKP pin definition
Pin No.
Definition
Remark
1/2
VCC12V
Power supply 12V
3/4
GND
Power supply 12V
5
UART_TXD1
Upgrade serial port, TTL level
6
UART_RXD1
Upgrade serial port, TTL level
7
UART_DGND
Ground
8
UART_TXD2
Serial port of positioning module, TTL level
9
UART_RXD2
Serial port of positioning module, TTL level

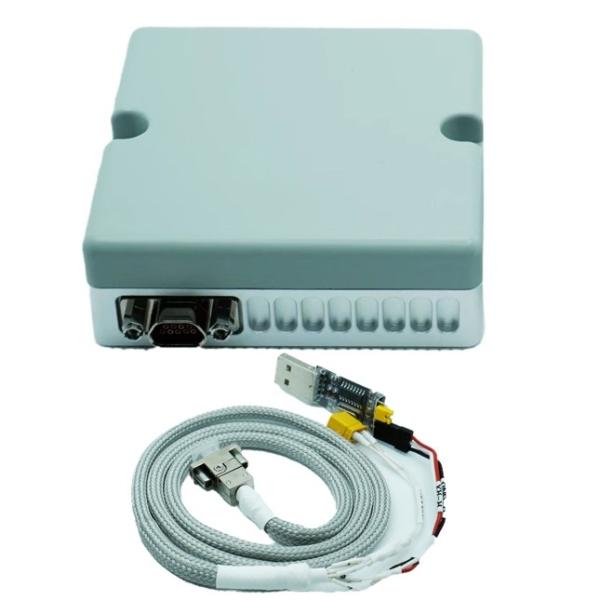

Details Images
