IP 54 Rating 30 Person Per Minute Optimal Flow Rate Mallest Installation Footprint Swing Barrier Gate

General Description

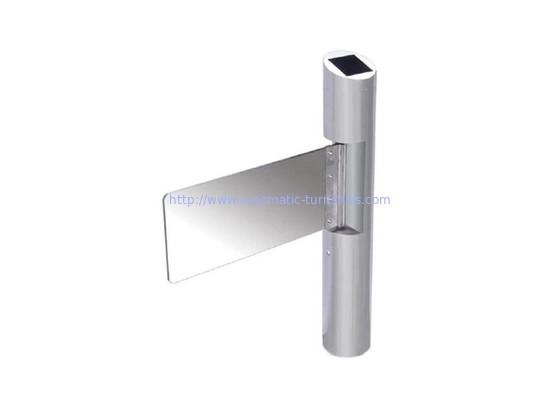

WB103 is an automatic motorized stainless steel tubular swing barrier. SWB103 has smallest installation footprint while offering widest opening
clearance to allow big boxes, trolley, wheelchair, baby stroller or user with big luggage to pass through with comfort. Swing barrier compact size
help to save space and can fit into narrow places.

Application
SWB103 is typically used together with flap barrier or turnstile as manual lane for handicapped user or user with big luggage. SWB103 is suitable for low traffic light duty application.

Features

1) Low maintenance
Uses DC brushless motor eliminate the need of changing carbon brush thus reducing maintenance work.

2) Better accuracy
Intelligent control board with auto calibrate that provide more accurate reading to ensure the opening and closing of gate at the same position at all time.

3) Customized opening
Support bi-directional and widest 900mm opening. Gate length can be easily customized to fit site requirement. Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time. Gate motor mechanism is self lock at open and close position.

4) Emergency recovery
During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level. In the event of emergency such as fire alarm, swing barrier can be automatically triggered to open permanently to allow fast evacuation until the fire alarm resumed.

5) Easy integration
Can integrate with access control system.

• Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
• Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.

6) More safety
Optional railing with safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.

Built-in Automatic Rebounce system (ARS) that will sense brute force and rebounce back to original position when someone kick the door by force as vandalism attempt. This will protects door leaf and gearbox from being vandalism by brute force.

Technicial specifications

Dimension
