Provide an orderly and civilized way for entering and exiting personnel, and prevent illegal personnel from entering and exiting. At the same time, in order to meet the requirements of fire escapes, power outages and poles will be cut off in emergency situations to organize evacuation.

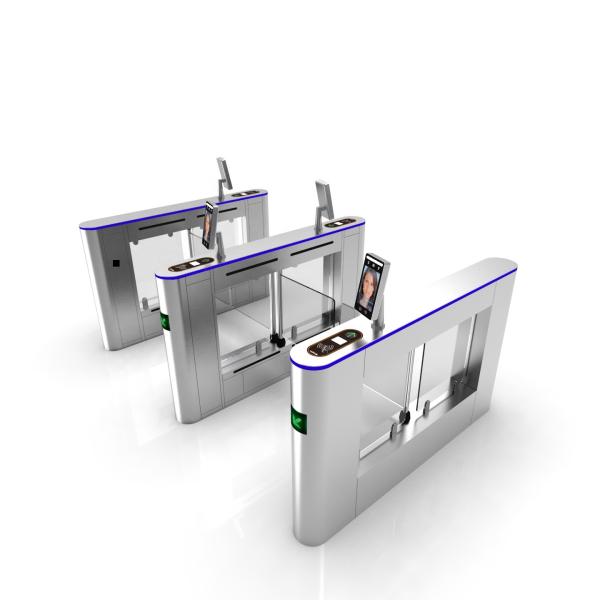

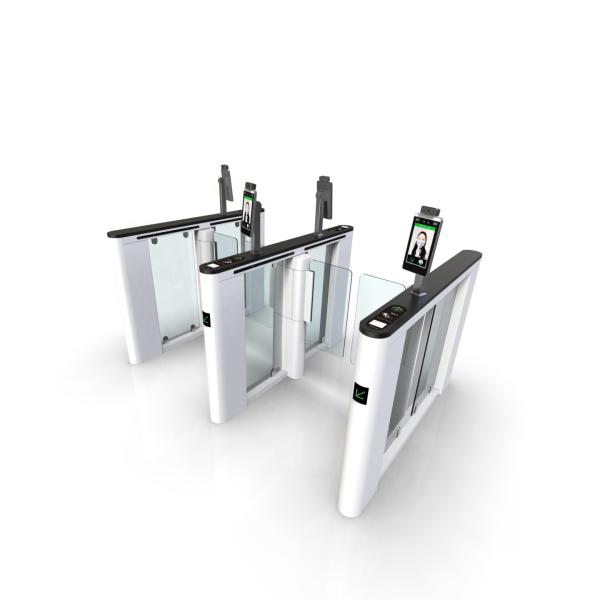

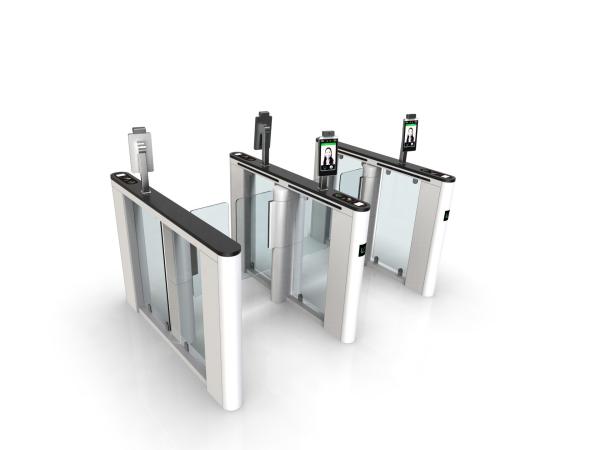

This type of speed gate turnstile is suitable for public occasions with large flow of people. Its service life and safety are the primary considerations of the product. The whole system uses stepless positioning device, the operation process is controlled by sensors, no mechanical collision, so as to achieve stable operation, low noise and less wear. According to a large number of project actual use data summary, the actual service life of the equipment is more than 5 million times. Magnet adsorption, belt drive, servo mobile positioning driver and other high price components are designed to avoid injuring pedestrians
Power supply voltage | AC220V±10V,50HZ |
Working temperature |
-40℃~70℃
|
Relative humidity | Less than 95%, no condensation |
Maximum channel width | 510mm |
Pass speed | 20-30 people/minute (IC card) |
Electromagnet |
20W/24V |
