Durable Rotary Turnstile Entrance Gates 304 Stainless Steel Controlled Access Gates
Durable Rotary Turnstile Entrance Gates 304 Stainless Steel Controlled Access Gates
Durable Rotary Turnstile Entrance Gates 304 Stainless Steel Controlled Access Gates
Durable Rotary Turnstile Entrance Gates 304 Stainless Steel Controlled Access Gates
Durable Rotary Turnstile Entrance Gates 304 Stainless Steel Controlled Access Gates
Durable Rotary Turnstile Entrance Gates 304 Stainless Steel Controlled Access Gates
Specifications
Brand Name :
TS
Model Number :
TS-ZZ011
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
2000 sets per month
Delivery Time :
5-7 working days
Packaging Details :
Plywood box
Minimum Order :
1 set
Packaging Details: :
wooden carton
Drive current :
> 200mA;
Payment Terms: :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: :
2000 sets per month
Relative humidity :
relative humidity ≤ 95%, no condensation;
Description

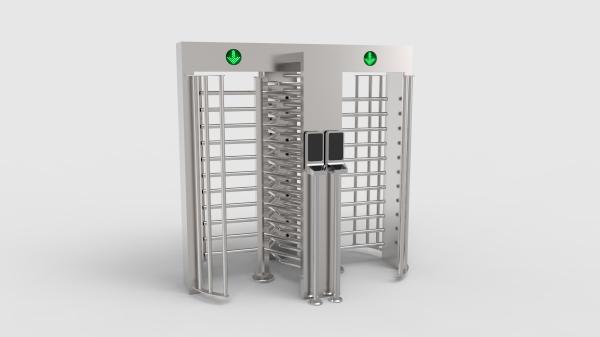

Security Rotary Durable Flexible Smart 304 Stainless Steel Full Height Turnstile Gate

Full height turnstile Application

Full height turnstile is often used for high security access control solutions.The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable,it is ideal for both indoor and outdoor settings, very safety, to meet fire-control passage requirements, the turnstile gate will open automatically when the power off.

SPECIFICATIONS FOR FULL HEIGHT TURNSTILE BD-QG90
Main performance parameters

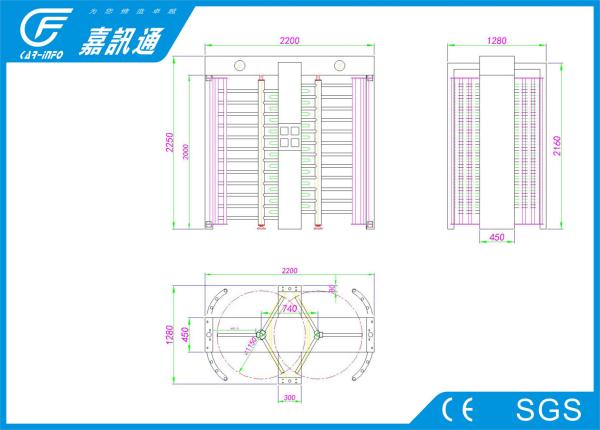

One Channel Size
mm
1250*1225*2300MM
Two Channel Size
mm
1400*2210*2300MM
Weight

kg
350
Main Features
Barrier open time
s
0.2
Travel speed (max. & min.)
°
<=30
MCBF
cycles
3,000,000
Main Features
work voltage
v
AC220V±10% 50HZ±10%
Input signal optional
.
DC12V level signal or DC12V pulse signal
Communication interface
.
RS485

Main Features

1. Auto-reposition function: After card read, passengers don't pass within regulated time period, turnstile will be locked automatically
2. Bi-direction passing or uni-direction
3. When power off, arm will be locked automatically.
4. Self-lock function: arm will be locked automatically after passenger passing.
5. 4 arms are always closed with each turning 90 degrees
6. Standard interfaces are convenient for connection with different readers which can send relay signal
7. RS485 interfaces can connect turnstile with computer directly
8. Stable running with little noise.

Certifications
Detailed Images

Machine Parts

Name: full height turnstile

Brand: Jiaxuntong

Original: China

1.Mitsubishi drive, power 30 w - 250w, max current 15A

2.Heavy-duty design for 24 hours continuours application

3.Heavy-duty pull type solenoid

4.indoor or outdoor application

5.high durability with industrial parts,all the running is quiet without any noise and shaking.

Communication

1.Dry contact relay

2.12 volt or 24 volt pulse relay

3. Electro-magnetic drive

Three million times or above operation test for electro-magnetic drive.Overheat and overload dual protection for electro-magnetic drive.

Operating modes

1.Single passage in the set direction

2.Bi-directional single passage

3.Free passage in the set direction

4.Always free

5.Always locked

Details:

Three million times or above test for motor

Overheat and overload dual protection for motor

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1300 (L) * 380 (W) * 1080 (D)
Weight
80kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Shipping
Lead time
7 working days after payment
Shipping
Air freight Sea freight and Express
Shipping Details
We shipping the goods according to customers request,normally it takes 7 working days to local by Express,10 working days by air,15 working days by sea.
