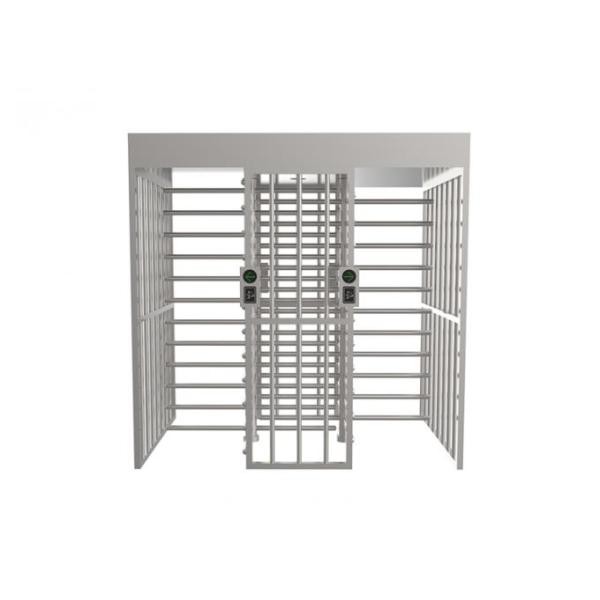

Shenzhen China Motorized 316 stainless steel Anti-crawling and Anti-pass back Full Height Turnstile Gate

Product description

The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management.

The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management.

Advantage features

• Full-height turnstile for indoor and outdoor use
• Available in single, double and double interlocking layout configurations with roof canopy.
• High Security.Effective physical barrier suitable for stadiums and high risk sites
• Prevent Queues. Grant fast and efficient access for authorised people
• Weather-proof. Durable construction suitable for outdoor use in all weather conditions

• Mode of Operation. Passage in one or both directions is electronically controlled. On receiving a signal from the access control system or remote control, the mechanism unlocks and the arms can be pushed to pass through the gate in the authorised direction.

• Improper Transit Prevention. It prevents two passages at one time, and if an unauthorised person attempts to enter from the opposite direction, the in-built locking mechanism stops any attempt to reverse the rotation.

• Anti-crawling and Anti-pass back

Technician specifications

Main function and features

1. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.

7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)

8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
