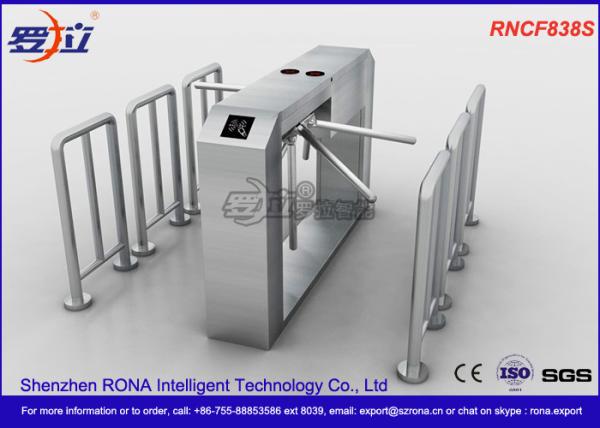

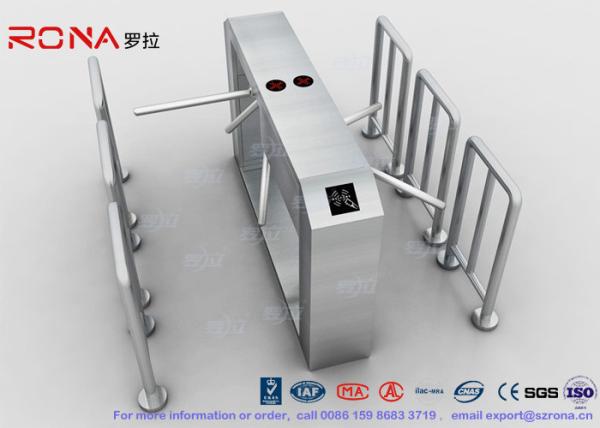

Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust For Station
Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust For Station
Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust For Station
Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust For Station
Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust For Station
Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust For Station
Specifications
Brand Name :
RONA
Model Number :
RNCF838S
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T,
Supply Ability :
2000 units Per Month
Delivery Time :
7-15 working days
Packaging Details :
carton and wooden packing
Framework: :
304# Stainless Steel
Finish: :
Wire drawing surface, Brushed surface,
Dimension(L*W*H): :
1600mm*280mm*990mm
Passage Width: :
550mm
Throughput rate :
30 persons/min
MTBF: :
5 million
Operation temperature: :
-10℃ ~ 70℃
Communications port: :
RS232 / RS485
Description

Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust For Station


PRODUCT DESCRIPTIONS:
Made of 304 stainless steel, tripod turnstile with nice and elegant shape,antirust,durable, resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.
This equipment is integrate with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,bar code,fingerprint reader and so on ,to provide intelligent control and management to flow control.

PRODUCT CLASSIFICATIONS:
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.

TECHNICAL SPECIFICATIONS:

Framework: 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional)
Thickness of ply: 1.3mm (default)
Finish: ① stainless steel surface: brushed surface, polishing surface (default) or anti-fingerprint surface (optional); ② painted surface: any color surface or anti-fingerprint surface (optional)
Dimension(L*W*H): 1600mm*280mm*990mm (default)
Arm material: Steel
Arm length: 500mm
Arm diameter: 38mm
The maximum tolerance of the pole: 80Kg
Working driving force of the pole: 3Kg
Read facilities mounting: may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility.
Power voltage: AC220V±10%, 50Hz±10%
Work movement: Germany technology electromagnetic valve
Semi-automatic type: In-built hydraulic shock absorber
Main-board voltage: 12V DC
Passage Width: 550mm
Passing speed in normally open mode: 30~40 persons/min
Passing speed in normally closed mode: 25~30 persons/min
Time of opening / closing: 0.2 seconds
The time required to running state after power on: 5 seconds
MTBF: 550mm
Operation Temperature: -10℃ ~ 70℃
Relative humidity: ≤95% not condensed
Operation environment: Indoor/Outdoor
Input port: relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port: RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet
Certification: CE
Warranty: 12 months
Net weight: 58KGS


STANDARD FEATURES & FUNCTIONS:
1. Turnstile can setting the working condition by press the button of main control board.
2. Turnstile can compatible with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
3. Tripod turnstile use secondly mechanism with shock absorption device and anti-reverse device(with patent).
4. Tripod turnstile with 60°anti-reverse function (Advantages)
5. Tripod turnstile with auto-lift-arm function(full automatic) and auto-drop-arm function(full automatic and semi-automatic).
6. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you don’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s ). When out of power turnstile will open automatically, after connect the electricity turnstile will close automatically.
7. Tripod turnstile with LED direction arrow plate .
8. Tripod turnstile with swiping card memory function.
9. Can manager and long-range control the turnstile directly by managing the computer.

DIMESNIONS SPECIFICATIONS:
Waist High Tripod Turnstile Gate Mechanism Intelligent Antirust For Station
