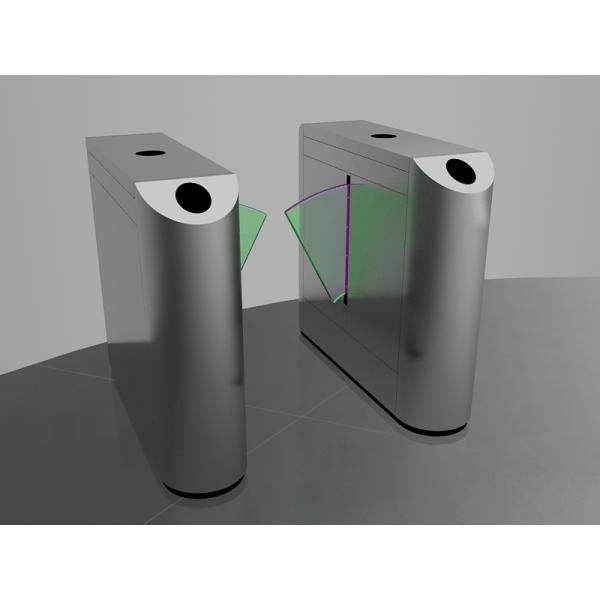

DC24V 20W Pedestrian Turnstile Gate , Automated Gate Systems 40 Persons / Min
DC24V 20W Pedestrian Turnstile Gate , Automated Gate Systems 40 Persons / Min
DC24V 20W Pedestrian Turnstile Gate , Automated Gate Systems 40 Persons / Min
DC24V 20W Pedestrian Turnstile Gate , Automated Gate Systems 40 Persons / Min
Specifications
Brand Name :
RONA
Model Number :
RNCF F6088
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T,
Supply Ability :
2000 units Per Month
Delivery Time :
7-15 working days
Packaging Details :
carton and wooden packing
Product Name :
CE Approved Well Used High-tech Barcode Scanner Electronic Turnstile 304 Tainless Steel Flap Barrier Turnstile Gate
Standar Size :
L1400*W300*H900mm
Material of flap :
Acrylic
Passage Width :
550mm
Mean time to failure :
≧ 5 million
Communications port: :
RS485 Distance=1200m
Materials :
304 Stainless Steel & Stoving Varnish
Direction :
Single and bi-directional
Pass speed :
40 persons/min
Tine to opean and close gate :
0.6 seconds
Description

CE Approved Well Used High-tech Barcode Scanner Electronic Turnstile 304 Tainless Steel Flap Barrier Turnstile Gate

Tenical Parameters

Description Parameters
Item / Model RNCF F6088
Running life 5 millions
Drive voltage DC24V 20W
Pass Speed 40 persons/minute
Open direction Unidirectional and bidirectional (optional)
Opening time 0.6S/It is adjustable
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Input port relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal

Product Description

Flap turnstiles is a hight-tech product which mainly provides intelligent management to passageway.This product is finely processed with

complete function and high level ,suitable for high-level neighborhoods intelligent building, hotel, subway, port and club,ect.

Standard functions & features of Flap Turnstiles Gate

1) On-line or off –line mode(optional)

2) DC Brushless Motor, Maintenance Free

3) With direction indication, guiding passenger to entry and exit.

4) Self automatic locking to prevent forcedly passing without the card

5) Light and sound alarm indication function, preventing illegal entry or irregular passing

6) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000

Extend Functions

The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.

1. access control system
2. bar-code scanner
3. Token /ID/IC card reader
4. time & attendance system
5. coin collector
6. card collector
7. consumption system
8. ESD system and fare collection system
9. biometric systems (fingerprint & face recognition)

DC24V 20W Pedestrian Turnstile Gate , Automated Gate Systems 40 Persons / Min
