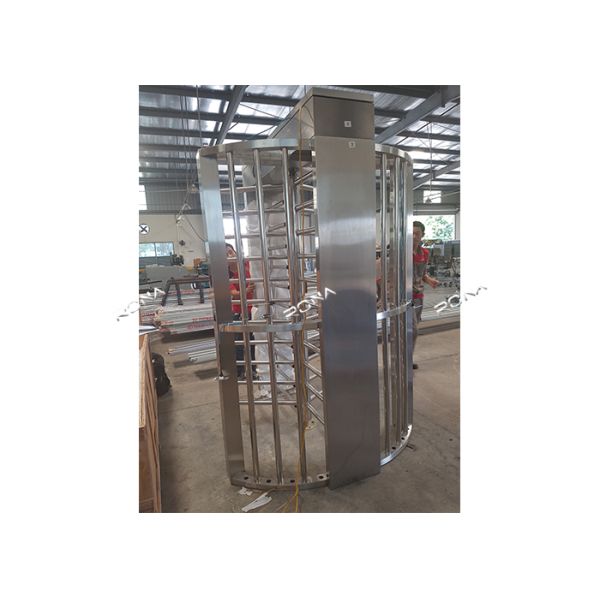

Stainless Steel Single Passage Full High Turnstile Access Control Gate Anti - Tailgating
Stainless Steel Single Passage Full High Turnstile Access Control Gate Anti - Tailgating
Specifications
Brand Name :
RONA
Model Number :
RNCF21238Y-4
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
T/T,
Supply Ability :
2000 units Per Month
Delivery Time :
7-15 working days
Packaging Details :
wooden cases packing
MTBF: :
> 5 Million
Pass Speed: :
20 ~30 Persons/minute
Matrial: :
304# Stainless Steel(Optional)
Communications Interface: :
S485, TCP/IP
Description

Stainless steel single passage full height turnstile mechanism access control turnstile


Model: RNCF21238Y-4 Single Lane Full Height Turnstile

Product Descriptions:

  • With the mechanical anti-tailgating design, full height turnstile gate can effectively achieve “one person passing at a time”.
  • The full height turnstile system is provided with a standard electric interface and is easily integrated into the 3rd party equipment with read/write facilities, such as Biometric reader, consumption system, ESD system and access control system etc.

  • The RNCF21238Y-4 consists of rotor assembly which consists of three rotors, each containing 10 arms spaced equally 510mm apart. Each arm is attached to the rotor posts with a solid spigot.

  • After receiving a valid open signal, the semi-automatic turnstile arms need manually pushing forward to rotate. The turnstile works stably, safely and reliably.

  • Turnstile opens when power failures: With the industry's leading mechanical structure created by RONA, full height turnstile system will unlock the arms to be pushed freely, so as to evacuate people.

Technical Specifications:
Thickness of ply: 1.7 (mm)
Finish: Brushed surface / Polished surface / Anti-Fingerprints surface
Arm size: 600L*38D (mm)
The inductive card reader dimension: equipped with the standard mounting brackets, or tailor.
Operation voltage: AC220V±10% 50Hz±10%
Communications Interface: RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
Input interface: relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Relative humidity: ≤90% Non-condensing
Working Environment: -10℃ ~ 70℃, Indoor / Outdoor
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.


Services Provided:

  • All items have 12 month quality guarantee.
  • OEM/ODM available: Custom design shape, color and logo.
  • Special discount of our distributors or agents in their area.
  • Packing in standard export carton, suggest you pack it by wooden case to protect the products.
  • Fast delivery: sample order in stock, 5~7 days for bulk production.
  • Payment: we can accept T/T, .
