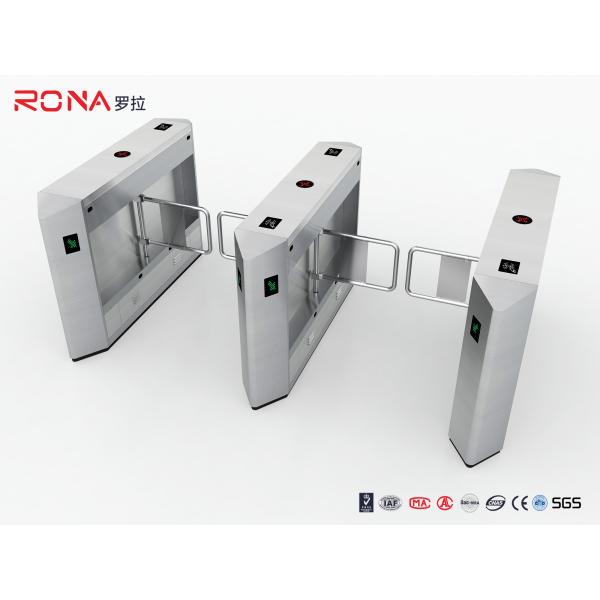

Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
Specifications
Brand Name :
RONA
Model Number :
RNCF 5008/5008S
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
1 pair
Price :
negotiation
Payment Terms :
L/C, T/T,, Western Union
Supply Ability :
2000 units Per Month
Delivery Time :
7-15 working days
Packaging Details :
Export Wooden Packing
Product name :
Outdoor SUS304 Swing Barrier Gate Waterproof Turnstile With Acrylic Arm
Standard size :
L1200mm*W280mm*H990mm
Driving motor :
DC24V brushless motor
Channel width :
550~1200mm
Material swing :
SUS304 or Acrylic
Pass speed :
25-30 persons/min
IP :
54
Working environment :
-30℃～70℃
Environment :
Indoor or outdoor
Working life :
5 millions
Input interface :
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Guarantee :
12 Months
Description

Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm

Outdoor SUS304 Swing Barrier Gate Waterproof Turnstile With Acrylic Arm

Prduct Decribetion

1)With automatic homing, power-off unlock, power-on self-test, zero point correction, memory access, multiple opening, etc.
2)Material: Made of high-precision SUS304 stainless steel foot and thick plate material, corrosion resistance, wear resistance, high temperature resistance, oxidation resistance, durable, and after years of use, it is still as bright as new and always beautiful.
3)Structure: Modular design, easy disassembly, easy inspection, easy repair, easy installation and maintenance.

4)Alarm function: illegal break-in, reverse traffic, trailing, traffic timeout, and equipment alarm when the situation occurs;
5)Stable product performance, low energy consumption, low noise and long service life;
6)Super five-proof function: with anti-trailing, anti-reverse, anti-hand shake, anti-collision, anti-pinching; super protection, safer traffic;

Integrating mechanism, electronics and micro-processor advanced technologies.The swing turnstile is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection SW to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management.

Swing barrier gates Standard features & functions

1) With function of self-examine and alarm, it is convenient for maintenance and use.
2) Being able to program running status by the small keyboard in the main board
3) Preventing pedestrians from being nipped and from hurt
4) Light and sound alarm funtion including the illegal in and the tail
5) Arms are automatically locked untill opening signal is received.
6) Arms synchronization (adjustable)
7) Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the
8)channel in the pre-set time after the opening. The passing time is adjustable
9) Automatically open the gate when power off and automatically close when power on
10) Several card readers are attachable, and relay singals can be received.
11) One direction or bi-direction are optional
12) It can be directly controlled and managed by remote control.
13) Count functions
14) Length of framework and material of arm are optional.


Standard Technical Paramenters

housing material SUS304 stainless steel
Dimension L1200*W280*H990 (mm)
Net weight 75Kg/unit
Working mode single or bi-direction
Power supply AC220/110 ±10% V 50 ±10% Hz
Motor Voltage DC 24V brushless motor
Input interface Dry contact signal/12V level signal/12V pulse signal
Communication interface RS232 (Distance less than 1200M)
Transit speed 30-35 persons/min (normal open), 25-30 persons/min (normal close)
Opening/closing time 2 sec
Transit time after power on 3 sec
Auto reset time 10 sec
Working environment inside/outside (with shed)
Temperature -10Ces-50Cels
Relative humidity ≤90%, no condensation

Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm

Package for turnstiles gate

Outdoor SUS304 Swing Barrier Turnstile Waterproof With Acrylic Arm
