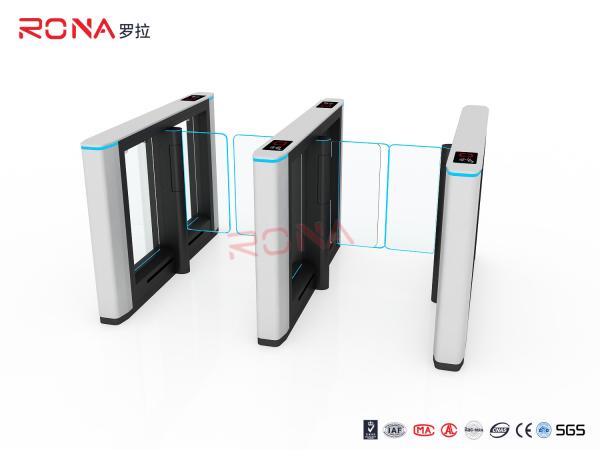

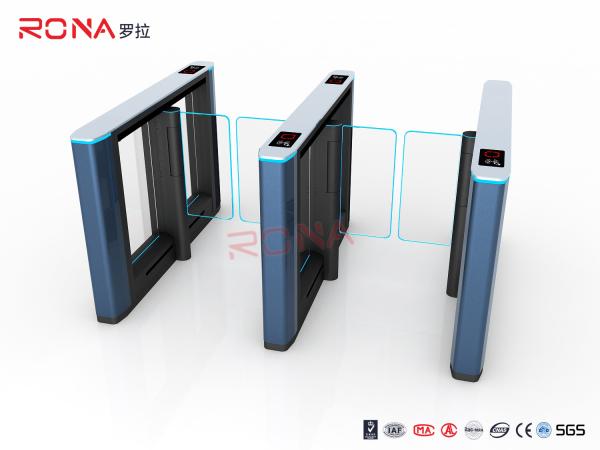

304 Stainless Steel Turnstile Barrier Gate with Automatic Speed and RFID Security Systems
304 Stainless Steel Turnstile Barrier Gate with Automatic Speed and RFID Security Systems
304 Stainless Steel Turnstile Barrier Gate with Automatic Speed and RFID Security Systems
304 Stainless Steel Turnstile Barrier Gate with Automatic Speed and RFID Security Systems
304 Stainless Steel Turnstile Barrier Gate with Automatic Speed and RFID Security Systems
304 Stainless Steel Turnstile Barrier Gate with Automatic Speed and RFID Security Systems
Specifications
Brand Name :
RONA
Model Number :
RNCFH 8008-13
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
2000 unit per month
Delivery Time :
7-15 work days
Packaging Details :
Carton and Wooden Packing
Material :
304 Stainless Steel
Motor type :
Servo motor
Main board type :
V2.6
MTBF :
10 million times
Sensor quantity :
10 pairs
Pass speed :
30 person/nin
Passage width :
550-1000mm
Warranty :
One year
Description

Turnstile Barrier Gate Waist Height RFID Turnstile Security Systems Automatic Speed Gate Turnstile

Product description

The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.

The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.

Parameters

Housing material 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
Product size(mm) 1600L*160W*1000H
Main board type V3.1
Main board chip Arm
Motor type Servo motor
Movement Anti-collision and noe-destructive movement
Power voltage AC220V±10%, 50Hz±10%
In-built Infrared 10 pairs/passageway
Passing speed in normally open mode 30 persons/min
Passing speed in normally closed mode 25 persons/min
Passage Width 550mm ~1000mm
Swinging direction unidirectional or bi-directional
Opening / closing time 0.1 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 1 seconds
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
Communications port RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet
