Double - Sided Mechanical Code Lock Zinc Alloy Material For Wooden Door / Iron Door

Usage method
Precise opening, faster password lock, farewell key era
There is only one set of passwords, 3-4 bit passwords can be set, and C keys are zeroing keys.
The remaining keys are password keys (including Y keys). After entering the wrong password, you need to press the C key before continuing to enter the password.

Long handle opening is more convenient.
More convenient operation

Anti lock card tri locking tongue
Safer home

Installation method:
Adjust the handle direction conveniently and quickly (no door opening direction, universal type).
When you leave factory, the handle is vertical, and the Panasonic screw can be adjusted.
When installing, pay attention to the direction of the shaft, and the spring faces the cipher (outside).

Product advantages:
Door locks can be used offline at home or centrally managed for hotels, apartments, public areas, etc.
Support mobile phone door opening function

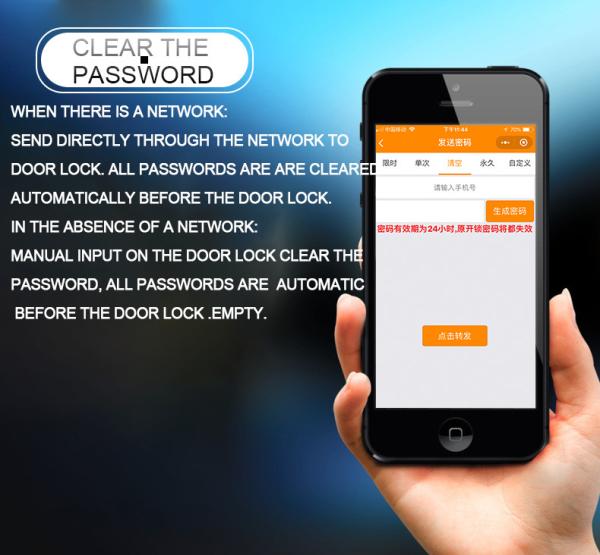

Open the door can be managed by APP
Multiple networking methods: lora, tcp/id, Bluetooth
Quick and easy installation process, easy to transform the door
Door locks are strictly checked
Door lock parameters:
Card type: M1, T557, NFC
Support for mobile apps
Door opening method: door card, password, key, Bluetooth, remote
Password type: permanent, limited time, single, empty, loop, custom
The password can be modified by yourself. Up to one administrative password and 50 open passwords can be set.
Password supports garbled input, up to 12 digits
Door lock material: zinc alloy
Door lock size: 310*25*2.5
Door "false lock" alarm
Low pressure alarm
Battery powered, external emergency power supply
Working voltage: 6.0V (4 alkaline batteries)
Static power consumption: <100uA
Dynamic power consumption: <300mA
Battery life: 12 months or more (4 section 5th genuine alkaline battery)
Low voltage prompt: 4.8V

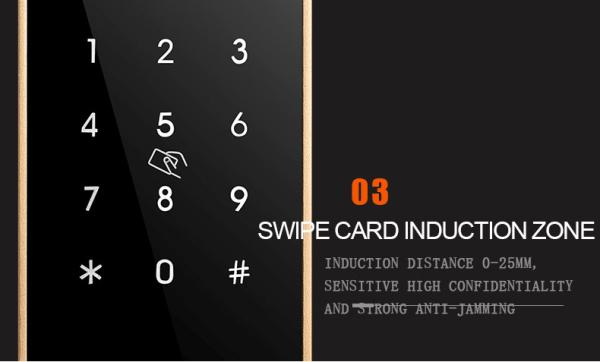

Card reading distance: >25mm
Working temperature: 0 ° C - 70 ° C
Working humidity: ≤80%
