Specifications
Brand Name :
JUTAI
Model Number :
RC-4
Certification :
ISO9001, RoHS, FCC, CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability :
1000 pieces per month
Delivery Time :
5 - 8 working days
Packaging Details :
Cartoon
Frequency :
433MHz
Working Distance :
100
Add and Delete ID :
Short -Circuit or Special Remote Controller
Encryption :
Via Special USB Cable
Application :
Gate Access Control System
Didital Modulation :
Ask
Quality Warranty :
1 Year
Transport Package :
Cartoon
HS Code :
8526920000
Description

Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters

Production Introduction:

JUTAI Gatelink Solution includes the gate receiver, it can connect to your barrier gate controller, auto gate motor controller,etc.

working with the UR-4O USB auto-opening gate (plug in the car);

working with the UR-43K auto-opening gate with the remote button ( plug in the car);

working with RM-4K 4buttons remote control ( remote by your hand).

working with RM-2K 2 buttons remote control (remote by your hand).

REC-3 USB cable for programming the encrypted software, which you can set the same PIN password between the receiver and transponder. this function we open for our client, which is a more flexible solution and you can control your own market project directly.

welcome more and more of our distributors and make more profits together.

JUTAI Gatelink all-in-one Solution Technology Parameter

1. Frequency: 433MHZ

2. ASK system

3. Code: anti-cracking rolling coding

4. Working distance: >35 meters in the air

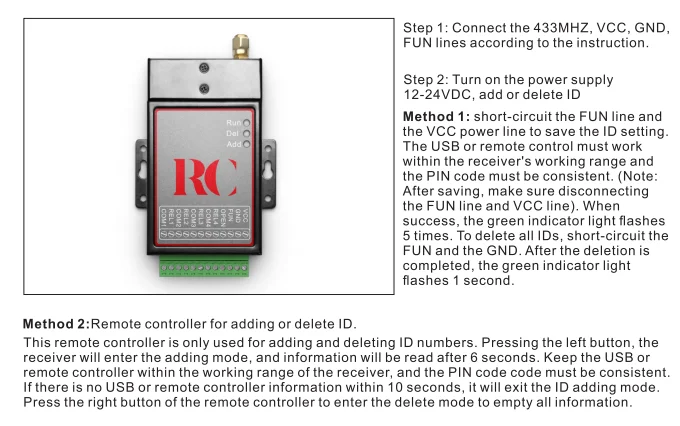

5. Add and delete ID mode: through short-circuit or special remote controller

6. Encryption: via USB cable (line should be customized)

7. Working voltage: 12-24VDC,12VAC

8. Storage capacity: 32 ID numbers, larger capacity should be customized.

JUTAI Gatelink all-in-one Solution Applications

Autogate entry access control

Boom barrier gate entry management

smart auto parking lock application

Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters

Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters

Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters
Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 MetersRolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters

Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters

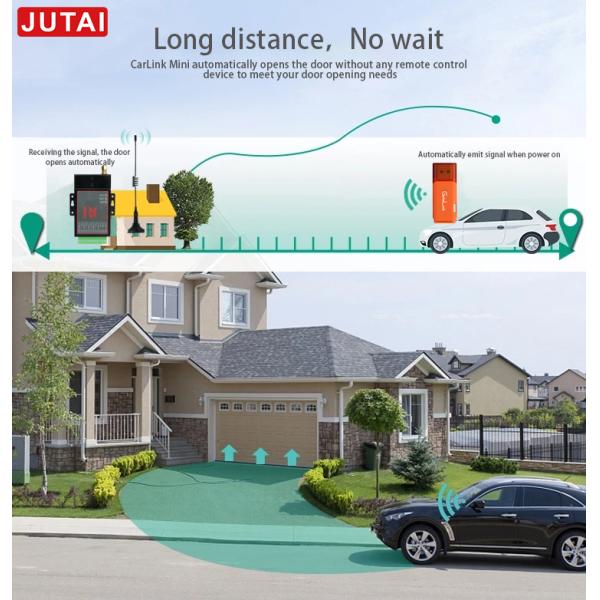

How the system works:

1. Save the USB Transponder ID number into the JUTAI Remote Receiver.
2. Connect the receiver to the gate controller. When the receiver receives a signal from the USB transponder, it will determine whether the ID is available or not.


Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters
3.if avaible, the relay inside of the receiver will output signal, and gate will open;
4.when car enter to home guard, left the safe loop Coils, the Gate will close automatically;
5.The USB Remote Transponder is getting power from the car, so when the car started, the USB transponder can not getting the power again,it will cannot work;
Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 MetersTechnical Parameter(USB Transmitter):
Frequency 433MHZ
Electrickty Getting Electricity From The Car
Code Anti-cracking rolling code
Working Distnace 30m inside of the car
Add and Detete ID mode Though short-Cirecuit or special Remote Controller
Encryption Via Special USB Cable
Working Volate 5VDC
Power Interface USB
Technical Parameter (Receiver):
Frequency 433MHZ
Digital Moduation ASK
Code Anti-cracking Rolling Code
Working Distance 30m in the air
Add and Detete ID mode Though short-Cirecuit or special Remote Controller
Encryption Via Special USB Cable
Working Voltage 12-24VDC
Storage Capacity 32Pcs ID number or more (Optional)

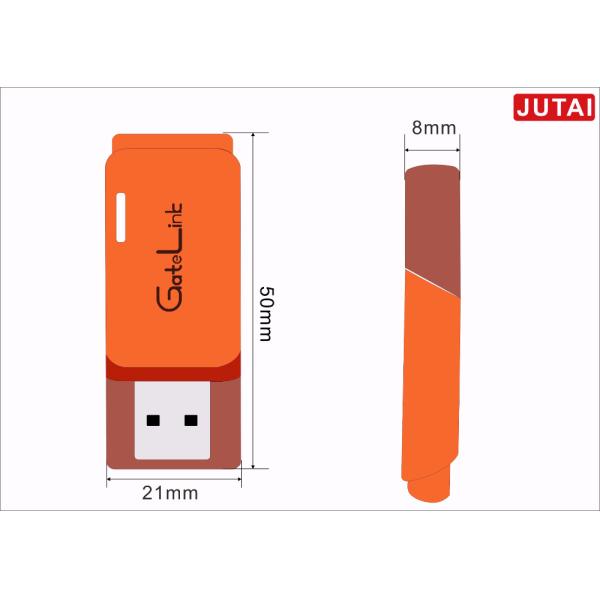

Size and Diagram for USB Transimitter :
Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 MetersRolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters
