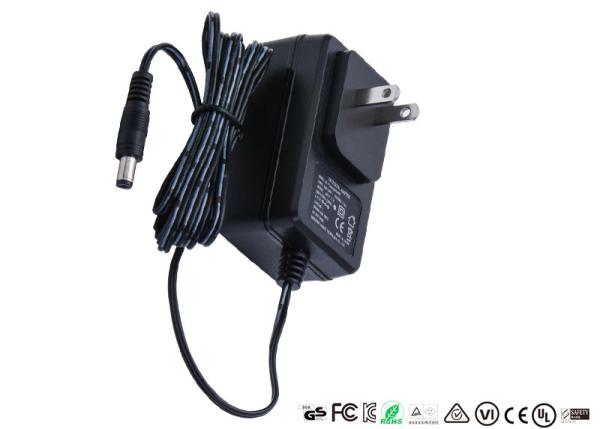

12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS
12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS
12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS
12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS
12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS
12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS
Specifications
Brand Name :
Haifyer
Model Number :
GS-P12015
Certification :
CE FCC UL GS BIS ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1200000PCs/Month
Delivery Time :
15days
Packaging Details :
Blister Box first then come into a carton
Name :
12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS
Input :
100-240V 50/60Hz
Output :
12V 1500mA,1.5A
Size :
73.7*44.8*33.9MM
Weight :
110g
DC Cable :
1.5M/1.8M
Certificate :
CE FCC UL GS BIS ROHS
Description

12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS

Output ratings

Outout(V) Ouptput(A) Power DOE VI
12V 1500mA 18W YES
15V 1000mA 15W YES
18V 1000mA 18W YES
12V 2000mA 24W YES
5V 2500mA 12.5W YES
5V 3000A 15W YES

Product Features

1) 12 years Adapter Producer,5 years Amazon provider
2) High quality manufacturer with top equipments.
3) 3 year's quality assurance, nine times check before shipment.
4) Less than 0.15% of defective ones.
5) Strictly control of whole process from PCB making to final assembly.
6) Eight years of professional export experience.
7) Quality accorded with CCC CE FCC UL ROHS GS SAA standards
8) Very reasonable price under same quality

Specification

Model
GS-P120015
input voltage
100-240V
input current
200mA(MAX) 110VAC
output voltage
12V DC
output current
1500mA
output power(W)
18W
no-load power (W)
0.1
Power supply efficiency (%)
≥80%
starting delay(S)
starting time≤500ms,duration period≥20ms
inrush current(A)
<30(A) 265VAC
load regulation
±5.0%
linear regulation
±1.0%
Ripple&sound(mVp-p)
≤60(mVp-p)
over voltage protection
rated output voltage (115%-135%) protecting mode: diode-clamp, turn off output voltage, it will recover as restart.
over temp protection
As internal crystal junction temperature over 140℃,the temperature protection function will be started up, protect mode: turn off output voltage, then the device can be automatically restored after the temperature recovery.
short circuit protection
Protected mode: hic-cup mode, it can be automatically restored after abnormal condition removed.
over load protection
>130% rated output power, protected mode: constant current limit, the load will be automatically restored after abnormal condition removed.
high voltage test
input-output,3000VAC/≤5mA/5s input-shell,3000VAC/≤5mA/1min
insulation resistance
input-output,≥500M/1min,input-shell≥500M/1min test condition:500V DC/25℃ humidity:70% RH
current leakage
≤5mA
unit net weight
110g
unit package
PO transparent bag
carton size
100PCS/carton,carton size:46.5*30*32cm
carton weight
13KG


12V 1.5A 12 Volt Universal Power Adapter AC To DC Power Supply With CE FCC UL ROHS

Application :

Wi-Fi camera power supply, LED display, LED soft light, wireless router mobile DVD, EVD, ADSL, POS machine, TV boxes, LCD display, electrical household appliances, battery charger, video phone, laptop computers, satellite receiver, digital photo frames, computer peripheral products, instruments and meters, electronic game players, hub, mobile communications equipment, bank data, alarm equipment, medical equipment, communications equipment, industrial appliances, security engineering, such as monitoring system, scooters in various fields.
