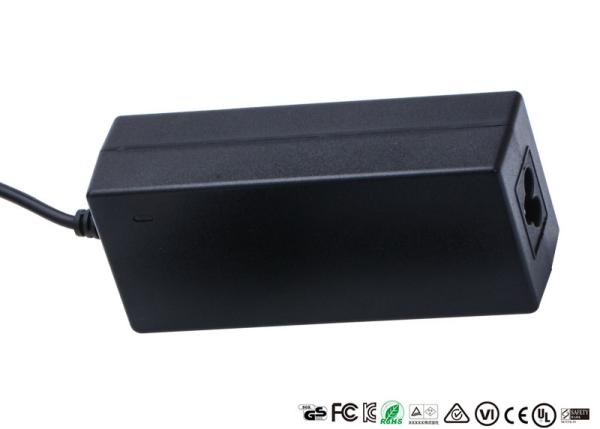

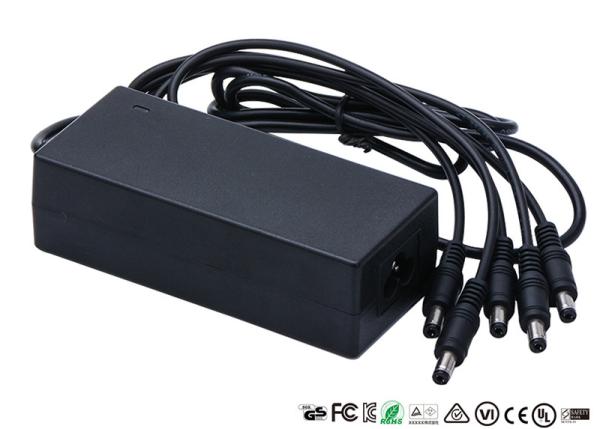

DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable
DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable
DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable
DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable
DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable
DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable
Specifications
Brand Name :
Haifyer
Model Number :
ZF120A-1204001
Certification :
CE FCC UL GS BIS ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1200000PCs/Month
Delivery Time :
15days
Packaging Details :
Blister Box first then come into a carton
Name :
DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable
Input :
100-240V（90-264V) 50/60Hz
Output :
12V 4000mA,5.0A
Size :
120*52.3*31.6
Weight :
240g
DC Cable :
1.5M/1.2M
AC Cable :
1.2M
Description

DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable

Product Featurej
1. OEM service is offered: logo customization, design customization, customized packaging.
2. Full Copper AC and DC Wire Cable: 1.2m,1.5m for your choice.
3. Using copper transformer to prevent the high temperature working.
4. Level V0 Fireproof ABS/PC shell: safe and reliable.
5. Passing EMC and 8 process for quality test for assurance.
6. Thousands of customers recommend!
7. Selling to the South America,Africa, European market.

Output ratings

INPUT OUTPUT
Voltage Current
100-240VAC 12V 4.16A
12V 4.0A
12V 5.0A
6V 6A
6V 8A
6V 10A


Features

1, Universal Full Input Range 100-240VAC(990-264V AC)

2, Energy Efficiency is DOE Level 6

3, Desktop Styles AC DC Power Supply

4, With Class 2 power

5, Regulated Output with very Low Ripple(0.091% Volt)

7, No load Power Consumption <0.091W

9, Certified to UL/EN/IEC60950-1 UL CUL CE ROHS FCC KC TUV GS


Input Range VAC: 100-240V(90-264V)50/60Hz 0.8 Max
Output VDC: 12V± 5%
Output Current: 4000mA
Output Power: 48W
AC Cable plug: EU/US/UK/AU/IN
DC cable length: 1.53m 2468UL 18AWG (optional)
DC connector: 5.5*2.1*12 mm/5.5*2.5mm (optional)
Working Efficency: >86.1%
Efficiency level : DOE Level SIX
Certificates approved: CE ,GS,CB,UL ,FCC,KC , Rohs,
Warranty: 100000 hours assurance
Safety protection : OVP (132.2%-160% rated output voltage)
OCP (126.2%-150% rated output current)
SCP
Thermal shutdown capability
Safety Standard : EN60950,IEC60950,UL60950 ,K60950-1,GB4943.1-2011
EN60065,IEC60065
EMC standard: EN55022/24/13/20, EN6100,FCC Part 15 subpart B Class 2
J55022(H22)
Ripple and Noise: < 58Mv @ full load,20MHz bandwidth
Input Current: <0.53A
Input Inrush Current: <31.3A. @ 264Vac /50Hz
Leakage Current: < 0.26mA @ 264Vac / 50Hz
Dielectric Voltage (Hi-pot): 3000Vac /10mA / 60S
Turn On Delay Time: < 3S @AC:100V- 240V & full load)
Standby power: < 0.084W
Operating Temperature: 0°C - +43.5°C
Storage Temperature: -20°C - +83.5°C
MTBF: >100.000 Hrs @full load ,25.3°C
Adapter size:120*52*31.7 mm (L/W/H)


Applications

1->.: CCTV camera / LED lights / strips / player

2->.: Water purifier/ Aquarium/ air humidifier/ audio turntable/ LED torch

3->.: Router/Modem/Beauty & Health equipment

4->.: Medical machine / POS machine / monitor/ toys/LCD

5->.: Pump / display / digital photo frame / other electronic device/Switch

DOE VI 12V Power Adapter 4A 48W UL Approved With 5 Ways Splitter Cable
FAQ

Question Answer
Are you a manufacture ? Yes, We are a over 10 year factory
What is the main product of your factory ? We are the supplier for 0-124W global power adapter, including wall plug adapter,desktop adapter, USB CHARGER, Switching power supply, Class 2 power supply, Open frame power supply and so on.
Can you design the ODM based on our design? Yes,we have engineer team , one week make up sample, 33days sample test start to MP .
Could I have third party to QC the product ? It's okay for our company
Can i visit your factory ? That's perfect!We are very happy if you come here!
What's the MOQ ? Trial order 470PCS . MOQ 1000PCS
What's the sample cost ? Free samples, we welcome our customers to take samples for testing
What's the payment terms ? T/T , Pyapay, WU . 50% as the deposit in advance and balance paid before delivery.
What's the production lead time? 500-1K: 7-13 working days. 3K-10K: 11-15 working days. 10-30K: 15-31 working days.
