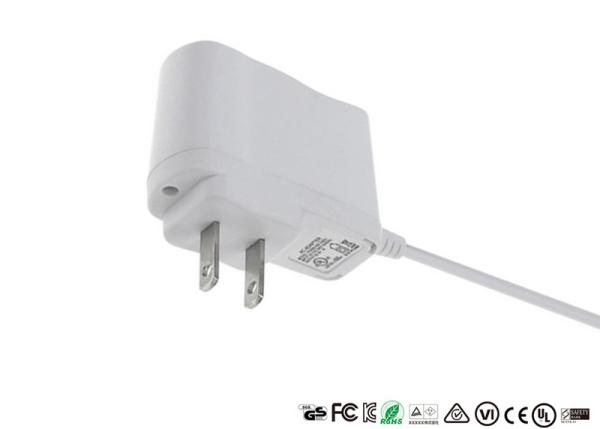

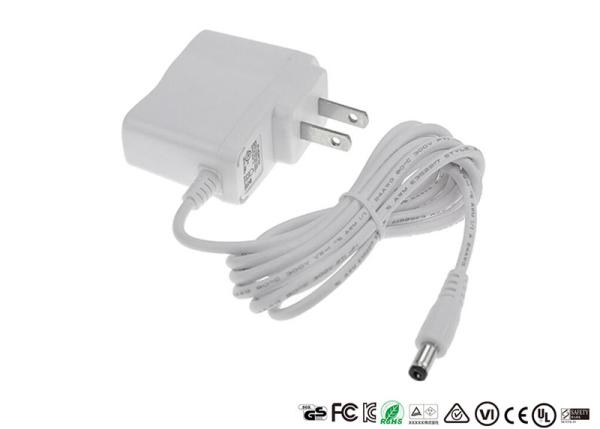

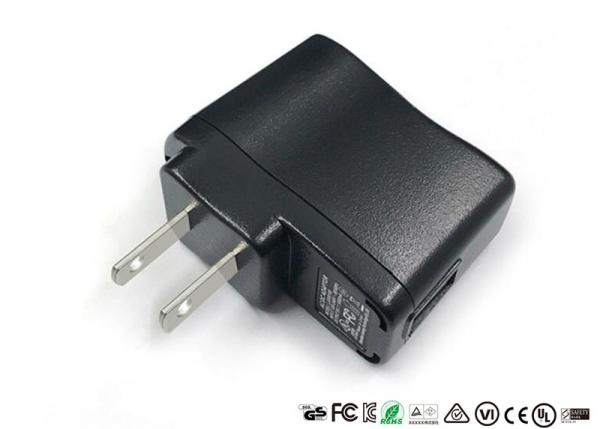

UK US EU AU Plug AC DC Power Adapter 5V 6V 9V 11V 12V 15V 24V 200mA 300mA
UK US EU AU Plug AC DC Power Adapter 5V 6V 9V 11V 12V 15V 24V 200mA 300mA
UK US EU AU Plug AC DC Power Adapter 5V 6V 9V 11V 12V 15V 24V 200mA 300mA
UK US EU AU Plug AC DC Power Adapter 5V 6V 9V 11V 12V 15V 24V 200mA 300mA
UK US EU AU Plug AC DC Power Adapter 5V 6V 9V 11V 12V 15V 24V 200mA 300mA
UK US EU AU Plug AC DC Power Adapter 5V 6V 9V 11V 12V 15V 24V 200mA 300mA
Specifications
Brand Name :
Haifyer
Model Number :
ZF120A-0900200U
Certification :
CE FCC UL GS BIS ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A
Supply Ability :
1200000PCs/Month
Delivery Time :
15days
Packaging Details :
Blister Box first then come into a carton
Name :
UK US EU AU Plug AC DC Power Adapter 5v 6v 9v 11v 12v 15v 24v 200mA 300mA
Input :
100-240V (81-267V Max.) 50/60Hz
Output :
9V 200mA,0.2A
Size :
58.4*48.1*23.5MM
Weight :
61g
DC Cable :
1.2M
Description

UK US EU AU Plug AC DC Power Adapter 5V 6V 9V 11V 12V 15V 24V 200mA 300mA


Output ratings

Outout(V) Ouptput(A) Power DOE VI
9V 200mA 1.8W YES
9V

300mA

 2.7W YES
9V 400mA 3.6W YES
9V 500mA 4.5W YES
12V 200mA 2.4W YES
12V 500mA 6.0W YES


Features

1, Small sizedLight weight, compact easy for carrying
2, Full range Universal AC input 90-240V(81-267V AC max.)
3, No load power consumption less 0.10W
4, With Full safety approvals for all the world use.
5, V0 level Anti Fire Material and Patent Private Mould Housing
6, Level SIX High efficiency
7, Short circuit,Over charge,Over load,over temperature, protections.
8, 3 year quality warrant
Specifications
Model ZF120A-0900200
Mode Constant voltage
Input 100-240VAC(81-267V AC max.), 50/60Hz
Output 9V 0.2A 1.8W
Energy efficiency DOE VI
DC cord length 1.2m/1.5m/1.8m, etc.
DC jack size 5.5mm*2.5mm*12mm/5.5mm*2.1mm*12mm/3.5mm*1.35mm*12mm/4.0mm*1.7mm*12mm/2.5*0.7mm/5.5*1.0mm/4 pin, etc.
Dimension(L*W*H) 58.4*48.1*23.5MM
AC cord length 1.2m/1.5m/1.8m, etc.
AC plug AU/BR/IN/US/EU/UK, etc.
Certifications GS /DOE VI/UL / CE / TUV / FCC / KC / KCC / SAA / RoHS
Protections Short circuit protection, over voltage protection, over current protection,drop resistance
Working environment -10°C~+40.9°C 5%~90%RH
Storage environment -20°C~+85.9°C 5%~95%RH
Cooling method Natural cooling down
RoHS compliant Yes
Warranty 3 years
Application Security cctv camera,Communication,Allicances,Modem,Router,Recliner massage chair,3D printer, Vending Machine,Water purifier,LED lighting, medical, audio, aptop, etc.

UK US EU AU Plug AC DC Power Adapter 5V 6V 9V 11V 12V 15V 24V 200mA 300mA

Applications
CCTV; ,Car-carried Refrigerator; Access System;Electric Blanket;Household Appliances;LCD Display;Vacuum Cleaner,Mini Electronic Device,Balance Car,Centrifuge;Audio Amplifier; Smart Home; Camera Equipment; Video Product; Air Purifier;Video Game Products; Router;Household Electric Fan; Massage Chair; LED strip;POS Machine; Security Surveillance System;Motor; Audio Transmitter; Audio Converter; IT Products; Digital Image; Wearable Electronics; LED light; Car Starter;Pump; Nebulizer; Air Cleaner;Communication Power Supply; Visual Intercom; 3D printer; POE Server;LED Lighting,CCTV camera,Monitor,Printer,Door Systerm,Small Household Appliance,LED Driver,Powerline Wifi,Massage Chair,Laptop,Air Purifier,Air Humidifier,Medical Machine,LCD,Mobile Phone,MP3/MP4,Stereo Audio,Credit card terminal.......
FAQ
  • 1. How long is your product warranty?
  • A: All of our products have 3 years warranty..
  • 2. What's the advantage of your products?
  • A: Over 10 years of experiences in ac dc power adapter production and sales,worldwide certificates,high-quality products,guaranteed after-sale services;
  • 3. Are you accept OEM order?
  • A: Yes, it's okay for us, please feel free to contact us;
  • 4. What about delivery day?
  • A: For sample with existing products, we can ship it right away,for customized one, need 2-5 days; and for customer order products in great quantity, 7 to 13 days. Generally 14-22 days for customer OEM products.
  • 5. How about terms of payment?
  • A: T/T, PayPal, Western Union, L/C,etc.
