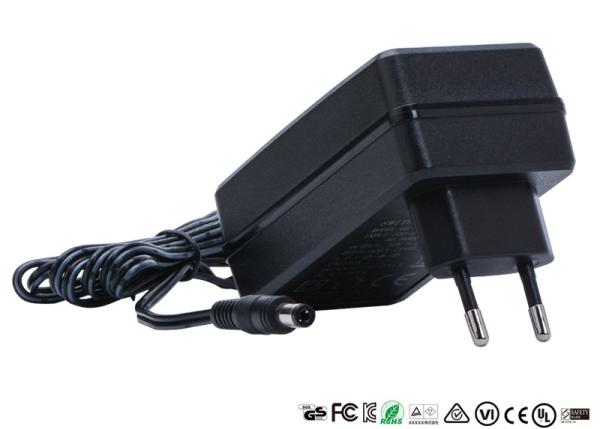

1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma
1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma
1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma
1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma
1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma
1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma
1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma
1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma
Specifications
Brand Name :
Haifyer
Model Number :
ZF120A-1202000
Certification :
CE GS FCC UL ROHS EAC GS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
1200000PCs/Month
Delivery Time :
15 days
Packaging Details :
PE Bag first then come into carton
Name :
24V 1A Power adaptor AC DC Power Adapter
Material :
V0 Fireproof
Input :
100-240v/24V 1A/12V 2A 2.5A
Ripple :
<60mV
Protection :
Over-Load,Over-Voltage,Short Circuit,Over Temperature
Size/Weight :
87*49*33MM/120g
DC Jack :
5.5*2.1mm/2.5mm or ther size
Certificate :
CE FCC UL ROHS GS EAC
Application :
Modem,Router,Set-top Box,CCTV,LED...
Description

1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma

Product Features

● DOE VI Energy Efficiency

● V0 Level Fireproof Private Mould Housing

● <0.5% Volt ripple,such as 24V Adapter,ripple is <120mV

● MTBF 100000 Hours

● Protection of Over-load,Over Current,Over-temperature,over charger,short circuit...

● No Load Power Consumption less than 0.1W

● AC Input full range from 90V-264VAC

● Insulation Stregth:3500/3S

● Maximum Power 125% Rated Power

● 36 Months Warranty

● Widely use for many filed such as Modem,Router,Lamp,LED,CCTV...

1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma

MODEL ZF120-2401000
OUTPUT DC VOLTAGE 24V1A 12V2A 2.5A
RATED POWER 24W(30W Max)
RIPPLE & NOISE (max.) 100mVp-p
200mvp-p
VOLTAGE TOLERANCE +/-3.0%
LINE REGULATION +/-1.0%
LOAD REGULATION +/-3.0%
SETUP, RISE TIME lOOms,35ms/230VAC lOOms,35ms/115VAC (at full load)
HOLD UP TIME (Typ.) 60ms/230VAC l2ms/115VAC(at full load)
INPUT VOLTAGE RANGE 90~264VAC l27~370VDC
FREQUENCY RANGE 47 ~63Hz
EFFICIENCY(Typ.) 82%
AC CURRENT (Typ.) 1.9A/115VAC 1.lA/230VAC
INRUSH CURRENT (Typ.) COLD START:l8A/ll5VAC 36A/230VAC
LEAKAGE CURRENT < I mA/ 240VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over voltage Protection type : Hiccup mode, recovers automatically after fault condition is removed
FUNCTION REMOTE ON/OFF RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off
ENVIRONMENT WORKING TEMP. -20~+70°C
WORKING HUMIDITY 20~90% RH,non-condensing
STORAGE TEMP., HUMIDITY -20~+ 85°C , 10~95% RH
TEMP. COEFFICIENT +/-0.04%/°C (0~50°C)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & SAFETY STANDARDS UL60950-1,TUVEN60950-1 approved
EMC WITHSTAND VOLTAGE I/p-0/P: 3KVAC ]/p-FG: 1 .5KVAC 0/p-FG: 0.5KVAC
　 ISOLATION RESISTANCE I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC
　 EMC EMISSION Compliance to EN55011,EN55022(ClSPR22)ClassB,EN61000-3-2,'3...

There are EU US UK Brazil AU AC Plug ,and DC connector can be alligator or

5.5*2.1MM,5.5*2.5MM,6.0*3.0MM,4.0*1.7MM,2.5*0.4mm,3.5*1.35mm,

7.5*5.0mm,3.5*1.1MM... all kind of dc jack.

1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma1A 24V Power Supply Adapter V0 Fireproof Housing AC DC Adaptor 24V 100Ma

Please see the below production chart, 90% problem of usb charger power

adapter is usually caused by electronic component,false soldering,

so enough testing step is essential,especially the burn-in test,this is key to

prevent defective electronic part and false soldering,please see the below

blue words part,including the raw material inspection we have 10 step

test.We have inspection for each small step,we have intelligent burn-in

room,our product 100% full load 4 hours burn-in test.After these ten step

testing,our defective rate can be controlled to be less than 0.1%.Much more

lower then average 0.3%.

We use PE bag packing the product first,then come into below kind of carton.In this way the product can be properly protected during transportation.

This power adapter can be used for Router,Modem,LED,Set top box,CCTV,LCD,Digital Frame,Lamp,CVR,... Most of electronic product.

For Shipping, we usually use DHL, TNT, FeDex to ship the sample, they can reach most of area worldwide in 7 days, for large quantity we strongly suggest to by sea ,it can save much more cost.

Our product have Certificate of CE FCC UL GS BIS EAC,KC,ROHS
