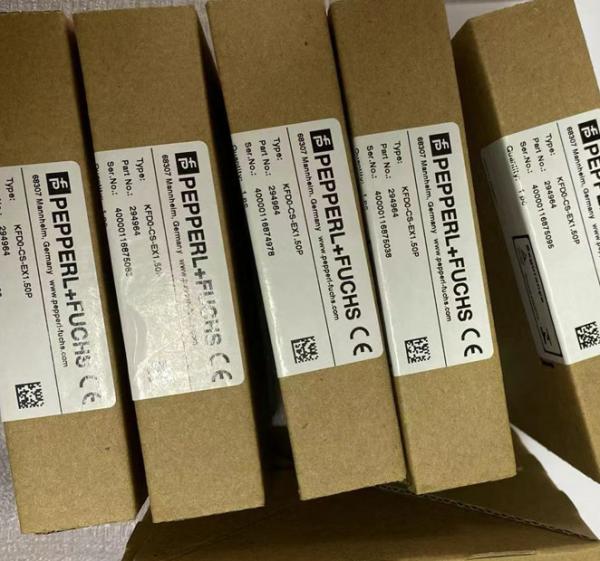

KFD0-CS-EX1.50P PEPPERL FUCHS Isolated Barrier Repeater 1 Channel
KFD0-CS-EX1.50P PEPPERL FUCHS Isolated Barrier Repeater 1 Channel
KFD0-CS-EX1.50P PEPPERL FUCHS Isolated Barrier Repeater 1 Channel
KFD0-CS-EX1.50P PEPPERL FUCHS Isolated Barrier Repeater 1 Channel
Specifications
Brand Name :
PF
Model Number :
KFD0-CS-EX1.50P
Certification :
ATEX
Place of Origin :
Germany
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Alipay, Paypal
Supply Ability :
100pcs per month
Delivery Time :
stock
Packaging Details :
carton
Manufacture :
Pepperl+Fuchs
Model :
KFD0-CS-EX1.50P
Repeater :
Analog input/analog output
Degree of protection :
IP20
Connection :
screw terminals
Rated voltage :
5 ... 35 V DC , loop powered
Ambient temperature :
-20 ... 70 °C (-4 ... 158 °F)
Description

Product Details:
Manufacturer : Pepperl+Fuchs
Product No. : KFD0-CS-EX1.50P
Product Type : Repeater

Features:

  • 1-channel isolated barrier
  • 24 V DC supply (loop powered)
  • Current input/output 4 mA ... 20 mA
  • transmitter power supply
  • Accuracy 0.1 %
  • Reverse polarity protection
  • Up to SIL 2 (SC 3) acc. to IEC/EN

Function

This isolated barrier is used for intrinsic safety applications.

The device can be used as a repeater or transmitter power supply for 2-wire transmitters.

This device is loop powered. No additional power supply has to be connected.

Use the technical data to verify that proper voltage is available to the field devices.

Technical data

1. General specifications
Signal type: Analog input/analog output
2. Functional safety related parameters
Safety Integrity Level (SIL): SIL 2
Systematic capability (SC): SC 3
3. Supply
Rated voltage: 5 ... 35 V DC , loop powered
4. Control circuit
Connection: terminals 12-, 11+
Voltage: 5 ... 35 V DC
Current: 4 ... 20 mA
Power dissipation: at 20 mA and Uin < 24.3 V: < 250 mW per channel
at 20 mA and Uin > 24.3 V: < 500 mW per channel
5. Field circuit
Connection: terminals 1+, 2-
Voltage: for 5V < Uin < 24.3V: ≥ 0.9 x Uin - (0.37 x current in mA) - 1.0
for Uin > 24.3 V: ≥ 21 V - (0.36 x current in mA)
Short-circuit current: at Uin > 24.3 V : ≤ 65 mA
Transfer current: ≤ 40 mA
6. Mechanical specifications
Degree of protection: IP20
Connection: screw terminals
Mass approx. 100 g
Dimensions: 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Height: 107 mm
Width: 20 mm
Depth: 115 mm
Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001
KFD0-CS-EX1.50P PEPPERL FUCHS Isolated Barrier Repeater 1 Channel

Related Models:

KCD2-SCD-EX1 NBB5-18GM50-E2-V1
KCD2-STC-EX1.20 NBB8-18GM60-A2-V1
KFA6-DWB-EX1.D NBN3-F25F-E8-V1
KFA6-SR2-Ex2.W NBN40-U1K-N0
KFD0-CS-Ex1.50P NBN40-U4LK-N0
KFD0-HMS-16 NBVB15-U1.Z2
KFD0-RSH-1.4S.PS2 NCB5-18GM40-NO
KFD0-SD2-EX1.10100 NJ10-30GM-N-5M
KFD0-SD2-EX1.1045 NJ15-30GK-N
KFD2-UT2-1 NJ2-12GK-SN
KFD2-CD-1.32 NJ2-12GM-N
KFD2-CD-EX1.32 NJ4-12GK-SN
KFD2-HMM-16 NJ5-18GK-N
KFD2-SH-EX1.T NJ5-18GK-N-150
KFD2-SH-Ex1.T.OP NJ5-18GM-N
KFD2-SL2-EX2.B NJ8-18GK-N
KFD2-SR2-EX1.W RD0-FB-EX4
KFD2-SR2-Ex2.W RD0-FB-EX4.COM
KFD2-STC5-1.2O SC3,5-G-N0
KFD2-STC5-Ex1 SC3,5-G-N0-5M
KFD2-STC5-Ex1.H SC3,5-G-N0-6M
KFD2-UT2-1 SJ3,5-N
KFD2-VR4-EX1.26 SJ3,5-S1N
KFU8-UFC-1.D UPR-03
KFU8-UFT V15-G-2M
K-HM26-2M-261533 Z 787
NBB15-U1-E2 Z787.H
NBB15-U1-Z2 HIC2031


Company Introduction:
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, Endress+Hauser, YOKOGAWA,MTL,Allen-Bradley, Pepperl+Fuchs,Rosemount, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, Honeywell, Siemens and etc. If you have any request, please do not hesitate to contact us.

FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
