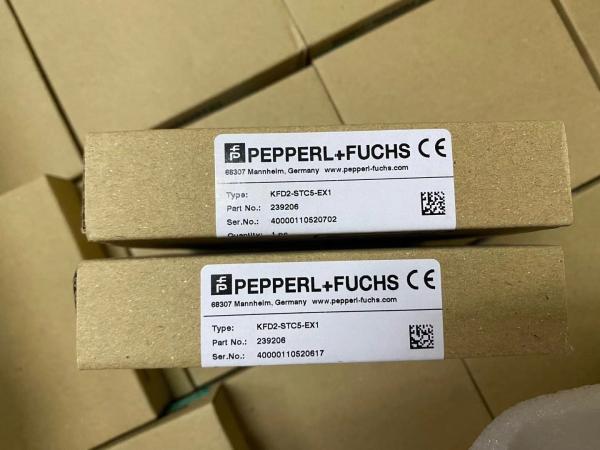

KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel

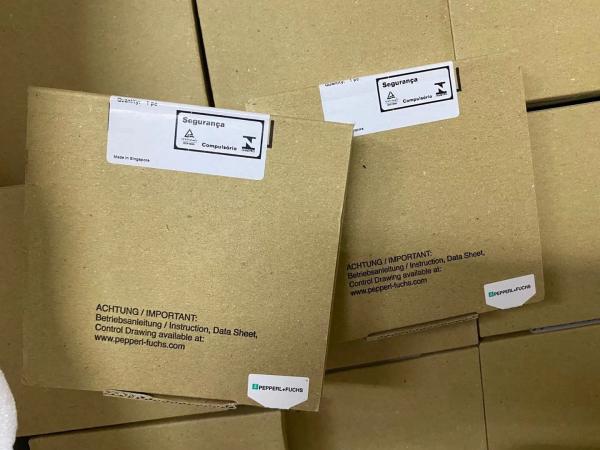

KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel
KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel
KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel
KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel
KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel
KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel
KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel
Specifications
Brand Name :
PF
Model Number :
KFD2-STC5-Ex1
Certification :
ATEX
Place of Origin :
Germany
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Alipay, Paypal
Supply Ability :
100pcs per month
Delivery Time :
stock
Packaging Details :
carton
Manufacture :
Pepperl+Fuchs
Model :
KFD2-STC5-Ex1
Connection :
terminals 1+, 2-, 3
Rated voltage :
18 ... 30 V DC
Input signal :
4 ... 20 mA
Output signa :
4 ... 20 mA (overload > 25 mA)
Ambient temperature :
-20 ... 70 °C (-4 ... 158 °F)
Mass :
approx. 150 g
Description

Product Details:
Manufacturer : Pepperl+Fuchs
Product No. : KFD2-STC5-Ex1
Product Type : SMART Transmitter Power Supply

Features:

  • 1-channel isolated barrier
  • 24 V DC supply (Power Rail)
  • Input 2-wire and 3-wire SMART transmitters and 2-wire SMART current sources
  • Output 4 mA ... 20 mA current sink/current source
  • Terminals with test points
  • Up to SIL 2 acc. to IEC/EN 61508

Technical data

1. General specifications
Signal type: Analog input
2. Functional safety related parameters
Safety Integrity Level (SIL): SIL 2
3. Supply
Connection: Power Rail or terminals 14+, 15-
Rated voltage: 18 ... 30 V DC
Ripple: within the supply tolerance
Power dissipation: ≤ 1 W at maximum load
Power consumption: ≤ 1.6 W at maximum load
4. Input
Connection side: field side
Connection: terminals 1+, 2-, 3
Input signal: 4 ... 20 mA
Open circuit voltage/short-circuit current: terminals 1+, 3: 23 V / 25 mA
Input resistance: max. 265 Ω terminals 2-, 3 , max. 330 Ω terminals 1+, 3
Available voltage: ≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3
5. Output
Connection side: control side
Connection: terminals 7+, 8-, 9- (sink)
terminals 7-, 8+, 9+ (source)
see additional information
Load: 0 ... 800 Ω
Output signal: 4 ... 20 mA (overload > 25 mA)
Ripple: max. 50 µA rms
External supply (loop): 2 ... 30 V DC
If the external voltage is > 19 V, a load ≥ ((V - 19) / 0.02) Ω is required. V represents the value of the external voltage.
The internal 250 Ω resistor at terminal 9 can be used as a load.
6. Transfer characteristics
Deviation: at 20 °C (68 °F), 4 ... 20 mA
≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage
Influence of ambient temperature: ≤ 0.25 µA/K
Frequency range: field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 7.5 kHz (-3 dB)
control side into the field side: bandwidth with 0.5 Vpp signal 0.3 ... 7.5 kHz (-3 dB)
Settling time: 200 µs
Rise time/fall time: 100 µs
7. Galvanic isolation
Output/power supply: functional insulation, rated insulation voltage 50 V AC
8. Indicators/settings
Display elements: LED
Labeling: space for labeling at the front
9. Conformity
Electromagnetic compatibility: NE 21:2012
EN 61326-3-2:2008
Degree of protection: IEC 60529:2001
Protection against electrical shock: UL 61010-1:2012
10. Ambient conditions
Ambient temperature: -20 ... 70 °C (-4 ... 158 °F)
11. Mechanical specifications
Degree of protection: IP20
Connection: screw terminals
Mass: approx. 150 g
Dimensions: 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2
Height: 124 mm
Width: 20 mm
Depth: 115 mm
Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001

KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel KFD2-STC5-Ex1 PEPPERL FUCHS Isolated Barrier SMART Transmitter Power Supply 1 Channel

Related Models:

KCD2-SCD-EX1 NBB5-18GM50-E2-V1
KCD2-STC-EX1.20 NBB8-18GM60-A2-V1
KFA6-DWB-EX1.D NBN3-F25F-E8-V1
KFA6-SR2-Ex2.W NBN40-U1K-N0
KFD0-CS-Ex1.50P NBN40-U4LK-N0
KFD0-HMS-16 NBVB15-U1.Z2
KFD0-RSH-1.4S.PS2 NCB5-18GM40-NO
KFD0-SD2-EX1.10100 NJ10-30GM-N-5M
KFD0-SD2-EX1.1045 NJ15-30GK-N
KFD2-UT2-1 NJ2-12GK-SN
KFD2-CD-1.32 NJ2-12GM-N
KFD2-CD-EX1.32 NJ4-12GK-SN
KFD2-HMM-16 NJ5-18GK-N
KFD2-SH-EX1.T NJ5-18GK-N-150
KFD2-SH-Ex1.T.OP NJ5-18GM-N
KFD2-SL2-EX2.B NJ8-18GK-N
KFD2-SR2-EX1.W RD0-FB-EX4
KFD2-SR2-Ex2.W RD0-FB-EX4.COM
KFD2-STC5-1.2O SC3,5-G-N0
KFD2-STC5-Ex1 SC3,5-G-N0-5M
KFD2-STC5-Ex1.H SC3,5-G-N0-6M
KFD2-UT2-1 SJ3,5-N
KFD2-VR4-EX1.26 SJ3,5-S1N
KFU8-UFC-1.D UPR-03
KFU8-UFT V15-G-2M
K-HM26-2M-261533 Z 787
NBB15-U1-E2 Z787.H
NBB15-U1-Z2 HIC2031
