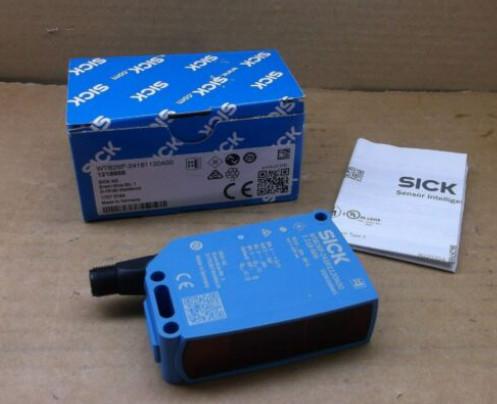

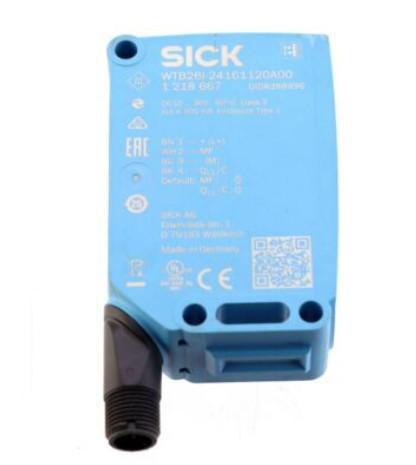

SICK WTB26I-24161120A00 Photoelectric Sensors W26 24.6 Mm X 82.5 Mm X 53.3 Mm
SICK WTB26I-24161120A00 Photoelectric Sensors W26 24.6 Mm X 82.5 Mm X 53.3 Mm
SICK WTB26I-24161120A00 Photoelectric Sensors W26 24.6 Mm X 82.5 Mm X 53.3 Mm
SICK WTB26I-24161120A00 Photoelectric Sensors W26 24.6 Mm X 82.5 Mm X 53.3 Mm
SICK WTB26I-24161120A00 Photoelectric Sensors W26 24.6 Mm X 82.5 Mm X 53.3 Mm
SICK WTB26I-24161120A00 Photoelectric Sensors W26 24.6 Mm X 82.5 Mm X 53.3 Mm
Specifications
Brand Name :
SICK
Model Number :
WTB26I-24161120A00
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Allipay, paypal
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
SICK
Product No :
WTB26I-24161120A00
Part no. :
1218667
Housing :
Rectangular
Connection :
Male connector M12, 4-pin
Weight :
Approx. 80 g
Ambient operating temperature :
–40 °C ... +60 °C
Dimensions (W x H x D) :
24.6 mm x 82.5 mm x 53.3 mm
Description

SICK WTB26I-24161120A00 Photoelectric sensors: W26

Electrical data

Supply voltage UB10 V DC ... 30 V DC 1)
Ripple≤ 5 Vpp
Usage categoryDC-12 (According to EN 60947-5-2)
DC-13 (According to EN 60947-5-2)
Current consumption≤ 30 mA, without load. At UB = 24 V
Protection classIII
Digital output　
Number2 (Complementary)
TypePush-pull: PNP/NPN
Signal voltage PNP HIGH/LOWApprox. UB-2.5 V / 0 V
Signal voltage NPN HIGH/LOWApprox. UB / < 2.5 V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected
　Overcurrent and short-circuit protected
Response time≤ 500 µs 2)
Repeatability (response time)150 µs
Switching frequency1,000 Hz 3)
Pin/Wire assignment　
Function of pin 4/black (BK)Digital output, light switching, object present → output QL1 HIGH; IO-Link communication C 4)
Function of pin 4/black (BK) – detailThe pin 4 function of the sensor can be configured, Additional possible settings via IO-Link
Function of pin 2/white (WH)Digital output, dark switching, object present → output ǬL1 LOW 4)
Function of pin 2/white (WH) – detailThe pin 2 function of the sensor can be configured, Additional possible settings via IO-Link

Mechanical data

HousingRectangular
Dimensions (W x H x D)24.6 mm x 82.5 mm x 53.3 mm
ConnectionMale connector M12, 4-pin
Material　
HousingPlastic, VISTAL®
Front screenPlastic, PMMA
Male connectorPlastic, VISTAL®
WeightApprox. 80 g
Maximum tightening torque of the fixing screws1.3 Nm

SICK WTB26I-24161120A00 Photoelectric Sensors W26 24.6 Mm X 82.5 Mm X 53.3 Mm
