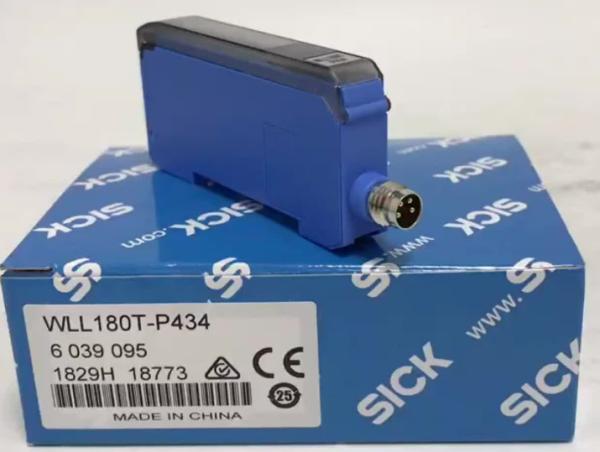

SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
Specifications
Brand Name :
SICK
Model Number :
WLL180T-P434
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Allipay, paypal
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
SICK
Product No :
WLL180T-P434
Device type :
Fiber-optic sensors
Device type detail :
Stand-alone
Type of light :
Visible red light
Indication :
7-segment
Weight :
20 g
Housing material :
Plastic, ABS/PC
Description

SICK WLL180T-P434 Fiber-optic sensors and fibers: WLL180

Features

Device type Fiber-optic sensors
Device type detail Stand-alone
Dimensions (W x H x D) 10.5 mm x 34.6 mm x 71.9 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 20 m (Through-beam system) 1) 2)
Sensing range 0 mm ... 1,400 mm, Proximity system 3) 4)
0 m ... 18 m, Through-beam system 1) 2)
Focus Approx. 65° 5)
Type of light Visible red light
Light source LED 6)
Angle of dispersion Approx. 65° 5)
Wave length 650 nm
Adjustment Menu-controlled
Single teach-in button
Cable
Indication 7-segment
Display LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters

Mechanics/electronics

Supply voltage UB 12 V DC ... 24 V DC 1)
Ripple ≤ 10 % 2)
Current consumption 50 mA 3)
Switching output PNP
Number of switching outputs 1
Switching mode Light/dark switching
Switching mode selector Manually selectable
Response time ≤ 16 µs, ≤ 70 µs, ≤ 250 µs, ≤ 2,000 µs, ≤ 8,000 µs 4)
Switching frequency 31.2 kHz, 7.1 kHz, 2 kHz, 250 Hz, 62.5 Hz
Time functions Without time delay
Off delay
On delay
ON and OFF delay
One shot
Delay time Programmable, 0 ms ... 9,999 ms
Input Multifunctional input MF
Connection type Male connector M8, 4-pin
Circuit protection A 5)
B 6)
C 7)
D 8)
Protection class III
Weight 20 g
Housing material Plastic, ABS/PC
Enclosure rating IP50 9)
Items supplied BEF-WLL180 mounting bracket
Ambient operating temperature –25 °C ... +55 °C
Ambient temperature, storage –40 °C ... +70 °C
UL File No. NRKH.E300503 & NRKH7.E300503

SICK WLL180T-P434 Fiber-optic sensors and fibers WLL180 10.5 mm x 34.6 mm x 71.9 mm
