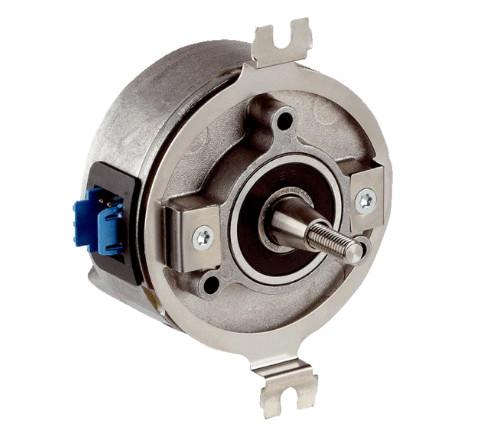

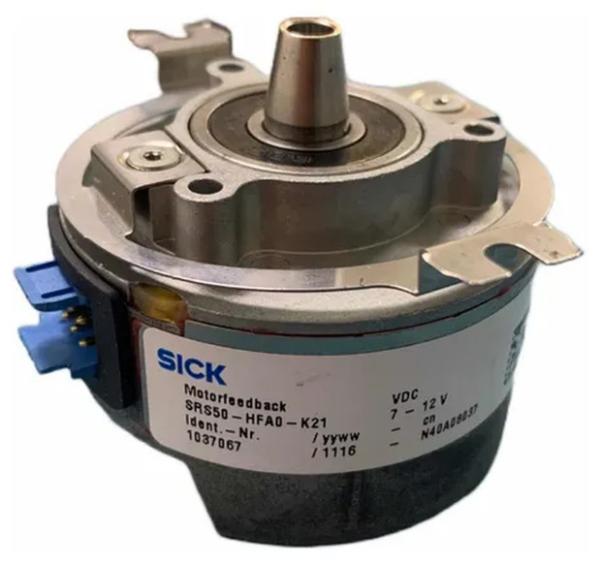

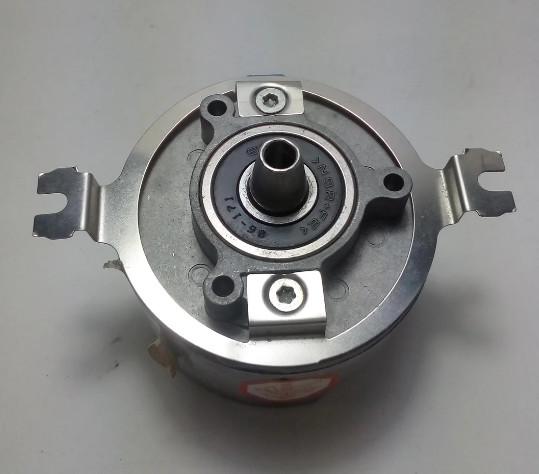

SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC
SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC
SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC
SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC
SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC
SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC
SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC
SICK SRS50-HFA0-K21 Motor Feedback Systems SRS/SRM50 Supply Voltage 7 V DC-12 V DC
Specifications
Brand Name :
SICK
Model Number :
SRS50-HFA0-K21
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Allipay, paypal
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
SICK
Product No :
SRS50-HFA0-K21
Connection type :
Male connector, 8-pin, radial
Supply voltage :
7 V DC ... 12 V DC
Operating torque :
0.2 Ncm
Start up torque :
+ 0.4 Ncm
Shaft version :
Tapered shaft
Weight :
≤ 0.2 kg
Description

SICK SRS50-HFA0-K21 Motor Feedback Systems: SRS/SRM50

Electrical data

Connection typeMale connector, 8-pin, radial
Supply voltage7 V DC ... 12 V DC
Recommended supply voltage8 V DC
Current consumption80 mA 1)
Output frequency for sine/cosine signals≤ 200 kHz
MTTF: mean time to dangerous failure235 years (EN ISO 13849) 2)

Mechanical data

Shaft versionTapered shaft
Flange type / stator couplingSpring mounting plate, Spring mounting plate
DimensionsSee dimensional drawing
Weight≤ 0.2 kg
Moment of inertia of the rotor10 gcm²
Operating speed≤ 12,000 min⁻¹
Angular acceleration≤ 200,000 rad/s²
Operating torque0.2 Ncm
Start up torque+ 0.4 Ncm
Permissible movement static± 0.5 mm radial
± 0.75 mm axial
Permissible movement dynamic± 0.1 mm radial
± 0.2 mm axial
Angular motion perpendicular to the rotational axis, static± 0.005 mm/mm
Angular motion perpendicular to the rotational axis, dynamic± 0.0025 mm/mm
Life of ball bearings3.6 x 109 revolutions

Ambient data

Operating temperature range–30 °C ... +115 °C
Storage temperature range–40 °C ... +125 °C, without package
Relative humidity/condensation90 %, Condensation not permitted
Resistance to shocks100 g, 10 ms, 10 ms (according to EN 60068-2-27)
Frequency range of resistance to vibrations20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
EMCAccording to EN 61000-6-2 and EN 61000-6-3 1)
Enclosure ratingIP40, with mating connector inserted (IEC 60529)
