Specifications
Brand Name :
IFM
Model Number :
IM5135
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
IM5135
Protection :
IP 67; IP 69K
Housing :
rectangular
Electrical design :
PNP
Description

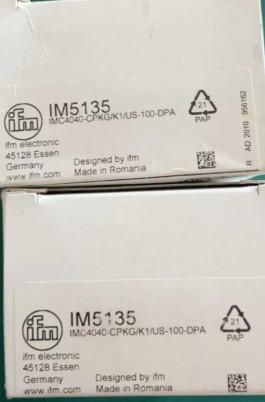

IFMInductive sensor IM5135 IMC4040-CPKG/K1/US-100-DPA

Correction factor K=1: Constant sensing range on all metals

Long sensing range for use in conveying

Complementary output function NO/NC

Five selectable positions of the sensing face

Corner LEDs clearly visible in any mounted position

Electrical design PNP
Output function complementary
Sensing range[mm] 40
Housing rectangular
Dimensions[mm] 40 x 40 x 54

Application

System correction factor = 1; Magnetic-field immune
Magnetic-field immune yes
Max. electromagnetic field immunity[mT] 300

Electrical data

Operating voltage[V] 10...36 DC
Current consumption[mA] < 20
Protection class II
Reverse polarity protection yes

Outputs

Electrical design PNP
Output function complementary
Max. voltage drop switching output DC[V] 2.5
Max. leakage current[mA] 0.1
Permanent current rating of switching output DC[mA] 200
Switching frequency DC[Hz] 200
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes

Monitoring range

Sensing range[mm] 40
Real sensing range Sr[mm] 40 ± 10 %
Operating distance[mm] 0...32.4

Accuracy / deviations

Correction factor steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1
Hysteresis[% of Sr] 1...20
Switch-point drift[% of Sr] -10...10
Correction factor = 1 yes

Operating conditions

Ambient temperature[°C] -25...70
Protection IP 67; IP 69K

Tests / approvals

EMC EN 61000-4-2 ESD8 kV CD / 6 kV ADEN 61000-4-3 HF radiated10 V/mEN 61000-4-4 Burst2 kVEN 61000-4-5 Surge0,5 kV line to line, Ri: 2 OhmEN 61000-4-6 HF conducted10 VEN 55011class B
MTTF[years] 972
UL approval Ta-25...70 °CEnclosure typeType 1voltage supplyClass 2File number ULE174191

Mechanical data

Weight[g] 134
Housing rectangular
Sensing face 5 positions selectable
Mounting non-flush mountable
Dimensions[mm] 40 x 40 x 54
Material housing: PA; sensing face: PA black; end cap: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu)
