Specifications
Brand Name :
IFM
Model Number :
UGT592
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
UGT592
Communication interface :
IO-Link
Teach function :
yes
Description

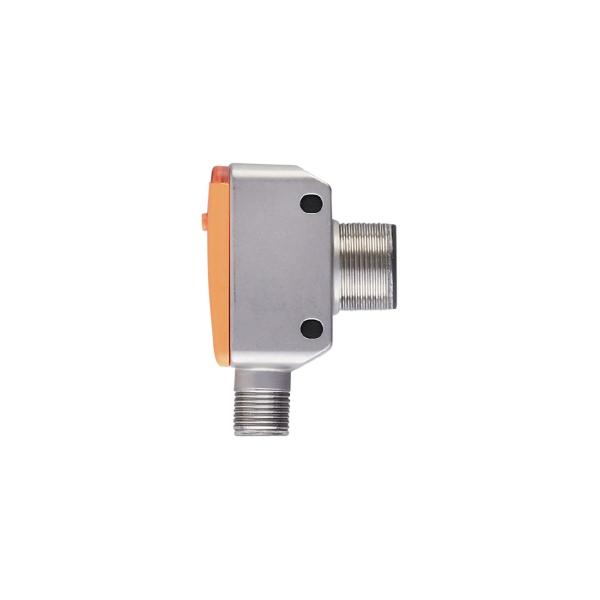

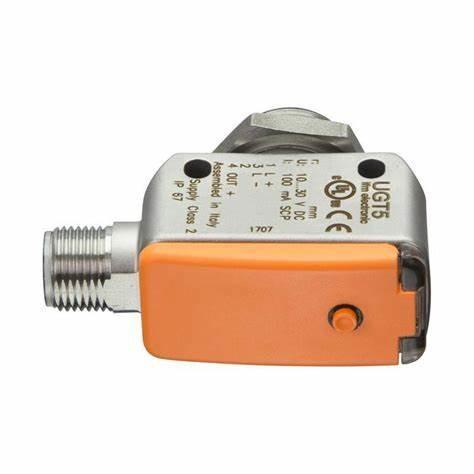

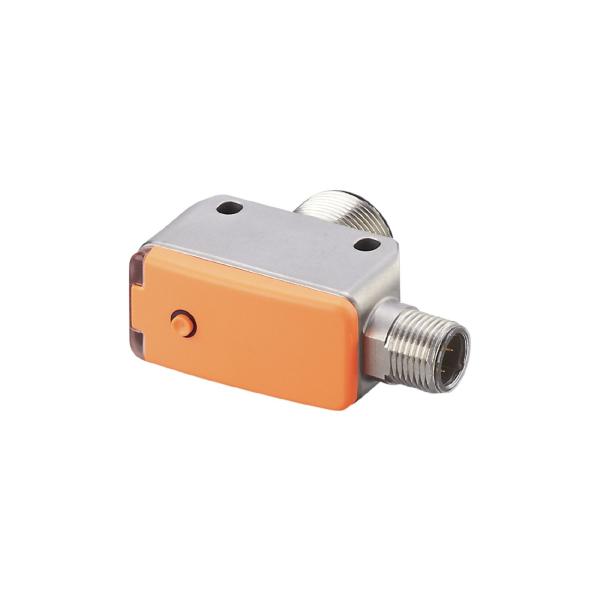

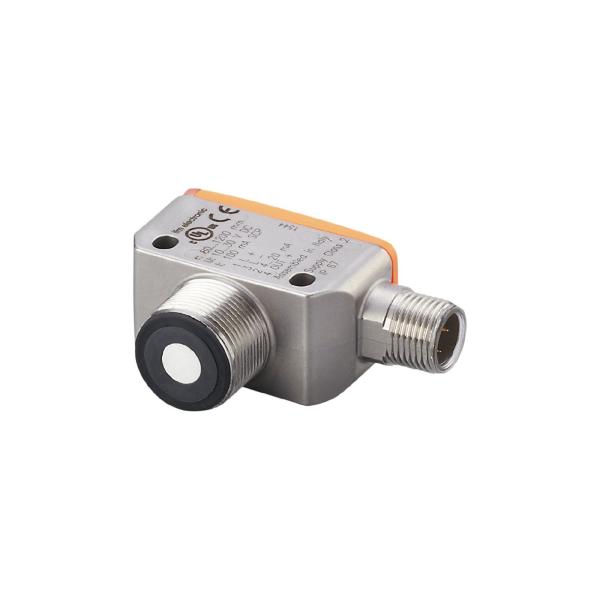

IFM Ultrasonic sensor UGT592 UGQ00300EOKG/IO-Link/US

Robust rectangular metal housing with M18 thread on the side

Particularly space-saving design for use where space is restricted

Non-contact detection independent of color, transparency or surface characteristics of the object

Intuitive setting of the detection range via pushbutton

Electrical design PNP
Output function normally open / closed; (configurable)
Sensing range[mm] 40...300; (Target: 100 x 100 mm)
Communication interface IO-Link
Housing rectangular with M18 thread
Dimensions[mm] 53 x 20 x 37.7

Electrical data

Operating voltage[V] 10...30 DC; (cULus - Class 2 source required)
Current consumption[mA] < 35
Protection class III
Reverse polarity protection yes
Power-on delay time[s] < 0.3
Converter frequency[kHz] 300

Inputs / outputs

Number of inputs and outputs Number of digital outputs: 1

Outputs

Total number of outputs 1
Electrical design PNP
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC[V] 2.2
Permanent current rating of switching output DC[mA] 100
Switching frequency DC[Hz] 8
Short-circuit protection yes
Overload protection yes

Monitoring range

Sensing range[mm] 40...300; (Target: 100 x 100 mm)
Blind zone[mm] 40
Angle of aperture cylindrical[°] 15; (±2)
Max. deviation from the 90° angle sensor/object[°] ± 4

Accuracy / deviations

Temperature compensation yes
Hysteresis[%] < 1
Switch-point drift[%] -2...2
Linearity error of analog output[%] ≤ 1
Repeatability IO-Link[%] < 0,7
Repeatability 1 %
Resolution[mm] 1
Notes on the accuracy / deviation The indicated values are reached after a warm-up time of min. 20 minutes

Software / programming

Parameter setting options hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode

Interfaces

Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
Profiles Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel
SIO mode yes
Required master port class A
Min. process cycle time[ms] 3.2
IO-Link process data (cyclical) Functionbit lengthprocess value16device status4binary switching information2
IO-Link functions (acyclical) application specific tag; operating hours counter
Supported DeviceIDs Type of operationDeviceIDdefault886
Note For further information please see the IODD PDF file at "Downloads"

Operating conditions

Ambient temperature[°C] -20...70
Storage temperature[°C] -30...80
Protection IP 67
