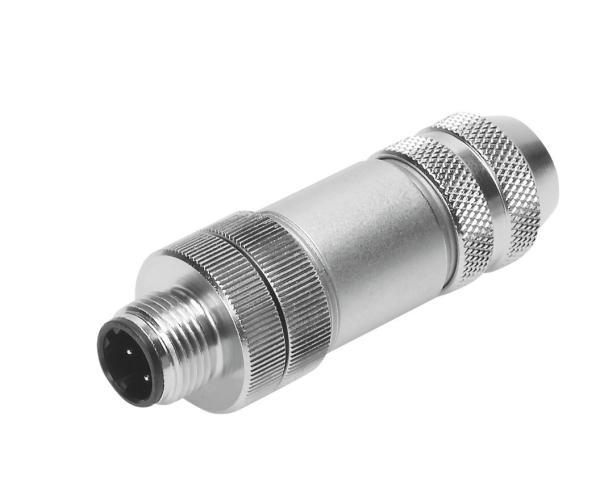

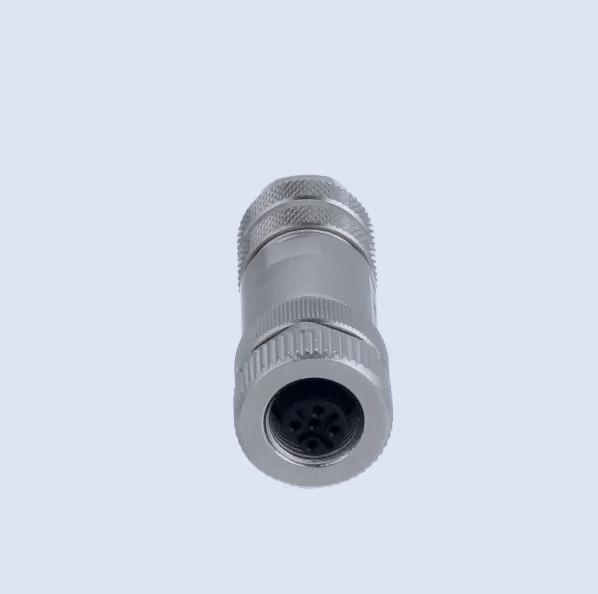

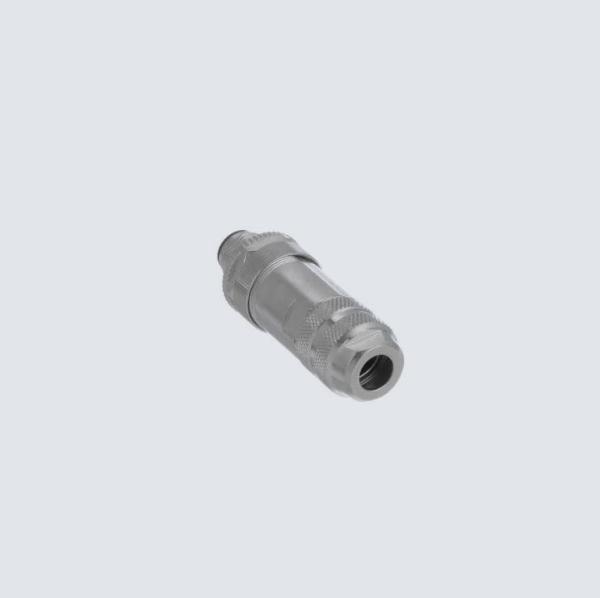

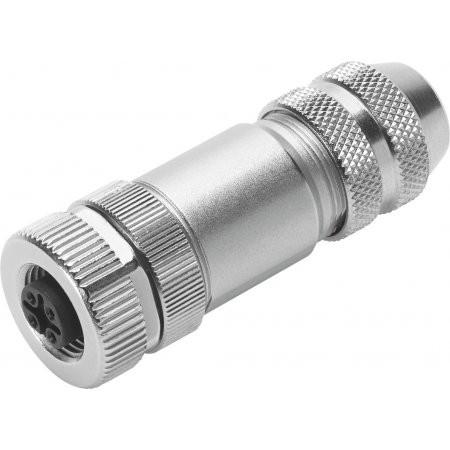

Festo NECU-M-S-D12G4-C2-ET Straight plug, M12x1, 4-pin, D-coded, shieldable
Festo NECU-M-S-D12G4-C2-ET Straight plug, M12x1, 4-pin, D-coded, shieldable
Festo NECU-M-S-D12G4-C2-ET Straight plug, M12x1, 4-pin, D-coded, shieldable
Festo NECU-M-S-D12G4-C2-ET Straight plug, M12x1, 4-pin, D-coded, shieldable
Festo NECU-M-S-D12G4-C2-ET Straight plug, M12x1, 4-pin, D-coded, shieldable
Festo NECU-M-S-D12G4-C2-ET Straight plug, M12x1, 4-pin, D-coded, shieldable
Festo NECU-M-S-D12G4-C2-ET Straight plug, M12x1, 4-pin, D-coded, shieldable
Festo NECU-M-S-D12G4-C2-ET Straight plug, M12x1, 4-pin, D-coded, shieldable
Specifications
Brand Name :
Festo
Model Number :
NECU-M-S-D12G4-C2-ET
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
Festo
Product No :
NECU-M-S-D12G4-C2-ET
Plug coding :
D
DC operating voltage range :
0 V ... 250 V
Surge resistance :
2.5 kV
Approved cable diameter :
6 mm ... 8 mm
Degree of protection :
IP67
Product weight :
44.3 g
Description

Festo NECU-M-S-D12G4-C2-ET Straight plug


Based on norm

EN 61076-2-101

EN 61984

Product weight

44.3 g

Electrical connection 1

Straight plug, M12x1, 4-pin, D-coded, shieldable

Plug coding

D

Electrical connection 2

Screw terminal, can be shielded

DC operating voltage range

0 V ... 250 V

Operating voltage range AC

0 V ... 250 V

Surge resistance

2.5 kV

Transmission characteristics

DIN EN 50173/CAT 5

Approved cable diameter

6 mm ... 8 mm

Connection cross section

0.14 mm² ... 0.75 mm²

Degree of protection

IP67

Ambient temperature

-25 °C ... 85 °C

CE marking (see declaration of conformity)

As per EU low voltage directive

UKCA marking (see declaration of conformity)

To UK instructions for electrical equipment

LABS (PWIS) conformity

VDMA24364-B2-L

Note on materials

RoHS-compliant

Contamination level

3

Corrosion resistance class (CRC)

1 - Low corrosion stress

Housing material

Die-cast zinc, nickel-plated

Material of pin contacts

Brass, gold-plated
