Specifications
Brand Name :
IFM
Model Number :
PQ3834
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
PQ3834
Short-circuit protection :
yes
Electrical design :
PNP
Description

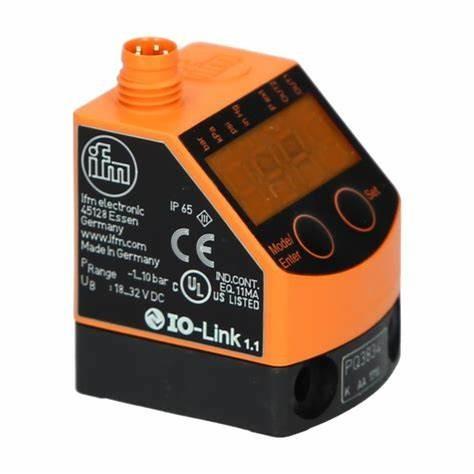

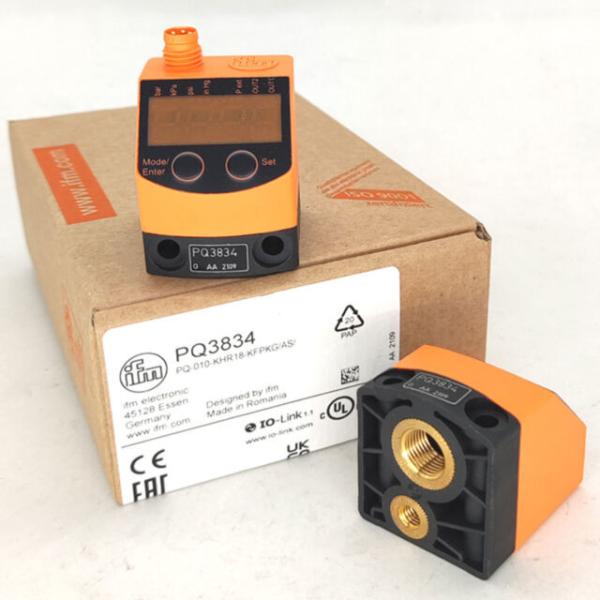

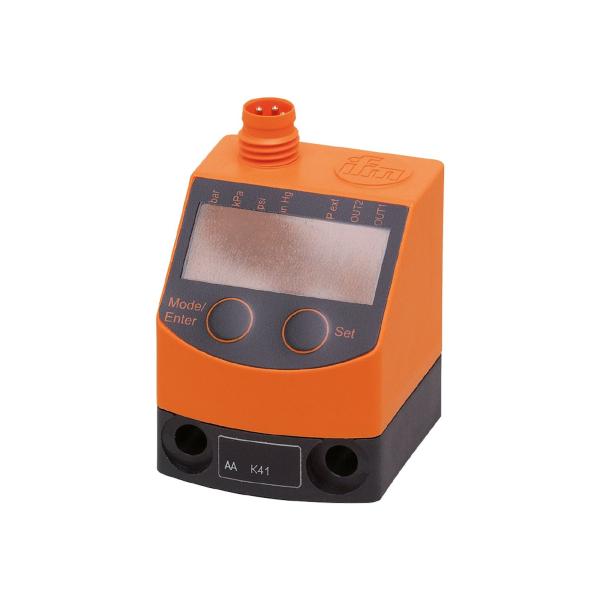

IFM Pressure sensor for pneumatics PQ3834 PQ-010-KHR18-KFPKG/AS/

Reliable monitoring of the system pressure in pneumatics and in compressed air systems

Very high overpressure and vacuum resistance

Clearly visible slanted LED display

Red/green display for clear identification of the acceptable range

With programmable switching output and analog output

Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
Measuring range -1...10 bar-15...145 psi-30...296 inHg-100...1000 kPa
Process connection threaded connection G 1/8 Internal thread Internal thread:M5

Application

System gold-plated contacts
Application for industrial applications
Conditionally suitable for other media on request
Medium temperature[°C] 0...60
Min. bursting pressure 30 bar435 psi886 inHg3000 kPa
Note on min. burst pressure max. overpressure on second pressure connection: 12 bar / 1200 kPa / 174 PSI / 354,4 inHg / 1,2 MPa
Pressure rating 20 bar290 psi591 inHg2000 kPa
Vacuum resistance -1000 mbar-0.1 MPa
Type of pressure relative pressure; differential pressure; vacuum

Electrical data

Operating voltage[V] 18...32 DC; (to SELV/PELV)
Current consumption[mA] < 50
Min. insulation resistance[MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Overvoltage protection yes; (< 40 V)
Power-on delay time[s] 0.5
Integrated watchdog yes

Inputs / outputs

Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1

Outputs

Total number of outputs 2
Output signal switching signal; analog signal; IO-Link; (configurable)
Electrical design PNP
Number of digital outputs 1
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC[V] 2
Permanent current rating of switching output DC[mA] 100
Switching frequency DC[Hz] < 100
Number of analog outputs 1
Analog current output[mA] 4...20
Max. load[Ω] 500
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)

Measuring/setting range

Measuring range -1...10 bar-15...145 psi-30...296 inHg-100...1000 kPa
Set point SP -0.9...10 bar-13...145 psi-26...296 inHg-90...1000 kPa
Reset point rP -0.95...9.95 bar-14...144 psi-28...294 inHg-95...995 kPa
In steps of 0.05 bar1 psi2 inHg5 kPa

Accuracy / deviations

Switch point accuracy[% of the span] < ± 0,5
Repeatability[% of the span] < ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation[% of the span] < ± 0,25
Long-term stability[% of the span] < ± 0,05; (per 6 months)
Temperature coefficient zero point[% of the span / 10 K] 0,2; (0...60 °C)
Temperature coefficient span[% of the span / 10 K] 0,2; (0...60 °C)

Reaction times

Response time[ms] < 6
Delay time programmable dS, dr[s] 0; 0,002...5
Step response time analog output[ms] 6
