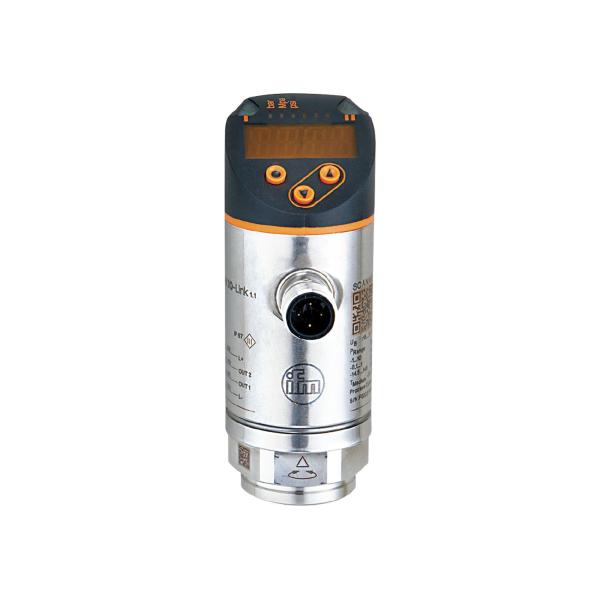

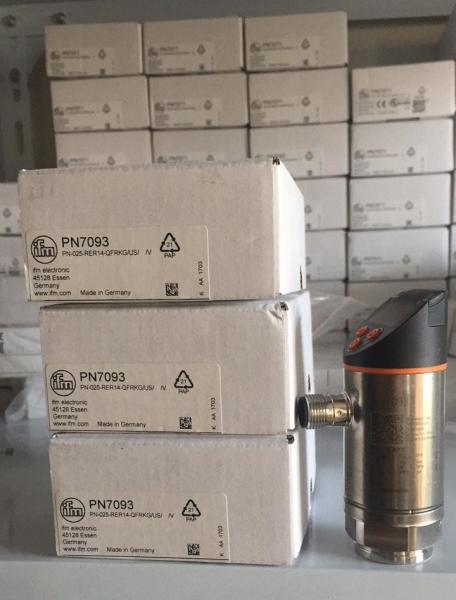

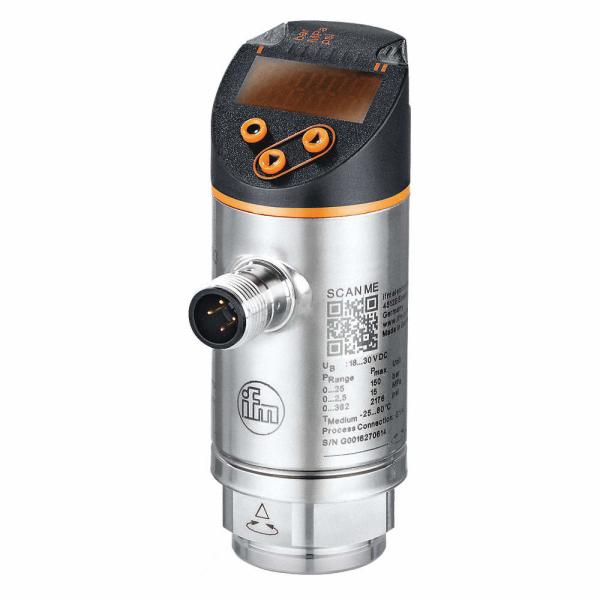

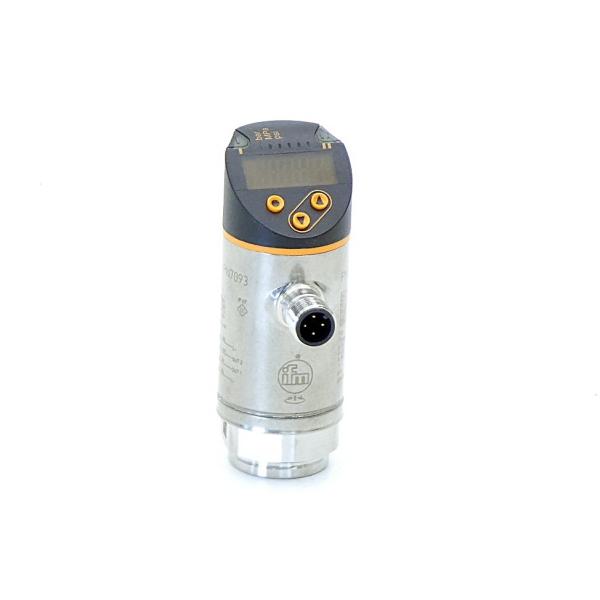

Gold Plated IFM Pressure Sensor With Display PN7093 PN-025-RER14-QFRKG US V
Gold Plated IFM Pressure Sensor With Display PN7093 PN-025-RER14-QFRKG US V
Gold Plated IFM Pressure Sensor With Display PN7093 PN-025-RER14-QFRKG US V
Gold Plated IFM Pressure Sensor With Display PN7093 PN-025-RER14-QFRKG US V
Gold Plated IFM Pressure Sensor With Display PN7093 PN-025-RER14-QFRKG US V
Gold Plated IFM Pressure Sensor With Display PN7093 PN-025-RER14-QFRKG US V
Gold Plated IFM Pressure Sensor With Display PN7093 PN-025-RER14-QFRKG US V
Gold Plated IFM Pressure Sensor With Display PN7093 PN-025-RER14-QFRKG US V
Specifications
Brand Name :
IFM
Model Number :
PN7093
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
PN7093
Type of pressure :
relative pressure
System :
gold-plated contacts
Overload protection :
yes
Housing :
tubular
Description

IFM Pressure sensor with display PN7093 PN-025-RER14-QFRKG/US/ /V

Two switching outputs, one of them with IO-Link communication interface

Red/green display for clear identification of the acceptable range

The process connection can be rotated for optimum alignment

With long-term stability thanks to high overload protection

Robust design for use in harsh industrial environments

Number of inputs and outputs Number of digital outputs: 2
Measuring range 0...25 bar0...362 psi0...2.5 MPa
Process connection threaded connection G 1/4 Internal thread

Application

System gold-plated contacts
Measuring element ceramic-capacitive pressure measuring cell
Application for industrial applications
Media liquids and gases
Conditionally suitable for For gaseous media the application is limited to max. 25 bar.
Medium temperature[°C] -25...80
Min. bursting pressure 350 bar5075 psi35 MPa
Pressure rating 150 bar2175 psi15 MPa
Vacuum resistance -1000 mbar-0.1 MPa
Type of pressure relative pressure

Electrical data

Operating voltage[V] 18...30 DC; (to SELV/PELV)
Current consumption[mA] < 35
Min. insulation resistance[MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Power-on delay time[s] < 0.3
Integrated watchdog yes

Inputs / outputs

Number of inputs and outputs Number of digital outputs: 2

Outputs

Total number of outputs 2
Output signal switching signal; IO-Link; (configurable)
Electrical design PNP/NPN
Number of digital outputs 2
Output function normally open / closed; (configurable)
Max. voltage drop switching output DC[V] 2.5
Permanent current rating of switching output DC[mA] 150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC[Hz] < 170
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes

Measuring/setting range

Measuring range 0...25 bar0...362 psi0...2.5 MPa
