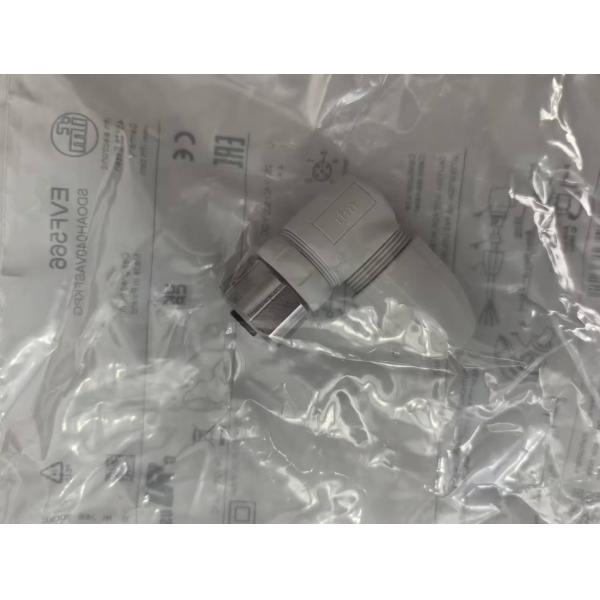

PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
PA 6.6 250VAC 300VDC IFM EVF566 Female Wirable Connectors SDOAH040VASFKPG
Specifications
Brand Name :
IFM
Model Number :
EVF566
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
EVF566
Protection class :
II
Molded-body material :
PA 6.6
Description

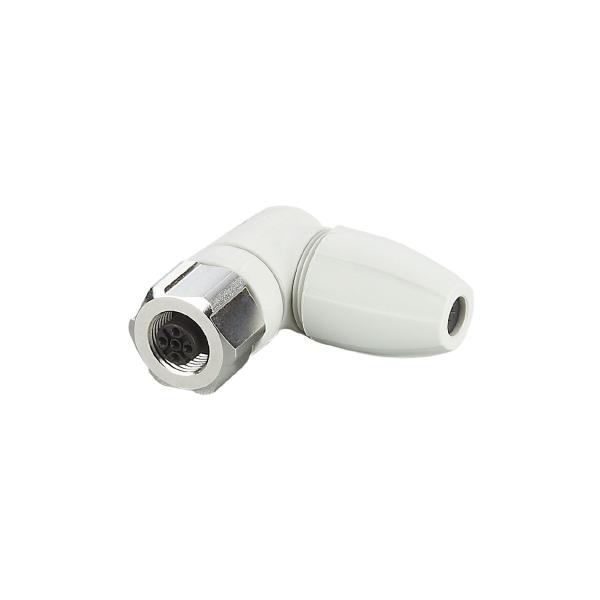

IFM Female wirable connectors EVF566 SDOAH040VASFKPG

Gold-plated contacts for reliable electrical connections

High protection rating for the requirements of harsh industrial environments

Wide operating temperature range

Safe cable connection with screw terminals

System Free from silicone; gold-plated contacts
Application sanitary and wet areas in the food industry
Free from silicone yes

Electrical data

Operating voltage[V] < 250 AC / < 300 DC
Protection class II
Max. current load total[A] 4; (...40 °C)

Operating conditions

Ambient temperature[°C] -25...100
Storage temperature[°C] -25...55
Storage humidity[%] 10...100
Other climatic conditions for storage according to stated class 1K22/ DIN 60721-3-1
Protection IP 65; IP 67; IP 68; IP 69K

Mechanical data

Weight[g] 41.8
Molded-body material PA 6.6
Material nut stainless steel (1.4404 / 316L)
Sealing material EPDM

Remarks

Pack quantity 1 pcs.

Electrical connection

screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17

Electrical connection - Socket

Connection Connector: 1 x M12, angled; coding: A; Moulded body: PA 6.6, grey; Locking: stainless steel (1.4404 / 316L); sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!
