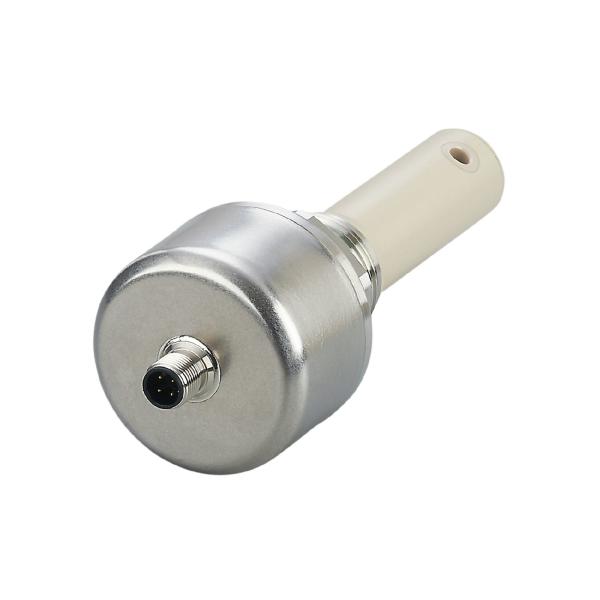

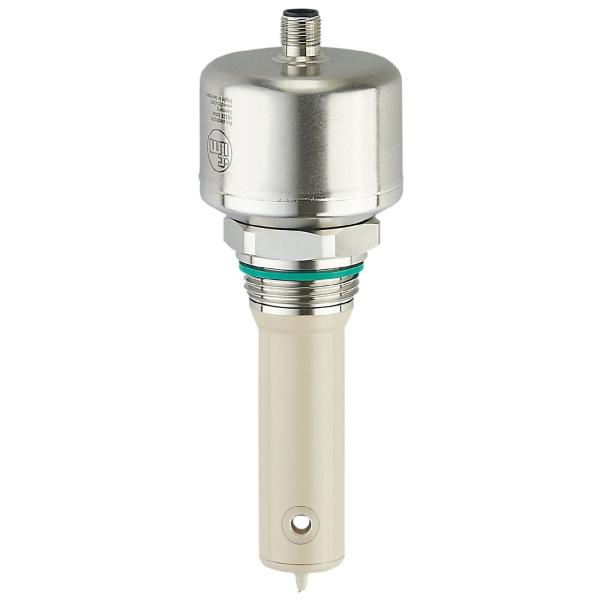

16 Bar 1.6 MPa IFM Inductive Conductivity Sensor LDL201 Ind Conductivity Hyg ASF-V 077
16 Bar 1.6 MPa IFM Inductive Conductivity Sensor LDL201 Ind Conductivity Hyg ASF-V 077
16 Bar 1.6 MPa IFM Inductive Conductivity Sensor LDL201 Ind Conductivity Hyg ASF-V 077
16 Bar 1.6 MPa IFM Inductive Conductivity Sensor LDL201 Ind Conductivity Hyg ASF-V 077
16 Bar 1.6 MPa IFM Inductive Conductivity Sensor LDL201 Ind Conductivity Hyg ASF-V 077
16 Bar 1.6 MPa IFM Inductive Conductivity Sensor LDL201 Ind Conductivity Hyg ASF-V 077
16 Bar 1.6 MPa IFM Inductive Conductivity Sensor LDL201 Ind Conductivity Hyg ASF-V 077
16 Bar 1.6 MPa IFM Inductive Conductivity Sensor LDL201 Ind Conductivity Hyg ASF-V 077
Specifications
Brand Name :
IFM
Model Number :
LDL201
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
LDL201
Measuring principle :
inductive
Pressure rating :
16 bar 1.6 MPa
Description

IFM Inductive conductivity sensor LDL201 IND CONDUCTIVITY HYG ASF-V 077

Reduce inaccuracies associated with a time-based cleaning process

Improve process performance with flexible measurement points

Compact, high-quality sensor design prevents failures and unplanned downtime

Number of inputs and outputs Number of analog outputs: 1
Process connection G 1 external thread Aseptoflex Vario

Application

System gold-plated contacts
Media Conductive liquids
Note on media watermilkCIP liquids
Cannot be used for See the operating instructions, chapter "Function and features".
Medium temperature[°C] -25...100; (< 1 h: 150)
Pressure rating 16 bar1.6 MPa
Vacuum resistance[mbar] -1000

Electrical data

Operating voltage[V] 18...30 DC
Current consumption[mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time[s] 2
Measuring principle inductive

Inputs / outputs

Number of inputs and outputs Number of analog outputs: 1

Outputs

Total number of outputs 1
Output signal analog signal; IO-Link
Output function analog output; scalable; selectable conductivity / temperature
Number of analog outputs 1
Analog current output[mA] 4...20
Max. load[Ω] 500
