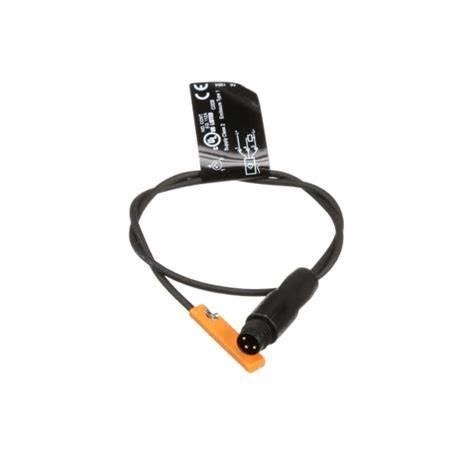

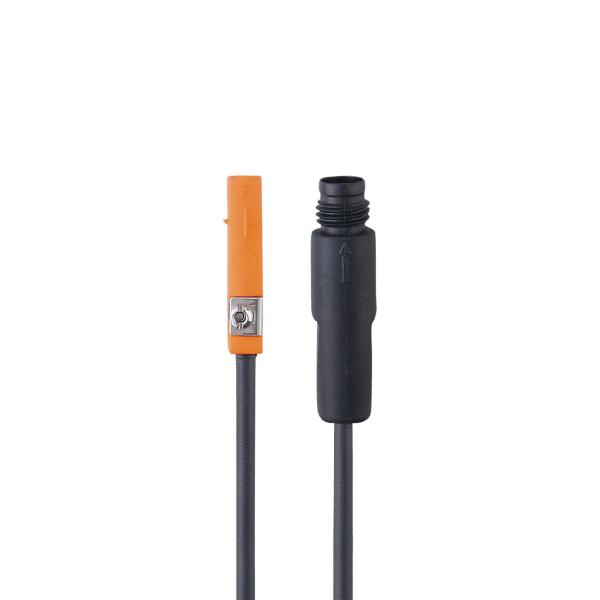

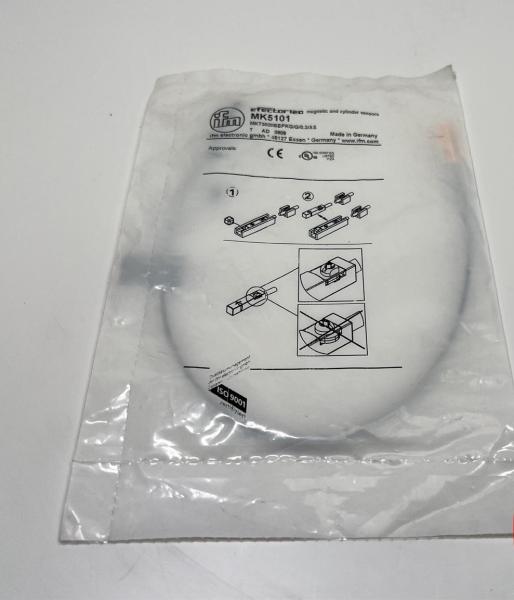

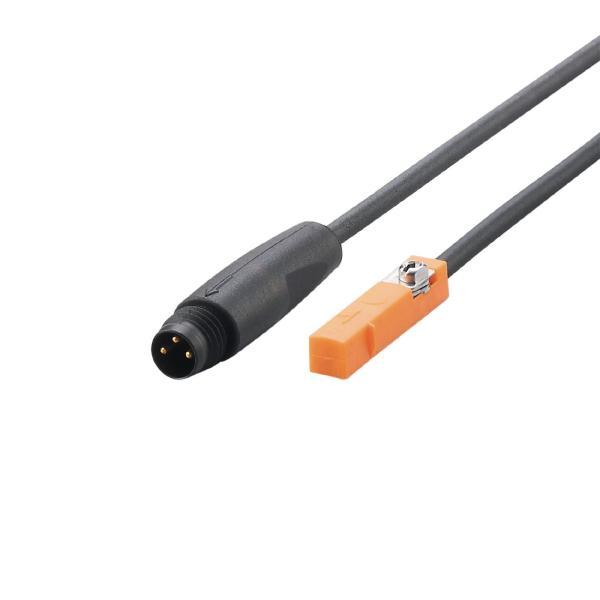

IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS
Specifications
Brand Name :
IFM
Model Number :
MK5101
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
MK5101
Display :
Switching status
Protection :
IP 65; IP 67
Description

IFM T-slot cylinder sensor MK5101 MKT3028BBPKG/G/0,3M/ZH/AS


Self-locking fixture for quick mounting and easy adjustment

Easy fit 'drop from the top' into a slot

Molded cable provides very good strain relief

Clearly visible indication of the switching status

Very high switching frequency


Electrical designPNP
Output functionnormally open
Dimensions[mm]25 x 5 x 6.5

Electrical data

Operating voltage[V]10...30 DC; (cULus - Class 2 source required)
Current consumption[mA]< 10
Protection classIII
Reverse polarity protectionyes
Max. power-on delay time[ms]30

Outputs

Electrical designPNP
Output functionnormally open
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]100
Switching frequency DC[Hz]10000
Short-circuit protectionyes
Type of short-circuit protectionyes (non-latching)
Overload protectionyes

Monitoring range

Magnetic sensitivity[mT]2.8
Travel speed[m/s]> 10

Accuracy / deviations

Hysteresis[mm]< 1.5
Repeatability[mm]< 0.2

Operating conditions

Ambient temperature[°C]-25...85
ProtectionIP 65; IP 67

Tests / approvals

EMCEN 61000-4-2 ESD- CD / 8 kV ADEN 61000-4-3 HF radiated10 V/mEN 61000-4-4 Burst2 kVEN 61000-4-6 HF conducted10 VEN 55011class B
MTTF[years]3694
UL approvalTa-25...75 °CEnclosure typeType 1voltage supplyLimited Voltage/Current (Marking Class 2)UL approval numberC003File number ULE174191

Mechanical data

Weight[g]12.1
Mountingflush mountable
Type of mountingfastening clamp with combined slot / hexagon socket, width across flats 1.5
Cylinder typeT-slot cylinders
Dimensions[mm]25 x 5 x 6.5
Materialhousing: PA; Fastening clamp: stainless steel

Displays / operating elements

DisplaySwitching status1 x LED, yellow

Accessories

Items suppliedrubber memory stop: 1cable clip: 1

Remarks

Pack quantity1 pcs.

Electrical connection - plug

ConnectionCable: 0.3 m, PUR
ConnectionConnector: 1 x M8; coding: A; Locking: snap-fit
