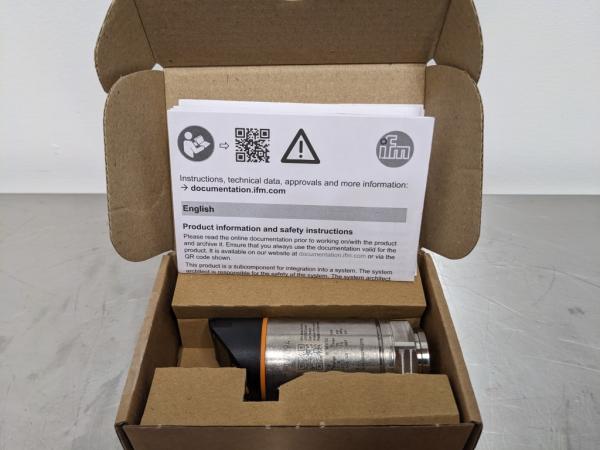

IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V
IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V
IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V
IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V
IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V
IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V
IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V
IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V
Specifications
Brand Name :
IFM
Model Number :
PN7094
Place of Origin :
Germany
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Manufacturer :
IFM
Product No :
PN7094
Communication interface :
IO-Link
Transmission type :
COM2 (38,4 kBaud)
Description

IFM Pressure sensor with displayPN7094 PN-010-RER14-QFRKG/US/ /V


Two switching outputs, one of them with IO-Link communication interface

Red/green display for clear identification of the acceptable range

The process connection can be rotated for optimum alignment

With long-term stability thanks to high overload protection

Robust design for use in harsh industrial environments




Number of inputs and outputsNumber of digital outputs: 2
Measuring range-1...10 bar-14.5...145 psi-0.1...1 MPa
Process connectionthreaded connection G 1/4 Internal thread

Application

Systemgold-plated contacts
Measuring elementceramic-capacitive pressure measuring cell
Applicationfor industrial applications
Medialiquids and gases
Medium temperature[°C]-25...80
Min. bursting pressure150 bar2175 psi15 MPa
Pressure rating75 bar1087 psi7.5 MPa
Vacuum resistance-1000 mbar-0.1 MPa
Type of pressurerelative pressure; vacuum

Electrical data

Operating voltage[V]18...30 DC; (to SELV/PELV)
Current consumption[mA]< 35
Min. insulation resistance[MΩ]100; (500 V DC)
Protection classIII
Reverse polarity protectionyes
Power-on delay time[s]< 0.3
Integrated watchdogyes

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2

Outputs

Total number of outputs2
Output signalswitching signal; IO-Link; (configurable)
Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / closed; (configurable)
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC[Hz]< 170
Short-circuit protectionyes
Type of short-circuit protectionyes (non-latching)
Overload protectionyes

Measuring/setting range

Measuring range-1...10 bar-14.5...145 psi-0.1...1 MPa
