Specifications
Brand Name :
MTL
Model Number :
MTL661
Certification :
HART
Place of Origin :
UK/China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
1000pcs per week
Delivery Time :
stock
Packaging Details :
carton
Manufacturer :
MTL Instruments
Product No :
MTL661
Input range :
4-20mA
Accuracy at 20°C :
± 0.01mA
Shipping weight :
1kg
quality guarantee :
1 year
Description

MTL661 Powered 4–20mA Loop Indicators Displays 4–20mA loop

The MTL600 range of digital indicators enable process variables to be displayed locally in hazardous and general purpose plant areas.

A typical example would be the re-transmission of mass/flow computations from the safe area, through a suitable MTL IS interface to the indicator in the hazardous area.


The displays are loop powered from the 4-20mA process signal and their low voltage drop allows them to be installed in almost any 2-wire, 4–20mA transmitter loop.

All units can indicate measured values in a linear or a square root extraction mode; the latter being used, for example, to display flow from differential pressure measurement devices such as orifice plates, Dall tubes, or venturi.

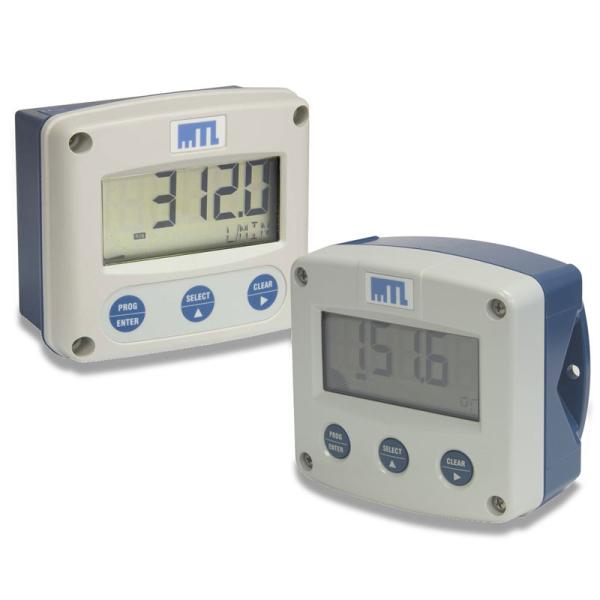

The MTL661 Field mounting unit is housed in a tough aluminium enclosure, suitable for wall or pipe mounting. For corrosive atmospheres use the MTL663 - the plastic case provides excellent resistance to harmful contaminents.

The MTL665 is the panel mounted version and is IP65, IP66, IP67 and NEMA4 rated.

MTL66x IS indicators are classified as 'non-energy storing’ simple apparatus so they can be inserted into any IS loop without recertification.

Specification

Loop powered 4-20mA input

<1V drop across input terminals

± 0.01mA accuracy at 20°C

Can be added to existing loop without re-certification

Field and panel mounting versions

Choice of case material

5-1/2 digit LCD display, 26mm height (process value); Eleven 8mm digits (process units & current)

Standard unit location: Zone 0, IIC, T4 hazardous area

Zone 2 IP65 certified versions available

Backlight options

Fully programmable by user

Password protected

Mounting accessories
