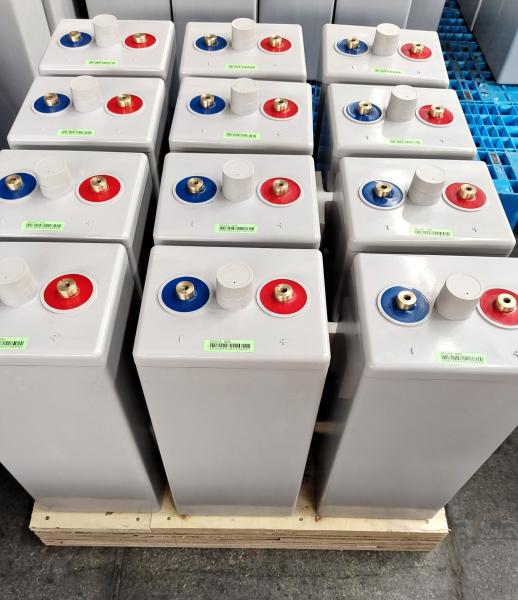

2V 500Ah advanced lead-acid battery series Opzv Gel Storage Battery for energy storage systems
2V 500Ah advanced lead-acid battery series Opzv Gel Storage Battery for energy storage systems
Specifications
Brand Name :
FOBERRIA
Model Number :
OPzV
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T.
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Name :
OPzV battery
Model :
OPzV
Voltage :
2V
Capacity :
500ah
Color :
Gray
Feature :
Low Self Discharge
Application :
Telecom,Electric Utilities,Control Equipments, Security Systems
Description

2V 500Ah advanced lead-acid battery series Opzv Gel Storage Battery for energy storage systems

>Summary

1. OPzV battery series is Valve Regulated Lead Acid battery adopting immobilised GEL and Tubular Plate technology,

offering high reliability and stable performance.

2. OPzV battery series is designed and manufactured according to DIN standards, with die-casted positive grid and patented active

material formula, they exceed the DIN standard values.

3. They offer 20 years design life in float service at 25"C and are more suitable for cyclic use under extreme operating conditions.

4. Suitable for power supply in telecommunication, photovoltaic wind energy storage and UPS applications.


>Main Features

Capacity range: 45Ah-3000Ah

Voltage: 2V/12V

Floating design life (25'C): 20 years (2V)

18 years (12V)

Cycle life: 5500 at 30% DOD (2V)

4800 at 30% DOD (12V)

Self discharge rate < 2%/month;

High charge acceptance performance;

Wide operation temperature: -40C~60"C

Good deep discharge recovery performance.

>Specification For OPzV Battery series

Model Voltage Capacity Internal resistance(mm) Terminal Weight
(V) (Ah) Length Width Height Total Height Type (Kg±5%)
OPzV 200 2 200 103 206 355 410 F12 20
OPzV 250 2 250 124 206 355 410 F12 24
OPzV 300 2 300 145 206 355 410 F12 28
OPzV 350 2 350 124 206 471 526 F12 31
OPzV 420 2 420 145 206 471 526 F12 35
OPzV 500 2 500 166 206 471 526 F12 41
OPzV 600 2 600 145 206 646 701 F12 49
OPzV 800 2 800 191 210 646 701 F12 65
OPzV 1000 2 1000 233 210 646 701 F12 80
OPzV 1200 2 1200 275 210 646 701 F12 93
OPzV 1500 2 1500 275 210 796 851 F12 117
OPzV 2000 2 2000 397 212 772 827 F12 155
OPzV 2500 2 2500 487 212 772 827 F12 192
OPzV 3000 2 3000 576 212 772 827 F12 228
>Application


1. Telecommunication


2. Photovoltaic Systems


3. Wind Energy System


4. UPS systems


5. Power storage plant


6. Military

>Structure and composition

1. Electrolyte: gel electrolyte uses imported silica, special tenichnics make it in a gel immobilized state, safer than AGM type battery;

special additives make it very stable, lower internal resistance and no stratification;

2. Positive plate: tubular type ,with die- casting thick Pb-Ca grid; it has very good corrosion resistance and a very long service life;

3. Negative plate: pasted flat type, radial grid design ,good high rate discharge performance;

4. Separator: PVC-SiO2 separator imported from Europe, low internal resistance, high pore rate and long life;

5. Flooded electrolyte design: contain more electrolyte like a floodedbattery, space between plates and separators is full of electrolyte

thus means good heating capacity and avoid "thermal runaway";

6. Safety valves: good sensitivity, safe and reliable , equipped with double flame arrester/acid filter;

7. Battery case: made of high strength ABS and durable design.

>Production process
2V 500Ah advanced lead-acid battery series Opzv Gel Storage Battery for energy storage systems
>Workshop scene
2V 500Ah advanced lead-acid battery series Opzv Gel Storage Battery for energy storage systems

>Competitive Advantage

1. Sealed construction,safty and no leakage;

2. Maintenance-free,convenient for installation;

3. Broad operating temperature range;

4. High capability,high energy density;

5. Low self-discharge tate,more deep cycle times;

6. Long service life,excellent recharge and discharge time than other batteries.
