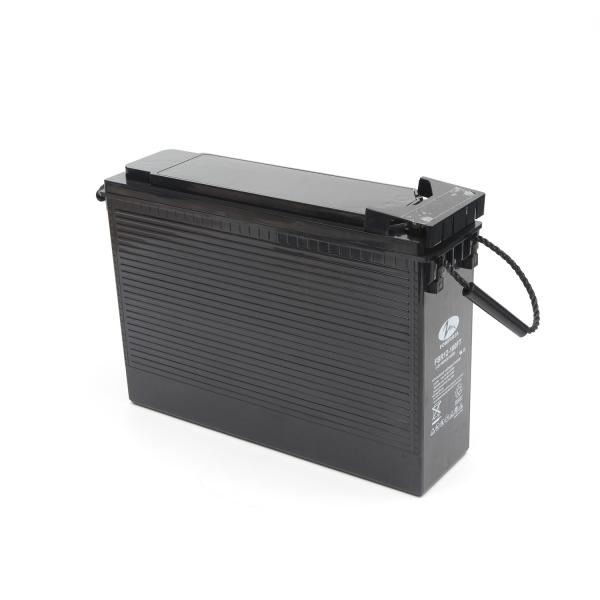

AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
Specifications
Brand Name :
FOBERRIA
Model Number :
FT12-150
Certification :
CE IEC
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Sealed Type :
Sealed
Voltage :
12V
Capacity :
150AH
Plates :
Lead Calcium
Battery Size :
551/110/287mm
Terminal :
F14
Battery type :
GEL
Maintenance Type :
Free
Usage :
UPS
Customization :
Customized logo and packaging
Description

AGM manufacture price Front Terminal 12v 150ah Deep Cycle Battery

>Precautions

• Always handle batteries with care.

• Always store upright.

• Never over-fill with acid.

• Always charge in a well ventilated place.

• Always wear eye protection when handling batteries.

• Wear protective clothing if there is any rick of acid splashing.

>Specification
​
Cells Per Unit 6
Voltage Per Unit 12
Capacity

100Ah @10hr-rate to 1.80V per

cell @ 25℃

150Ah @10hr-rate to 1.80V per

cell @ 25℃

200Ah @10hr-rate to 1.80V per

cell @ 25℃
Weight 31.0KG 43.5KG 61.0KG

Max.

Discharge Current

 1000A(5 sec) 1500A(5 sec) 1000A(5 sec)
Internal Resistance Approx. 5.5mΩ Approx. 5.0 mΩ Approx. 4.5 mΩ
Recommended Maximum Charging Current Limit

30A

45A

 60A
Operating Temperature Range Discharge: -20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃
Normal Operating Temperature Range 25℃ ± 5 ℃
Float charging Voltage 13.6 to 13.8V DC/unit Average at 25℃
Equalization and Cycle Service 14.4to 14.6V DC/unit Average at 25℃
Self Discharge Front triminal batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using.
Size 410*109*293MM 550*110*290MM 550*125*317MM
>Structure and composition
Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
>Constant Current Discharge Characteristics(A,25ºC)
F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 254 196 117 71.9 43.8 31.2 25.2 21.5 14.8 12.2 6.47
9.9V 246 191 115 70.9 43.6 31.0 25.1 21.4 14.7 12.2 6.46
10.2V 236 184 111 69.1 43.2 30.8 24.9 21.3 14.6 12.2 6.44
10.5V 226 178 108 67.6 42.6 30.6 24.7 21.1 14.5 12.1 6.40
10.8V 213 168 104 65.5 41.5 29.7 24.0 20.5 14.1 12.0 6.36

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 2741 2147 1313 820 508 367 297 255 176 146 77.7
9.90V 2658 2096 1286 808 505 365 295 253 175 146 77.5
10.2V 2549 2017 1247 787 500 362 293 251 174 145 77.3
10.5V 2439 1950 1217 771 493 360 291 250 172 144 76.9
10.8V 2302 1847 1172 747 480 349 282 242 167 143 76.3
>Discharge diagram
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
>Application
① Solar and Wind System
② UPS
③ Electronic Apparatus and Equipment
④ Alarm and Security System
⑤ Communication Power Supply
⑥ DC Power Supply
⑦ Emergency Lighting
⑧ Backup Power for Testing and Measuring Instrument
⑨ Telecommunication System
⑩ Fire Alarm and Security System

>Warning

• Replacement of battery shall be performed as per following order. If failed, it may cause fire and explosion. Remove cable from negative terminal first.Connect cable to negative terminal last.

• When connect cable to battery, make sure not to get changed post of +and -. It may cause the damage of electronic components or fire.

• When ueing the battery ,handle with care,sulfuric acid may cause blindness or severe burn.

>Caution

• When moving battery, be careful not to drop the battery , which is heavy, Do not shake the battery with handle, if there is the handle, It may cause the injury.

• Do not shore the battery at the following places. High temperature and humidity. Being exposed to rain,snow, direct sunshine.

AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
>Production process
AGM Front Terminal 12v 150ah Deep Cycle Battery For UPS
>FAQ
Q1: How to choose the right battery?

A1: Tell us your demand, then our sales will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?

A2: Yes, we have MOQ for mass production, it depends on the different model numbers. 50-500pcs sample order is available.
for sample checking is available.

Q3. Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: How to solve the technical problem?

A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5:. What certificate your company have?

A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.

Q6. What is your warranty time for VRLA battery ?

A6: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.

Q7. Why battery has different capacity at different hour rate?

A7: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current.
For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A.
With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.

Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?

A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.

Q9. How to proceed with an order?

A9. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.

Q10: How about the delivery time?

A10: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
