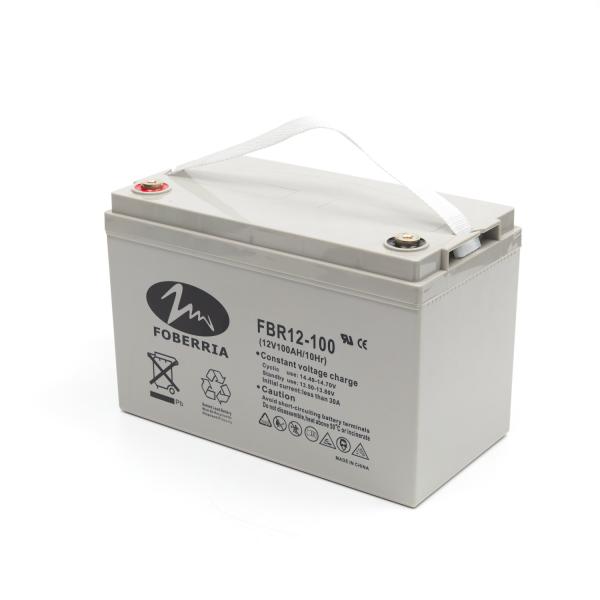

Sealed Lead Acid Battery 12V 90ah 100ah For Back Up Power System
Sealed Lead Acid Battery 12V 90ah 100ah For Back Up Power System
Specifications
Brand Name :
FOBERRIA
Model Number :
FBR12-90; FBR12-100
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Product Name :
Sealed Lead Acid batteries
Model :
FBR12-90; FBR12-100
Volts :
12V
Nominal Capacity :
90AH/100AH
Terminal type :
F14
Case Material :
ABS
Characteristic :
Low Self Discharge
Application :
UPS, Communication System，Electric Power Storage
Color :
Grey or Black
Installation :
Fixed
Rechargeable :
Rechargeable
Electrolyte :
acid battery
ODM/ODM :
Acceptable
Origin :
Made in China
Terminal :
Copper
Description

Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System

>

  • This SLA battery fits applications like mobility or wheelchair, scrubber, generator, lawn & garden, trolling motors.Also great for commercial customers in schools, healthcare, and property management.
  • This SLA battery is also great for performance cyclical applications. Please note: Do not use in backup or float applications
  • This deep cycle battery has at least 40% more cycles than the general purpose batteries used in the same application
  • This sealed lead acid battery has a maintenance-free and spill proof design.
  • Volume discounts available please call store for details
  • This trusted FOBERRIA SLA battery is backed by a 1 year warranty

> FBR12-90 lead acid battery Specification
Model NO. FBR12-90 FBR12-100
Nominal Voltage 12V 12V
Capacity(25ºC) 10HR(10.8V) 90Ah 100Ah
5HR(10.5V) 79Ah 88Ah
1HR(9.60V) 55.6Ah 61Ah
Dimensions Length 306±2mm 330±2mm
Width 169±2mm 171±2mm
Height 211±2mm 214±2mm
Total height 214±2mm 220±2mm
Approx. Weight 27kg±4% 29.5kg±4%
Terminal type F14 F14
Internal resistance(Fully charged,25ºC) Approx 5mΩ Approx 4.5mΩ
Capacity affected by
temperature(20HR)		 40ºC 102% 102%
25ºC 100% 100%
0ºC 85% 85%
-15ºC 65% 65%
Self-discharge(25ºC) 3month Remaining Capacity:91% Remaining Capacity:91%
6month Remaining Capacity:82% Remaining Capacity:82%
12month Remaining Capacity:65% Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF) 25ºC±3ºC(77ºF±5ºF)
Operating
temperature range		 Discharge -15ºC-50ºC(5ºF-122ºF) -15ºC-50ºC(5ºF-122ºF)
Charge -10ºC-50ºC(14ºF-122ºF) -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF) -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage(25ºC) 13.5 to 13.8V
Temperature compensation:-18mV/ºC		 13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage(25ºC) 14.5 to 15.00V
Temperature compensation:-30mV/ºC		 14.5 to 15.00V
Temperature compensation:-30mV/ºC
Max charging current 27A 30A
Max discharging current 800A(5sec.) 800A(5sec.)
Max discharging current 10years 10years
> Structure and composition
Component Pos. plate Neg. plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 82.8 63.8 38.2 23.5 13.9 9.88 7.98 6.82 4.69 3.87 2.05
9.9V 80.4 62.3 37.4 23.1 13.8 9.83 7.94 6.78 4.66 3.86 2.05
10.2V 77 60 36.3 22.5 13.7 9.76 7.88 6.73 4.63 3.85 2.04
10.5V 73.7 58 35.4 22.1 13.5 9.69 7.83 6.69 4.6 3.83 2.03
10.8V 69.6 54.9 34.1 21.4 13.1 9.4 7.59 6.49 4.46 3.8 2.01

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 895 701 428 268 161 116 93.9 80.6 55.7 46.2 24.6
9.90V 868 684 420 264 160 116 93.3 80.2 55.4 46.1 24.6
10.2V 832 659 407 257 158 115 92.7 79.6 55 46 24.5
10.5V 796 636 397 252 156 114 92.1 79.1 54.6 45.7 24.3
10.8V 752 603 383 244 152 111 89.3 76.7 53 45.4 24.2
>Discharge diagram
Sealed Lead Acid Battery 12V 90ah 100ah For Back Up Power System
Sealed Lead Acid Battery 12V 90ah 100ah For Back Up Power System
> Application

1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);

2. Wind Power System;

3. UPS and computer backup power;

4. Telecommunication system;

5. Power station System;

6. Railway System;

7. Emergency lighting system;

8. Automatic control system;

9. Alarm system for fire protection, security.

Sealed Lead Acid Battery 12V 90ah 100ah For Back Up Power System
>Assembling
Sealed Lead Acid Battery 12V 90ah 100ah For Back Up Power System
