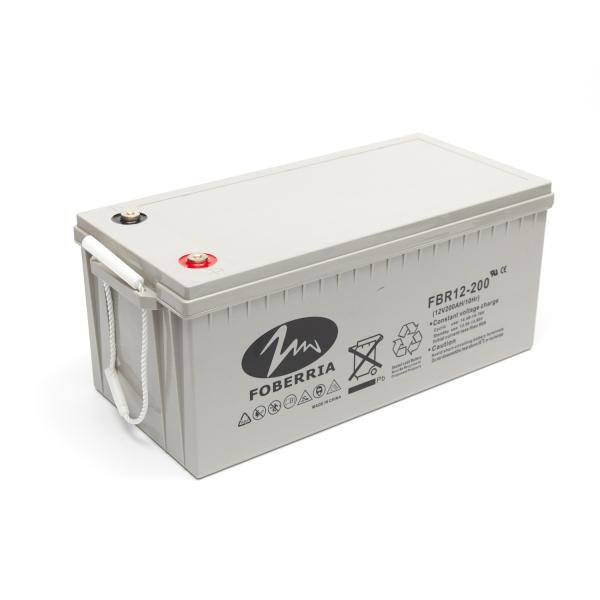

Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
Specifications
Brand Name :
FOBERRIA
Model Number :
FBR12-200
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Name :
UPS battery
Model :
FBR12-200
Voltage :
12V
Capacity :
200AH
Size :
552*238*221mm
Weight :
59.5kg±4%
Terminal :
F13
Color :
Grey/black
Feature :
Low Self Discharge
Application :
UPS,Solar system
Long life :
12 years
Description

Factory lead acid battery capacity 200ah solar lead acid battery 12v lead acid battery voltage

>Product description

1. Cover:Made of ABS plastic;


2. Negative plates:Use the special pbca alloy grids, optimize the recombination efficiency and less gassing.


3. AGM Separator:High quality AGM separator.

4. Postive plates:Pbca grids minimize corrosion and prolong life.

5. Terminal post:Copper material with maximum conductivity,enchance the high current rapidly.

6. Vent valve:Allows the release of excess gas automatically for safety.

> Main Features

1. Excellent safety performance:No electtolyte leakage,battery swelling and cracking under normal use.


2. Good discharging performance : with smooth discharging voltage and mild discharging platform.


3. Good resistance to overdischarge:In temperature of 25 degrees celsius, the fully charged battery discharges with fixed resistance

which is equivalent to the one required by 1ca discharge of the battery for three weeks, and it can restore capacity over 75%.


4. Good resistance to overcharge:The fully charged battery is proved to maintain normal open circuit voltage and be without leakage or batteries

swelling or cracking in temperature of 25 degrees celsius after charging at 0.1ca for 48 hours, and the capacity maintain over 95%.


5. Good resistance to high current:The fully charged battery is proved to be without conductive part melted or any appearance deformation after

discharging at 2ca for 5 minutes or 10ca for 5 seconds.

> Specification
Battery Model No. FBR12-200
Nominal Voltage 12V
Capacity 20HR(10.5V) 200Ah
(25ºC) 10HR(10.5V) 176Ah
1HR(9.6V) 124Ah
Dimension Length 552±2mm
Width 238±2mm
Height 218±2mm
Total height 221±2mm
Approx. Weight 59.5kg±4%
Terminal type F13
Internal resistance(Fully charged,25ºC) Approx 4mΩ
Capacity affected by 40ºC 102%
Temperature(20HR) 25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge(25ºC) 3month Remaining Capacity:91%
6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage
(25ºC)		 13.6 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage
(25ºC)		 14.5 to 15V
Temperature compensation:-30mV/ºC
Max charging current 60A
Max discharging current 1600A(5sec.)
Designed floating life(20ºC) 10years
Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
>Structure and composition
Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper
>Constant Current Discharge Characteristics(A,25ºC)
F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 262 202 121 74.2 43.8 31.2 25.2 21.5 14.8 12.2 6.47
9.9V 254 197 118 73 43.6 31 25.1 21.4 14.7 12.2 6.46
10.2V 243 190 115 71.2 43.2 30.8 24.9 21.3 14.6 12.2 6.44
10.5V 233 183 112 69.7 42.6 30.6 24.7 21.1 14.5 12.1 6.4
10.8V 220 173 108 67.6 41.5 29.7 24 20.5 14.1 12 6.36

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 2825 2214 1353 845 508 367 297 255 176 146 77.7
9.90V 2741 2160 1326 833 505 365 295 253 175 146 77.5
10.2V 2628 2081 1285 812 500 362 293 251 174 145 77.3
10.5V 2514 2010 1254 795 493 360 291 250 172 144 76.9
10.8V 2373 1904 1208 770 480 349 282 242 167 143 76.3
>Discharge diagram
Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
>Production process
Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
>Workshop scene
Capacity 200ah Solar Lead Acid Battery 12v For UPS Solar System
>Application
Control systems, electric toys, emergency lamp, power tools, medical treatment equipment, alarm system,
emergency light system, standby power supply, UPS and computer standby power supply, power system,
telecommunication system, firefighting equipment standby power supply, railway station, ship equipment,
telephone swiching system.
