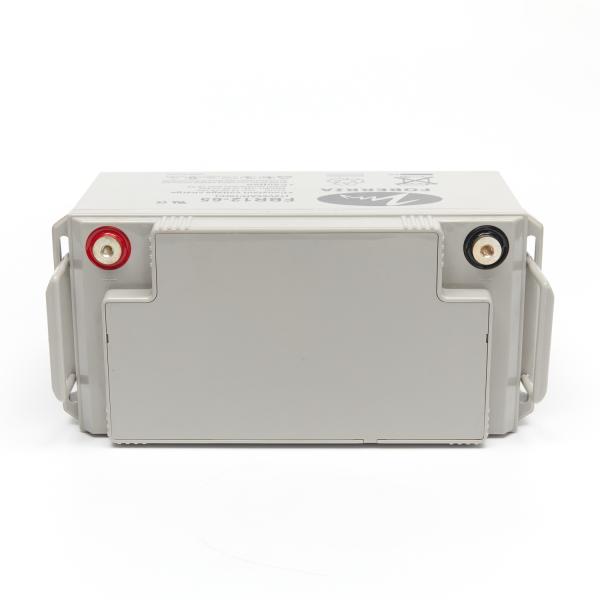

Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery
Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery
Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery
Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery
Specifications
Brand Name :
FOBERRIA
Model Number :
FBR12-65
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Product Name :
Sealed Lead Acid batteries
Model :
FBR12-65
Volts :
12V
Nominal Capacity :
90AH/100AH
Terminal type :
F14
Case Material :
ABS
Characteristic :
Low Self Discharge
Application :
UPS, Communication System，Electric Power Storage
Color :
Grey or Black
Installation :
Fixed
Rechargeable :
Rechargeable
Electrolyte :
acid battery
ODM/ODM :
Acceptable
Origin :
Made in China
Terminal :
Copper
Description

Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery

> Model list
Model NO. FBR12-90 FBR12-65
Nominal Voltage 12V 12V
Capacity(25ºC) 10HR(10.8V) 90Ah 65Ah
5HR(10.5V) 79Ah 57Ah
1HR(9.60V) 55.6Ah 40Ah
Dimensions Length 306±2mm 350±2mm
Width 169±2mm 167±2mm
Height 211±2mm 175±2mm
Total height 214±2mm 175±2mm
Approx. Weight 27kg±4% 29.5kg±4%
Terminal type F14 F14
Internal resistance(Fully charged,25ºC) Approx 6mΩ Approx 4.5mΩ
Capacity affected by
temperature(20HR)		 40ºC 102% 102%
25ºC 100% 100%
0ºC 85% 85%
-15ºC 65% 65%
Self-discharge(25ºC) 3month Remaining Capacity:91% Remaining Capacity:91%
6month Remaining Capacity:82% Remaining Capacity:82%
12month Remaining Capacity:65% Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF) 25ºC±3ºC(77ºF±5ºF)
Operating
temperature range		 Discharge -15ºC-50ºC(5ºF-122ºF) -15ºC-50ºC(5ºF-122ºF)
Charge -10ºC-50ºC(14ºF-122ºF) -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF) -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage(25ºC) 13.5 to 13.8V
Temperature compensation:-18mV/ºC		 13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage(25ºC) 14.5 to 15.00V
Temperature compensation:-30mV/ºC		 14.5 to 15.00V
Temperature compensation:-30mV/ºC
Max charging current 19.5A 30A
Max discharging current 650A(5sec.) 800A(5sec.)
Max discharging current 10years 10years


> Overview

FOBERRIA sealed lead acid batteries provide high performance and brilliant reliability in long period cycling use.

FOBERRIA supplies and distributes solar panels and various types of equipment. We specialise in designing different types of batteries which include Lead Acid battery and Lithium battery.

Our battery products are widely used in UPS, Motorcycle, Electric vehicle, Tourist car, Marine Equipment, Electric Power System, Solar Power System, Wind Power System, etc.

Sealed deep cycle Lead acid batteries provided with high integrity and reliability for commerical ,industral, and private applications.
Our standard Sealed deep cycle lead acid betteries are designed to deliver consistent and dependable performance.
Available in a wide range of footprints, the CE / ISO9001 standard Sealed deep cycle lead acid batteries are non-hazardous and
compatible with sensitive electronic equipment.
> Structure and composition
Component Pos. plate Neg. plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper
Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery

> Main Features

1. Maintenance free sealed lead acid battery

As it is valve-regulated sealed lead acid battery.sealed and glass mat is used .acid is trapped inside. so refilling is not needed and is

leak proof.

2. Low self discharge

The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room .temperature compared with 20-30%

for other common battery systems.

3.Over 99.99% virgin lead for grid plate and active material

4.Heavy duty grid/paste design for deep cycle application

5.Maintenance free, non-spillable, valve regulated

6.Double separator configuration: long cycle life and high energy density and super anti-vibration design

> Application

1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);

2. Wind Power System;

3. UPS and computer backup power;

4. Telecommunication system;

5. Power station System;

6. Railway System;

7. Emergency lighting system;

8. Automatic control system;

9. Alarm system for fire protection, security.

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 82.8 63.8 38.2 23.5 13.9 9.88 7.98 6.82 4.69 3.87 2.05
9.9V 80.4 62.3 37.4 23.1 13.8 9.83 7.94 6.78 4.66 3.86 2.05
10.2V 77 60 36.3 22.5 13.7 9.76 7.88 6.73 4.63 3.85 2.04
10.5V 73.7 58 35.4 22.1 13.5 9.69 7.83 6.69 4.6 3.83 2.03
10.8V 69.6 54.9 34.1 21.4 13.1 9.4 7.59 6.49 4.46 3.8 2.01

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 895 701 428 268 161 116 93.9 80.6 55.7 46.2 24.6
9.90V 868 684 420 264 160 116 93.3 80.2 55.4 46.1 24.6
10.2V 832 659 407 257 158 115 92.7 79.6 55 46 24.5
10.5V 796 636 397 252 156 114 92.1 79.1 54.6 45.7 24.3
10.8V 752 603 383 244 152 111 89.3 76.7 53 45.4 24.2
>Discharge diagram
Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery
Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery
>Assembling
Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery
Factory sealed lead acid batteries 12V 65AH Deep Cycle UPS Rechargeable vrla sealed lead acid battery
