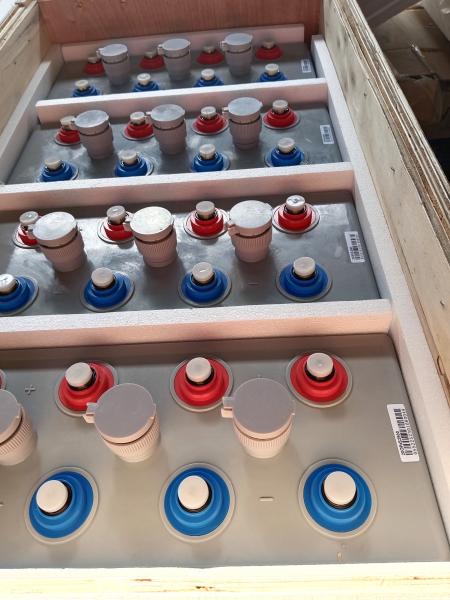

Solar Flood Lead Acid 2V 300AH OPzS Tubular Battery For Electric Utilities
Solar Flood Lead Acid 2V 300AH OPzS Tubular Battery For Electric Utilities
Specifications
Brand Name :
FOBERRIA
Model Number :
OPzS
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T.
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Name :
OPzS battery
Model :
2-300
Voltage :
2V
Size :
145*206*410mm
Capacity :
300ah
Terminal :
F12
Weight :
17.5kgs（without Electrolyte）
Color :
Black,Gray,Customized
Feature :
Low Self Discharge
Application :
Solar system,Telecom,Electric Utilities,Security Systems
Designed floating life :
20+ years
Description

Long life solar battery flood Lead acid battery 2V300AH OPzS tubular for solar system

>Overview

Opzs series is a tubular rich liquid lead-acid battery with a design life of more than 20 years.Opzs series products have superior

performance and high reliability. It is suitable for DC power supply and backup power supply systems with high reliability and

service life requirements, such as power system, nuclear power plant, telecommunications center machine room, etc. it can

also be used in telecommunications, high-power UPS, solar energy, wind energy and other applications.

>Main Features

1. OPzS battery series is Valve Regulated Lead Acid battery adopting immobilised GEL and Tubular Plate technology,

offering high reliability and stable performance.

2. The OPzS battery series is designed and manufactured according to DIN standards, with die-casted positive grid and

patented active material formula, they exceed the DIN standard values.

3. They offer 20 years design life in float service at 25"C and are more suitable for cyclic use under extreme operating conditions.

4. Suitable for power supply in telecommunication, photovoltaic wind energy storage and UPS applications.

>Specification For OPzS Battery series

Voltage Voltage Capacity Internal resistance(mm) Terminal
Type		 Dry Weight
(Kg)		 Wet Weight
(Kg)
(V) (Ah) Length Width Height Total Height
OPzS 200 2 200 103 206 355 410 F12 13 17.5
OPzS 250 2 250 124 206 355 410 F12 15 20.5
OPzS 300 2 300 145 206 355 410 F12 17.5 24
OPzS 350 2 350 124 206 471 526 F12 21 28
OPzS 420 2 420 145 206 471 526 F12 23 32
OPzS 490 2 490 166 206 471 526 F12 26.5 37.5
OPzS 600 2 600 145 206 646 701 F12 35 47
OPzS 800 2 800 191 210 646 701 F12 48 64
OPzS 1000 2 1000 233 210 646 701 F12 58 78
OPzS 1200 2 1200 275 210 646 701 F12 68 92
OPzS 1500 2 1500 275 210 796 851 F12 80 111
OPzS 2000 2 2000 397 212 772 827 F12 110 152
OPzS 2500 2 2500 487 212 772 827 F12 132 185
OPzS 3000 2 3000 576 212 772 827 F12 159 222
>Application

1. Applications


2. Telecom


3. Security Systems


4. Medical Equipments


5. UPS systems


6. Railroad Utilities


7. Photovoltaic Systems


8. Renewable Energy System

>Structure and composition
Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS PVC-SiO2 Sulfuric acid EPDR Copper
>Production process
Solar Flood Lead Acid 2V 300AH OPzS Tubular Battery For Electric Utilities
>Workshop scene
Solar Flood Lead Acid 2V 300AH OPzS Tubular Battery For Electric Utilities

>Competitive Advantage

1. Sealed construction,safty and no leakage;

2. Maintenance-free,convenient for installation;

3. Broad operating temperature range;

4. High capability,high energy density;

5. Low self-discharge tate,more deep cycle times;

6. Long service life,excellent recharge and discharge time than other batteries.

>Cerificate

Solar Flood Lead Acid 2V 300AH OPzS Tubular Battery For Electric Utilities
