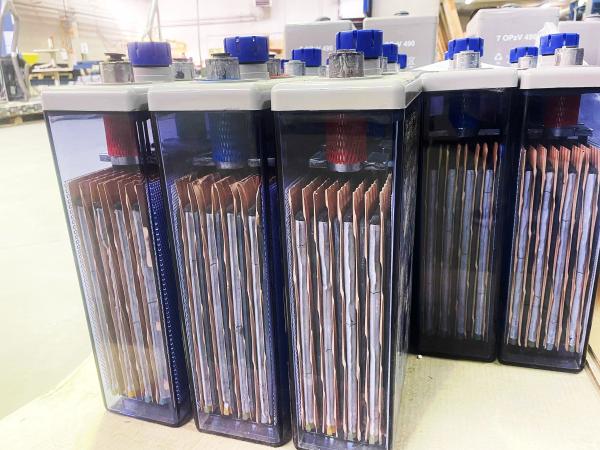

Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
Specifications
Brand Name :
FOBERRIA
Model Number :
OPzS
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T.
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Name :
OPzS battery
Model :
OPzS
Voltage :
2V
Capacity :
300ah
Terminal :
F12
Color :
Black,Gray,Customized
Feature :
Low Self Discharge
Application :
Solar system,Telecom,Electric Utilities,Security Systems
Weight :
17.5kgs（without Electrolyte）
Size :
145*206*410mm
Designed floating life :
20+ years
Description

Flood OPzS Lead acid battery long life battery 2V 300ah-3000ah super longlife 20+years

>Overview

OPzS series is a flooded Lead Acid battery that adopts Tubular Plate technology to offer high reliability and performance. The Battery is designed and manufactured according to IEC60896-11 standards and with die-casting positive spine and patent formula of active material. OPzS series with more than 20 years floating design life at 25℃ and is even more suitable for cyclic use(solar/wind energy, traction etc) under extreme operating conditions.

>Main Features

1. OPzS battery series is Valve Regulated Lead Acid battery adopting immobilised GEL and Tubular Plate technology,

offering high reliability and stable performance.

2. The OPzS battery series is designed and manufactured according to DIN standards, with die-casted positive grid and patented active

material formula, they exceed the DIN standard values.

3. They offer 20 years design life in float service at 25"C and are more suitable for cyclic use under extreme operating conditions.

4. Suitable for power supply in telecommunication, photovoltaic wind energy storage and UPS applications.

>Specification For OPzS Battery series

Voltage Voltage Capacity Internal resistance(mm) Terminal
Type		 Dry Weight
(Kg)		 Wet Weight
(Kg)
(V) (Ah) Length Width Height Total Height
OPzS 200 2 200 103 206 355 410 F12 13 17.5
OPzS 250 2 250 124 206 355 410 F12 15 20.5
OPzS 300 2 300 145 206 355 410 F12 17.5 24
OPzS 350 2 350 124 206 471 526 F12 21 28
OPzS 420 2 420 145 206 471 526 F12 23 32
OPzS 490 2 490 166 206 471 526 F12 26.5 37.5
OPzS 600 2 600 145 206 646 701 F12 35 47
OPzS 800 2 800 191 210 646 701 F12 48 64
OPzS 1000 2 1000 233 210 646 701 F12 58 78
OPzS 1200 2 1200 275 210 646 701 F12 68 92
OPzS 1500 2 1500 275 210 796 851 F12 80 111
OPzS 2000 2 2000 397 212 772 827 F12 110 152
OPzS 2500 2 2500 487 212 772 827 F12 132 185
OPzS 3000 2 3000 576 212 772 827 F12 159 222
>Advantages

1. High expected service life

2. Long cycle stability

3. Best compatibility

4. There is no need to add water for a long time to achieve maintenance free

5. Short circuit can be prevented even during installation;

Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
>Application

1. Applications


2. Telecom


3. Security Systems


4. Medical Equipments


5. UPS systems


6. Railroad Utilities


7. Photovoltaic Systems


8. Renewable Energy System

>Structure and composition
Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS PVC-SiO2 Sulfuric acid EPDR Copper
>Production process
Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
>Workshop scene
Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge

>Competitive Advantage

1. Sealed construction,safty and no leakage;

2. Maintenance-free,convenient for installation;

3. Broad operating temperature range;

4. High capability,high energy density;

5. Low self-discharge tate,more deep cycle times;

6. Long service life,excellent recharge and discharge time than other batteries.

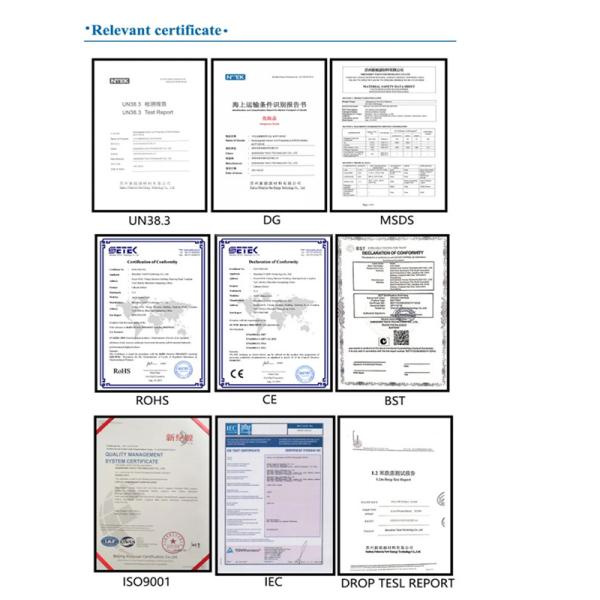

>Cerificate

Flood OPzS Lead Acid Battery 2V 300ah Longlife Low Self Discharge
