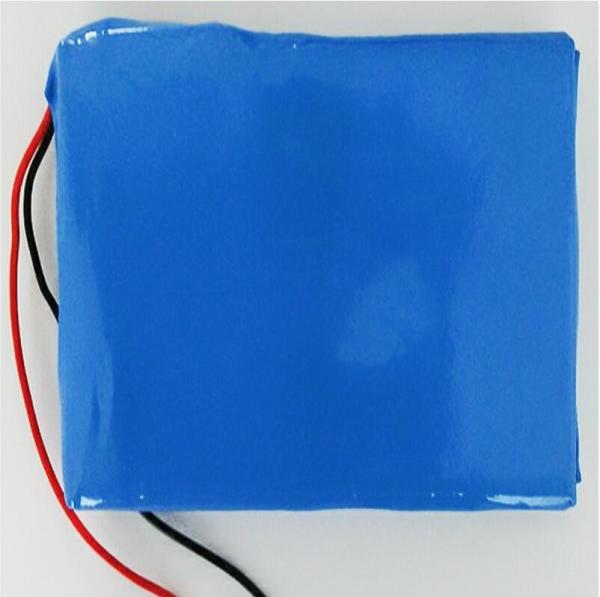

Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector
Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector
Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector
Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector
Specifications
Brand Name :
FOBERRIA
Model Number :
lithium battery 7.4V 3600mah
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Name :
Lifepo4 battery
Type :
18650/32650 Lithium battery
Accept :
Customized
Range :
Lithium battery
Application :
Flashlight，electric bike，e-scooter，UPS, Communication System，Electric Power Storage
Color :
Blue（customized）
Battery material :
Rechargeable lithium ion 18650 battery pack
Nominal voltage :
7.4V
Nominal capacity :
3600mah
Cycle life :
≥1000 Times
ODM/OEM :
Acceptable
Warranty :
3 years
Description

Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector

>Overview

Lithium ion battery have been deployed in varied places. From a small electronics battery to large energy storage and power driving batteries used in solar system, golf cart, agv, sail boat, forklift, robot, medical equipment, electric mobility, power back up and other application, lithium iron phosphate batteries are available in all shapes and sizes.

And that renders them to be the perfect option for power needs irrespective of the size of the application devices.

It has the characteristics of ultra long service life, high safety, fast charging, high temperature resistance and so on;

>Main Features

Lithium iron phosphate battery is a secondary battery, the main direction is power battery, which has great advantages over Ni-H, Ni Cd battery and lead-acid battery.

(1) High efficiency output: standard discharge for 2~ 5C, continuous high current discharge up to 10C, high efficiency output: standard discharge for 2~5C, continuous high current discharge up to 10C, instant 10C pulse discharge (10SEC) up to 20C, pulse discharge (10SEC) up to 20C ,excellent service life

(2) High safety, even if the battery internal or external damage, the battery does not burn, does not explode safety, even if the battery internal or external damage, the battery does not burn ,does not explode heat resistance is good, and can withstand 3~5C or even higher charge and discharge speed 3~5C heat resistance is good, and can withstand 3~5C or even higher charge and discharge speed.

(3) Good performance at high temperature: working environment external temperature 65°C,good performance at high temperature: working environment external at 65°C, the internal temperature will be up to 95°C, the temperature at the end of the battery discharge can reach 160°C, but the structure of the battery is safe and then no damage after discharging to zero volt

>Production details

Different series of capacity batteries: 10ah, 20ah, 30ah, 32ah,36ah ······

A variety of capacity with high circulation cycle times, long life, stable performance, etc;

Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector

Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector

The wiring terminal can be customized.

Common processing combinations of various lithium batteries can be customized.

Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector

Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector

>Model list

​
Battery Model Lithium ion Battery Pack 7.4V 3600mah
Battery meterial Rechargeable lithium ion 18650 battery pack
Nominal Voltage 7.4V
Nominal Capacity 3600mAh
Output voltage range 6~8.4V
Continuous operating current 2A
Max.discharge current 4A
Standard charging voltage 8.4V±0.05V
Standard charging current 0.72A(0.2C)
Over discharge protection voltage 6V
Over charged protection voltage 8.4V
Charging Temperature -20~60°C
Discharge Temperature 0~45°C
Lithium battery protection Short circuit protection, overcharge, overprofit protection, overcurrent protection, temperature protection, balance, etc.

Input & output port

 Other on request
Dimensions Max. T 72mm*W 52mm*L 12mm(customizable)
Weight Approx 14g
Cycle Life ≥1000 times
We can design voltage/current/capacity/size/charging circuit according to customer's special requirements to meet the personalized lithium battery pack.
>Applications
1.High-End Flashlights,

2.Portable electronics,

3.Laptop Battery Cell s,

4.Customized Battery Pack Solutions,

5 Electric vehicle, and aerospace applications

6.Solar Lawn, Remote Control

7.Electric tools,electric vehicles, toys,

8.Wind energy system,landscape energy storage,

9.Backup Power Supply, Medical Device and so on.

>Warning

To ensure proper use of the battery please read the manual carefully before using it.

Handling
1. Do not expose to, dispose of the battery in fire.

2. Do not put the battery in a charger or equipment with wrong terminals connected.

3. Avoid shorting the battery

4. Avoid excessive physical shock or vibration.

5. Do not disassemble or deform the battery.

6. Do not immerse in water

7. Do not use the battery mixed with other different make, type, or model batteries.

8. Keep out of the reach of children.

Charge and discharge
1. Battery must be charged in appropriate charger only.

2. Never use a modified or damaged charger.

3. Do not leave battery in charger over 24 hours.

Storage
1. Store the battery in a cool, dry and well-ventilated area.

2. Disposal
Regulations vary for different countries. Dispose of in accordance with local regulations.

>Packing & Shipping
Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector

Lifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And ConnectorLifepo4 lithium ion battery rechargeble 7.4V 3600mah With PCM And Connector
