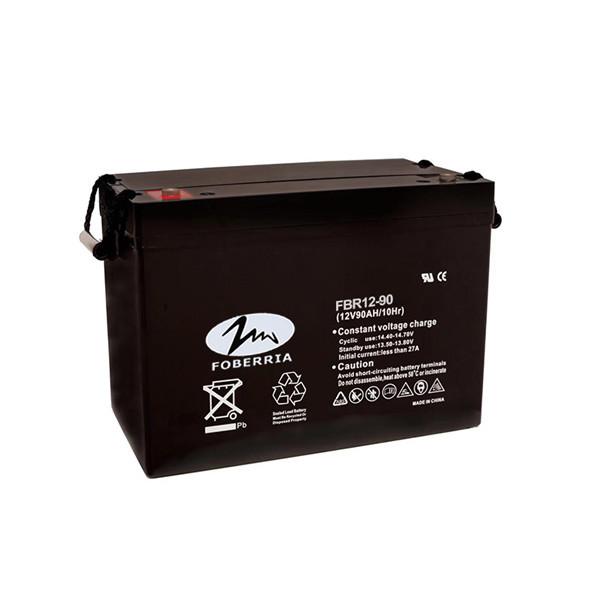

F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
Specifications
Brand Name :
FOBERRIA
Model Number :
FBR12-90
Certification :
CE / ISO9001
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Product Name :
UPS battery
Number :
FBR12-90
Nominal Voltage :
12V
Capacity :
90AH
Reusability :
Rechargeable
Terminal :
F14
Dimension :
306*169*211mm
Weight :
27kg
Color :
Customized
Feature :
Low Self Discharge
Apply :
UPS,Solar system，Electric Power Systems
Description

Stable quality Sealed vrla 12v 90ah UPS lead acid battery for solar system

>Summary

1.Why UPS use lead-acid batteries?

The reason why lead acid batteries are preferred for UPS applications is the lower cost and relatively lower-tech battery

management requirements.

Lead acid battery performance degrades for several reasons. In an uninterruptible power supply,

the battery set is used in a standby power application.

2.How long do UPS lead-acid batteries last?

UPS batteries (traditional sealed lead-acid batteries) tend to have either a 5-years or 10-years design life.

Some may last for 10-15 years.

Yet performance will significantly reduce overtime to a degree where it is not safe to use in a UPS system.

So you should figure out its service life instead of design life.

> Specification
Battery Model No. FBR12V90Ah
Nominal Voltage 12V
Capacity 20HR(5.25V) 90Ah
(25ºC) 10HR(5.25V) 79Ah
1HR(4.80V) 55.6Ah
Dimension Length 306±2mm
Width 169±2mm
Height 211±2mm
Total height 214±2mm
Approx. Weight 27kg±4%
Terminal type F14
Internal resistance Approx 5mΩ
(Fully charged,25ºC)
Capacity affected by 40ºC 102%
Temperature(20HR) 25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge(25ºC) 3month Remaining Capacity:91%
6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage
(25ºC)		 13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage
(25ºC)		 14.5 to 15V
Temperature compensation:-30mV/ºC
Max charging current 27A
Max discharging current 800A(5sec.)
Designed floating life(20ºC) 10years
> Structure and composition
Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper
F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
> Constant Current Discharge Characteristics(A,25ºC)
F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 262 202 121 74.2 43.8 31.2 25.2 21.5 14.8 12.2 6.47
9.9V 254 197 118 73 43.6 31 25.1 21.4 14.7 12.2 6.46
10.2V 243 190 115 71.2 43.2 30.8 24.9 21.3 14.6 12.2 6.44
10.5V 233 183 112 69.7 42.6 30.6 24.7 21.1 14.5 12.1 6.4
10.8V 220 173 108 67.6 41.5 29.7 24 20.5 14.1 12 6.36

> Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 2825 2214 1353 845 508 367 297 255 176 146 77.7
9.90V 2741 2160 1326 833 505 365 295 253 175 146 77.5
10.2V 2628 2081 1285 812 500 362 293 251 174 145 77.3
10.5V 2514 2010 1254 795 493 360 291 250 172 144 76.9
10.8V 2373 1904 1208 770 480 349 282 242 167 143 76.3
> Discharge diagram
F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
>Application

1.Solar and wind energy storage system;

2.EPS and UPS battery backup;

3.Signal system , emergency lighting system , security system;

4.Telecommunication Equipment;

5.Power source for portable devices or tools.
6.Industrial generating system, remote control system, telecom system
>Production process
F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
>Workshop scene
F14 Terminal Sealed Vrla 12v90ah UPS Battery Lead Acid 306*169*211mm
>FAQ
Q1: How to choose the right battery?
A1: Tell us your demand, Then our sales staff will recommend a suitable battery for you.

Q2. Do you have any MOQ limit?
A2: Yes, we have MOQ for mass production, It depends on the model. 50-500pcs sample order is available. for sample checking is available.

Q3. Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5:. What certificate your company have?
A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.

Q6.What is your warranty time for VRLA battery ?
A6: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.

Q7. Why battery has different capacity at different hour rate?
A7: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.

Q8. Are you a battery manufacturer, and do you produce the plate by yourself ?
A8: Yes, we are a professional battery manufacture in Fujian Province, China. And we produce plates by ourselves.

Q9. How to proceed with an order?
A9. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.

Q10: How about the delivery time?
A10: About 7 days for stock products, around 20 days for half container products, 20 foot container products for 30 days.
