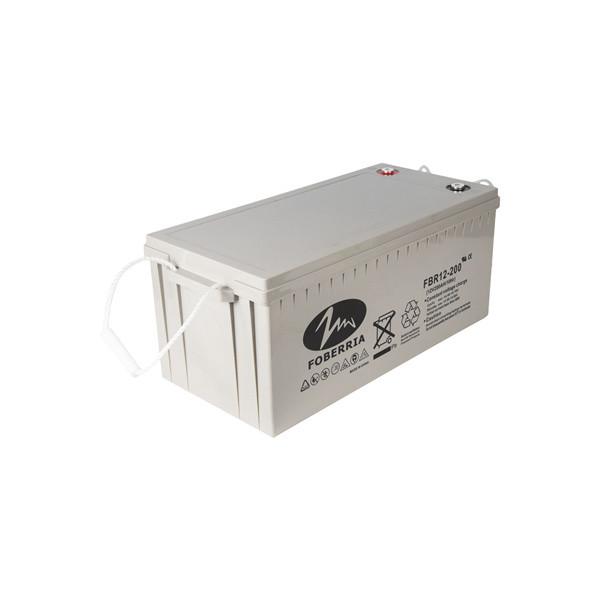

ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
Specifications
Brand Name :
FOBERRIA
Model Number :
FBR12-200
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Product Name :
Sealed Lead Acid batteries
Model :
FBR12-200
Voltage :
12V
Capacity :
200AH
Box Material :
ABS
Apply :
Solar system
Description

Maintenance-free 12V 200ah Sealed Lead Acid Battery Solar Cell For Solar System

>Main Features

1. Maintenance free sealed lead acid battery

As it is valve-regulated sealed lead acid battery.sealed and glass mat is used .acid is trapped inside. so refilling is not needed and is

leak proof.

2. Low self discharge

The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room .temperature compared with 20-30%

for other common battery systems.

3. Longer service life

Used thick and massive calcium grate ensure that FOBERRIA battery has a longer service life over 10years.

4. High discharge rate

Since the internal resistance is low .the battery can provide high rate of discharge.

>Specification
Battery Model No. FBR12V200Ah
Nominal Voltage 12V
Capacity 20HR(5.25V) 200Ah
(25ºC) 10HR(5.25V) 176Ah
1HR(4.80V) 124Ah
Dimension Length 522±2mm
Width 238±2mm
Height 218±2mm
Total height 221±2mm
Approx. Weight 59.5kg±4%
Terminal type F13
Internal resistance Approx 3.5mΩ
(Fully charged,25ºC)
Capacity affected by 40ºC 102%
temperature(20HR) 25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge 3month Remaining Capacity:91%
(25ºC) 6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage 13.5 to 13.8V
(25ºC) Temperature compensation:-18mV/ºC
Cyclic charging voltage 14.5 to 15V
(25ºC) Temperature compensation:-30mV/ºC
Max charging current 60A
Max discharging current 1600A(5sec.)
Designed floating life(20ºC) 10years
>Structure and composition
Component Pos. plate Neg. plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper
ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
>Application

1.Solar power system(off-grid solar power system, solar street light system, solar garden light system);

2.Wind Power System;

3. UPS and computer backup power;

4. telecommunication system;

5. Power station System;

6. Emergency lighting system;

7. Alarm system for fire protection, security.

ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
>Constant Current Discharge Characteristics(A,25ºC)
F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 436 336 201 124 73.1 52 42 35.9 24.7 20.4 10.8
9.9V 423 328 197 122 72.6 51.7 41.8 35.7 24.5 20.3 10.8
10.2V 405 316 191 119 72 51.4 41.5 35.4 24.4 20.3 10.7
10.5V 388 305 186 116 70.9 51 41.2 35.2 24.2 20.1 10.7
10.8V 366 289 179 113 69.1 49.5 41 34.1 23.5 20 10.6

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 4709 3689 2255 1409 846 612 494 424 293 243 129
9.90V 4568 3601 2210 1388 841 608 491 422 292 243 129
10.2V 4379 2468 2142 1353 834 604 488 419 290 242 129
10.5V 4191 3350 2091 1324 821 600 485 416 287 240 128
10.8V 3955 3173 2014 1284 800 582 470 404 279 239 127
>Discharge diagram
ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
>Assembling
ABS BOX 200ah Lead Acid Sealed Battery 12v for Solar system
