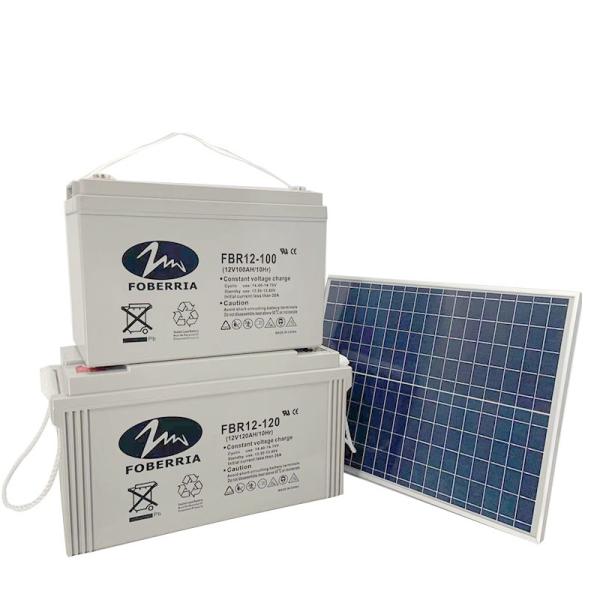

F13 Sla Sealed Lead Acid Battery 12V 100ah Lead Acid Batteries For Solar Storage
F13 Sla Sealed Lead Acid Battery 12V 100ah Lead Acid Batteries For Solar Storage
F13 Sla Sealed Lead Acid Battery 12V 100ah Lead Acid Batteries For Solar Storage
F13 Sla Sealed Lead Acid Battery 12V 100ah Lead Acid Batteries For Solar Storage
Specifications
Brand Name :
FOBERRIA
Model Number :
FDC12-100
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Product Name :
lead acid battery
Model :
FBR12-100
Nominal Voltage :
12V
Capacity :
100AH
Terminal :
F13
Dimension :
306*169*214mm
Weight :
26.5kg
Battery Cell :
Sealed Lead Acid
Guarantee :
3Years
Reusability :
Rechargeable
Application :
Solar Energy System
Description

F13 Sla Sealed Lead Acid Battery 12V 100ah Lead Acid Batteries For Solar Storage

>Specification

Battery Model No. FBR12-100
Nominal Voltage 12V
Capacity
(25ºC)		 20HR(5.25V) 100Ah
10HR(5.25V) 76Ah
1HR(4.80V) 60.9Ah
Dimension Length 330±2mm
Width 171±2mm
Height 214±2mm
Total height 220±2mm
Approx. Weight 29.5kg±4%
Terminal type F14
Internal resistance
(Fully charged,25ºC)		 Approx 4.5mΩ
Capacity affected by
temperature(20HR)		 40ºC 102%
25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge
(25ºC)		 3month Remaining Capacity:91%
6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating
temperature range		 Discharge -15ºC-50ºC(5ºF-122ºF)
Charge -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage
(25ºC)		 13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage
(25ºC)		 14.5 to 15V
Temperature compensation:-30mV/ºC
Max charging current 30A
Max discharging current 800A(5sec.)
Designed floating life(20ºC) 10years
>Structure and composition
F13 Sla Sealed Lead Acid Battery 12V 100ah Lead Acid Batteries For Solar Storage

>Characteristics

1. SAFETY

No acid leakage, safe and reliable;

2. VENT SYSTEM

Pressure relief valve will be active to release gas when battery is over-charged.

3. MAINTENANCE FREE

Inner compound system for the water supplement

4. NO FREE ACID

Absorbed by AGM, there is no free acid inside, batteries can be installed in all angles.

5. EXPLOSION PROOF

Safety valve and explosion- proof switch;

6. LONG LIFE

With corrosion-resistant PB-CA alloy,batteries can serve much longer.

>Application

It is widely used in communication equipment, aviation signal, railway signal,alarm and safety system,

instrument and instrument system,solar energy systems, marine and RV etc.

F13 Sla Sealed Lead Acid Battery 12V 100ah Lead Acid Batteries For Solar Storage
>Constant Current Discharge Characteristics(A,25ºC)
F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 218 167 101 60.7 36.4 25.9 21.0 18.0 12.3 10.2 5.39
9.9V 211 163 98 60.6 36.2 25.8 20.8 17.8 12.2 10.1 5.37
10.2V 202 158 95 59.2 35.9 25.7 20.6 17.7 12.1 10.0 5.36
10.5V 194 153 93 58.0 35.4 25.5 20.5 17.6 12.0 10.0 5.33
10.8V 182 143 89.5 56.1 34.5 24.6 20.0 17.1 11.9 9.9 5.30

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 2347 1840 1125 703 422 305 246 212 146 121.6 64.5
9.90V 2278 1796 1102 693 420 303 245 211 145 120.7 64.4
10.2V 2185 1730 1069 675 416 301 243 208 144 120.2 64.3
10.5V 2090 1671 1042 660 410 299 241 207 143 119.7 64.2
10.8V 1973 1582 1004 640 399 291 235 201 139 118.9 63.5

>Workshop scene
F13 Sla Sealed Lead Acid Battery 12V 100ah Lead Acid Batteries For Solar Storage
>FAQ
Q1: How to choose the right battery?

A1: Tell us your demand, then our sales will recommend a suitable battery for you.

Q2: Do you have any MOQ limit?

A2: Yes, we have MOQ for mass production, it depends on the different model numbers.
50-500pcs sample order is available. for sample checking is available.

Q3: Is it OK to print my logo on the product?

A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: How to solve the technical problem?

A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Q5: What certificate your company have?

A5: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.

Q6: What is your warranty time for VRLA battery ?

A6: It depends on battery capacity, depth of discharge, and battery usage.
Please kindly contact us for accurate information based on detailed requirements.
