Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage
Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage
Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage
Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage
Specifications
Brand Name :
FOBERRIA
Model Number :
FBR12V
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Product Name :
Solar Lead Acid Battery
Model :
FBR12V
Volts :
12V
Capacity :
65AH-250AH
Terminal type :
F13
Battery Type :
Sealed Rechargeable Battery
Discharge :
Low Self Discharge
Application :
Solar system
Description

Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage

Our ultra premium Sealed Maintenance Free batteries are ready to start working as soon as it’s installed. Its highly capacity, safe and convenient.

Our VRLA GEL Deep Cycle Maintenance Free Lead acid battery is ready to install direct from the factory floor and with no need to maintain the battery, you are left with peace of mind.

>Main Features

Lead acid battery are the most common form for solar battery storage currently on the market.

Battle-tested, thousands of the world's people have used large of lead-acid batteries with solar electricity to remove their need to be

connected to the traditional electricity grid.

The most common setup of lead acid batteries you'll see is usually some kind of rural household installing a bank of batteries + solar panels,

because it's cheaper than paying $30,000 to get the grid extended all the way to their house.

However, some people who have normal access to the grid still elect to go off-grid with a big bank of lead acid batteries.

>Specification
Battery Model No. FBR12V
Nominal Voltage 12V
Capacity 20HR(5.25V) 120Ah
(25ºC) 10HR(5.25V) 105Ah
Terminal type F13
Internal resistance Approx 4mΩ
(Fully charged,25ºC)
Capacity affected by 40ºC 102%
Temperature(20HR) 25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge(25ºC) 3month Remaining Capacity:91%
6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage
(25ºC)		 13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage
(25ºC)		 14.5 to 15V
Temperature compensation:-30mV/ºC
Max charging current 36A
Max discharging current 960A(5sec.)
Designed floating life(20ºC) 10years
>Structure and composition
Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper
Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage
>Discharge diagram
Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage
Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage
>Application

1. Solar and wind energy storage system;

2. EPS and UPS battery backup;

3. Signal system , emergency lighting system , security system;

4. Telecommunication Equipment;

5. Power source for portable devices or tools.
Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage

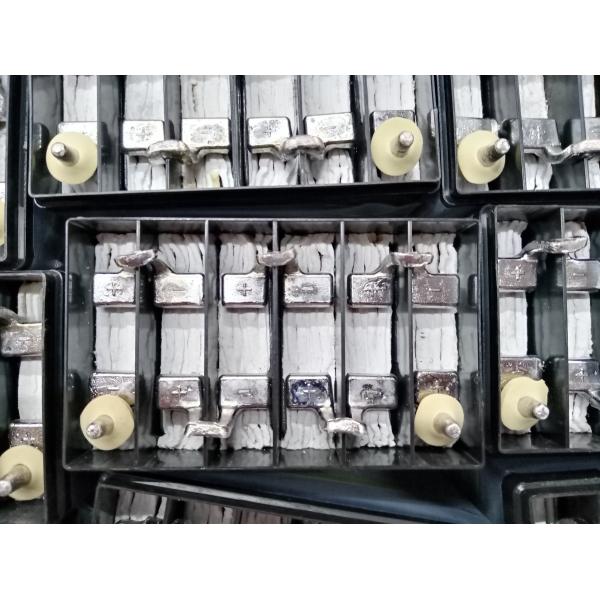

>Workshop scene
Lead acid battery High capacity 12V120ah Gel Solar Battery Deep Cycle Lead Acid Batteries For Solar Storage
