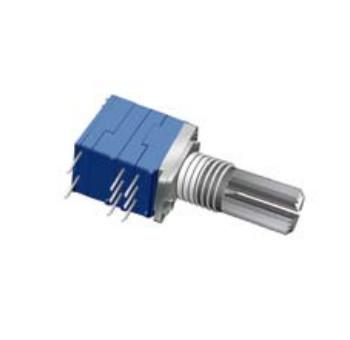

9mm rotary potentiometer with switch,interphone potentiometer, carbon potentiometer, trimmer potentiometer
9mm rotary potentiometer with switch,interphone potentiometer, carbon potentiometer, trimmer potentiometer
9mm rotary potentiometer with switch,interphone potentiometer, carbon potentiometer, trimmer potentiometer
9mm rotary potentiometer with switch,interphone potentiometer, carbon potentiometer, trimmer potentiometer
Specifications
Brand Name :
OEM is accepted
Model Number :
WH9011AK-2-18T
Place of Origin :
China
MOQ :
100units
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
within one week
Packaging Details :
carton
Main color :
Blue
Shaft material :
Metal
Description

Model: WH9011AK-2-18T

Technical Specification:

Electrical Characteristics:

Tolerance of resistance ±20%

Insulation resistance ＞100MΩ At 300V DC

Load power 0.05W

Withstanding Voltage ＞AC250V 1 minute

Rated voltage 50V /AC

Rotational noise ≤47mv

Tracking error 0~-40dB±3dB

Switch contact resistance 0.05Ω

Switch power DC16V 1A

Residual resistance R1,2<10Ω ; R2,3<10Ω

Mechanical Characteristics:

Dimensions refer to product drawing

Total rotation angle 300 ±5º

Rotation torque 20~200gf.com

Switch working angle ≤50°

Switch torque 50~300gf.cm

Shaft Stopper Strength 4Kgf/cm min

Mechanical endurance 10000 turns min

Durability Characteristics

Storage Temperature Range -30°C~+80°C

Operation Temperature Range -20°C~+70°C

Soldering Heat Characteristic 260°C/2.5±0.5s

Optional Shaft Type:
