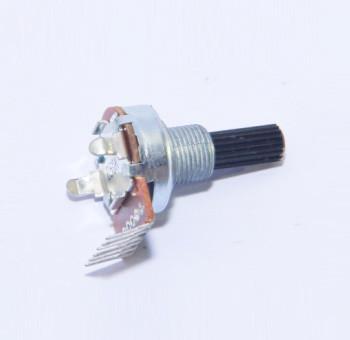

rotary potentiometer, carbon potentiometer, 17mm potentiometer with insulated shaft,
rotary potentiometer, carbon potentiometer, 17mm potentiometer with insulated shaft,
rotary potentiometer, carbon potentiometer, 17mm potentiometer with insulated shaft,
rotary potentiometer, carbon potentiometer, 17mm potentiometer with insulated shaft,
Specifications
Brand Name :
OEM is accepted
Model Number :
WH0172-1A-18T
Place of Origin :
China
MOQ :
100units
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
within one week
Packaging Details :
carton
Main Material :
Plastic
Pricing :
cost effective
Description

Model: WH0172-1A-18T

Technical Specification:

Electrical Characteristics:

Tolerance of resistance ±20%

Insulation resistance ＞100MΩ At 250V DC

Power Rating 0.1W

Withstanding Voltage ＞AC250V 1 minute

Rated voltage 50V /AC

Rotational noise ≤47mv

Tracking error 0~-40dB+3dB

Residual resistance R1,2<10Ω ; R2,3<10Ω

Mechanical Characteristics:

Dimensions refer to product drawing

Total rotation angle 300 ±5º

Shaft Stopper Strength 3Kgf/cm min

Rotation torque 20~200gf.cm

Mechanical endurance 10000 turns min

Shaft Wobble ≤0.3mm

Shaft Push&Pull strength 3kgf min.

Durability Characteristics

Storage Temperature Range -30°C~+80°C

Operation Temperature Range -20°C~+70°C

Soldering Heat Characteristic 260°C/2.5±0.5s

Optional shaft type:
