16mm rotray potentiometer, potentiometer with metal shaft, carbon potentiometer, guitar potentiometer
16mm rotray potentiometer, potentiometer with metal shaft, carbon potentiometer, guitar potentiometer
16mm rotray potentiometer, potentiometer with metal shaft, carbon potentiometer, guitar potentiometer
16mm rotray potentiometer, potentiometer with metal shaft, carbon potentiometer, guitar potentiometer
Specifications
Brand Name :
OEM/ODM is accepted
Model Number :
WH148-1A-2-18T
Certification :
RoHS
Place of Origin :
China
MOQ :
100units
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
within one week
Packaging Details :
carton
Shaft material :
Metal
Description

Model: WH148-1A-2-18T

Technical Specification:

Electrical Characteristics:

Tolerance of resistance ±20%

Insulation resistance ＞100MΩ At 200V DC

Power Rating 0.05W

Withstanding Voltage ＞AC250V 1 minute

Rated voltage 50V /AC 30V /DC

Rotational noise ≤47mv

Operating force 20~200gf.cm

Residual resistance R1,2<10Ω ; R2,3<10Ω

Mechanical Characteristics:

Dimensions refer to product drawing

Total rotation angle 300 ±5º

Rotation torque 10~50gf.com

Shaft Stopper Strength 6Kgf/cm min

Mechanical endurance 10000 turns min

Durability Characteristics

Storage Temperature Range -30°C~+80°C

Operation Temperature Range -20°C~+70°C

Soldering Heat Characteristic 260°C/2.5±0.5s

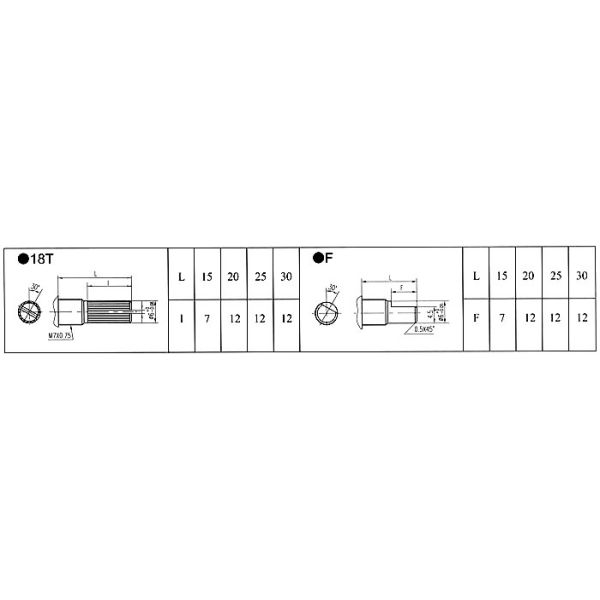

Shaft type:

16mm rotray potentiometer, potentiometer with metal shaft, carbon potentiometer, guitar potentiometer
